Fox Factory Factory Race Series 3.0 Internal Bypass Rear Shocks Polaris RZR Pro R 4 2022-2023

Name: Fox Factory Factory Race Series 3.0 Internal Bypass Rear Shocks Polaris RZR Pro R 4 2022-2023
Brand: Fox Factory
SKU: 10438881
Price: 3299.99 USD
Availability: InStock

Write a Review

Fullscreen Zoom

$3,299^.⁹⁹

Members get up to $180.00 in total value. Join Now

Ships Free to Cycle Gear Stores!

The Cycle Gear Difference

Free Shipping Over $49^.⁹⁹
30-Day Best Price Guaranteed
No-Hassle Returns View Details

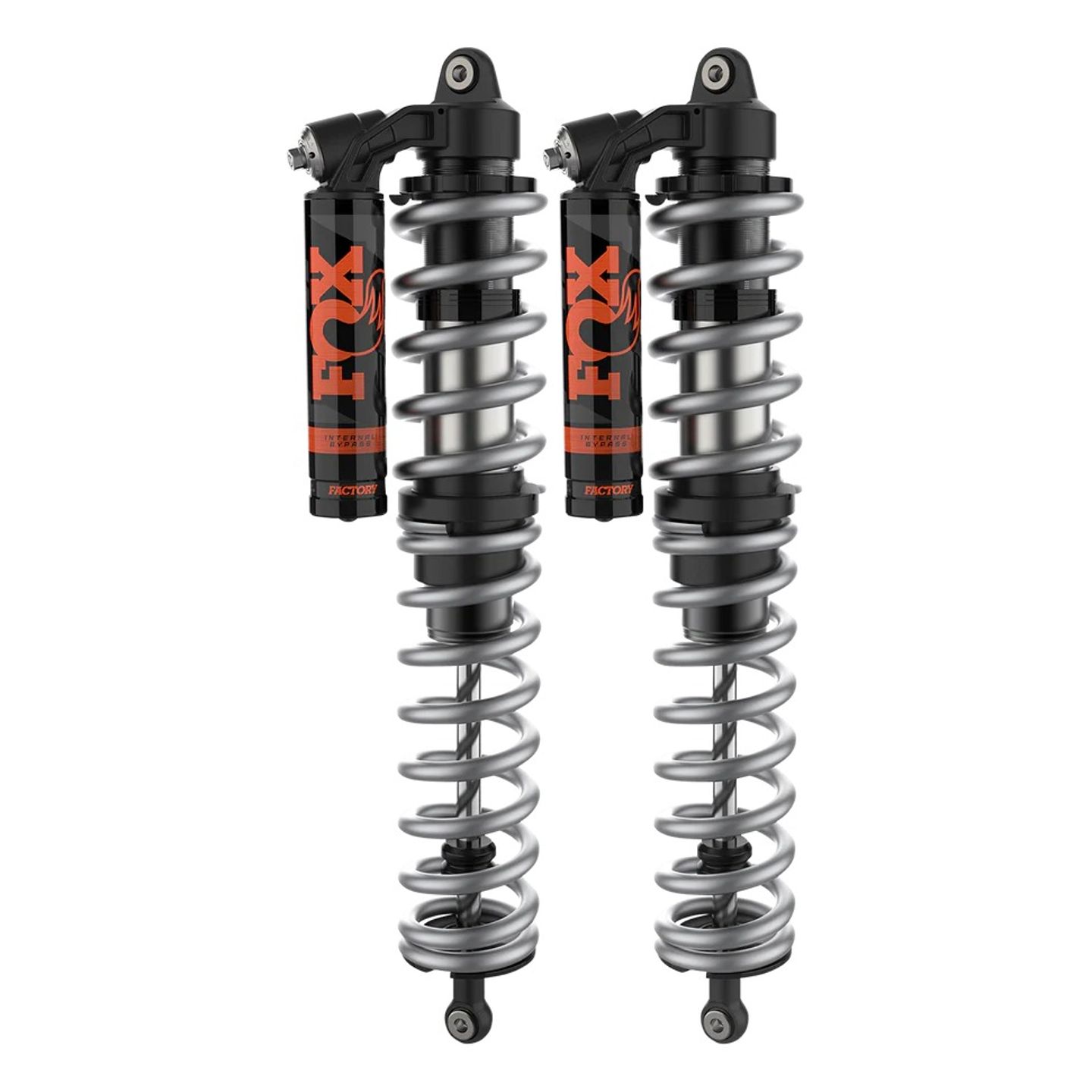

Fox Factory Factory Race Series 3.0 Internal Bypass Rear Shocks Polaris RZR Pro R 4

Fox Factory has engineered a race-derived, position-sensitive damping solution, directly transferable to UTVs and Side-by-Sides, directly from the world of high-performance trophy trucks. This advancement allows for a bolt-on replacement that enhances shock absorption capabilities. An upsized shock bore diameter promotes consistent performance by mitigating shock fade, and the velocity-sensitive damping delivers added resistance upon continuous impacts. The utilization of lightweight aluminum in the shock bodies and reservoirs ensures that performance gains aren't burdened by excessive weight. For riders looking to fine-tune their suspension, the product features independent adjusters for high- and low-speed compression, extensive-range rebound modification, and an adjustable dual-rate spring package with crossover rings for optimal performance adjustment. Fox's proprietary Internal Bypass technology (IBP) furnishes variable damping control that adapts to the piston's position within the shock. It offers gentler damping mid-stroke for a smoother ride over varied terrain while increasing resistance substantially at full compression to prevent bottoming out during aggressive runs. Additionally, as the shock extends, the damping intensifies at the top end, safeguarding against potential damage from spring energy release.

Features:

Position-sensitive internal bypass damping tubes
Velocity-sensitive valved, high flow damping piston
Piggyback reservoir or Remote reservoir
Silver dual rate race springs with crossover
7/8” hard-chromed induction-hardened shaft
PTFE-lined spherical bearings for smooth, durable movement
Type III hard-anodized aluminum body and reservoir
Sold as a pair

Adjustments/Technical Information:

Spring preload
Dual-Speed Compression (DSC)
Wide-range rebound
Spring crossover
Extended: 42.40
Compressed: 26.90
Travel: 15.50
Top Mount: Eyelet
Bottom Mount: Eyelet
Reservoir: Piggyback

Note: Images are for reference, actual product may vary based on application
