Fox Factory Factory Race Series 3.0 Internal Bypass Rear Shocks Polaris RZR Pro R 2022-2023

Name: Fox Factory Factory Race Series 3.0 Internal Bypass Rear Shocks Polaris RZR Pro R 2022-2023
Brand: Fox Factory
SKU: 10438880
Price: 3299.99 USD
Availability: InStock

Write a Review

Fullscreen Zoom

$3,299^.⁹⁹

Members get up to $180.00 in total value. Join Now

Ships Free to Cycle Gear Stores!

The Cycle Gear Difference

Free Shipping Over $49^.⁹⁹
30-Day Best Price Guaranteed
No-Hassle Returns View Details

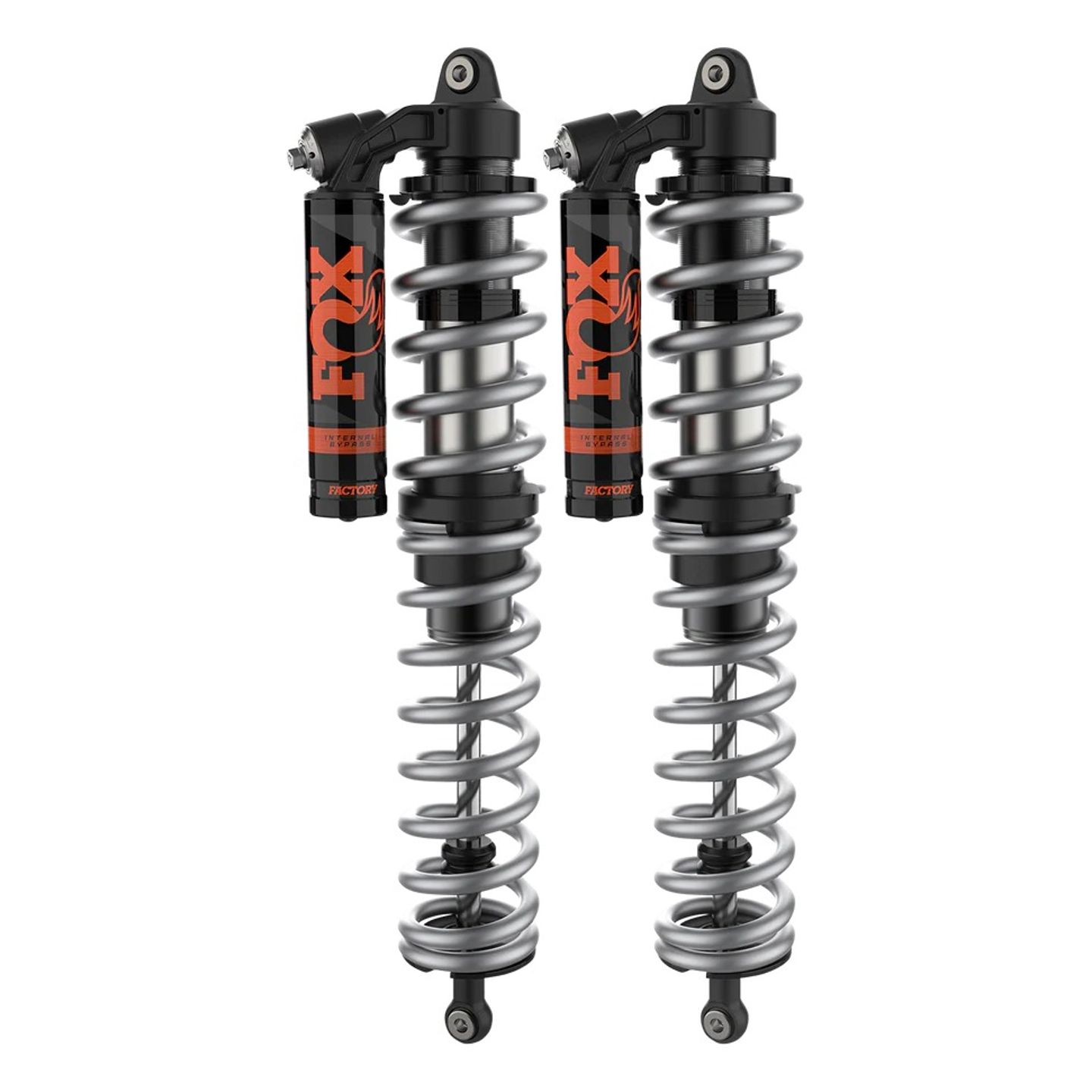

Fox Factory Factory Race Series 3.0 Internal Bypass Rear Shocks Polaris RZR Pro R

The Fox Factory has crafted a state-of-the-art solution for UTV / Side-by-Side vehicles by transplanting position-sensitive damping technology from championship-level trophy trucks to a direct bolt-on replacement shock. This upgraded shock offers an increase in bore diameter to enhance resistance against fading and employs velocity-sensitive damping to provide an extra layer of force during repetitive impacts. The product's construction boasts lightweight aluminum bodies and reservoirs, allowing for reduced weight without compromising durability and performance. For those aiming to fine-tune their suspension settings, the product features independent high- and low-speed compression adjusters, wide-range rebound adjusters, and a true dual-rate spring package complemented by adjustable crossover rings, all designed to refine the ride for peak performance. At the core of the product's technological advancements lies FOX’s proprietary Internal Bypass technology (IBP), which delivers variable damping control contingent on the piston's position within the shock. This inventive design promises a gentler damping effect in the middle stroke for smoothing out uneven terrain, while markedly increasing damping at the extremes to resist bottoming out at high speeds and to mitigate potential damage from topping out.

Features:

Position-sensitive internal bypass damping tubes
Velocity-sensitive valved, high flow damping piston
Piggyback reservoir or Remote reservoir
Silver dual rate race springs with crossover
7/8” hard-chromed induction-hardened shaft
PTFE-lined spherical bearings for smooth, durable movement
Type III hard-anodized aluminum body and reservoir
Sold as a pair

Adjustments/Technical Information:

Spring preload
Dual-Speed Compression (DSC)
Wide-range rebound
Spring crossover
Extended: 42.40
Compressed: 26.90
Travel: 15.50
Top Mount: Eyelet
Bottom Mount: Eyelet
Reservoir: Piggyback

Note: Images are for reference, actual product may vary based on application
