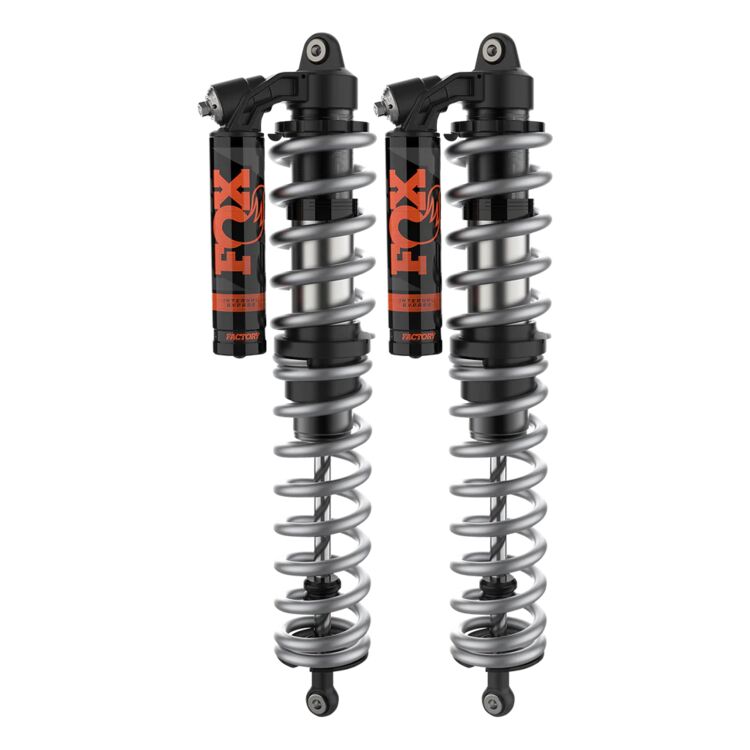

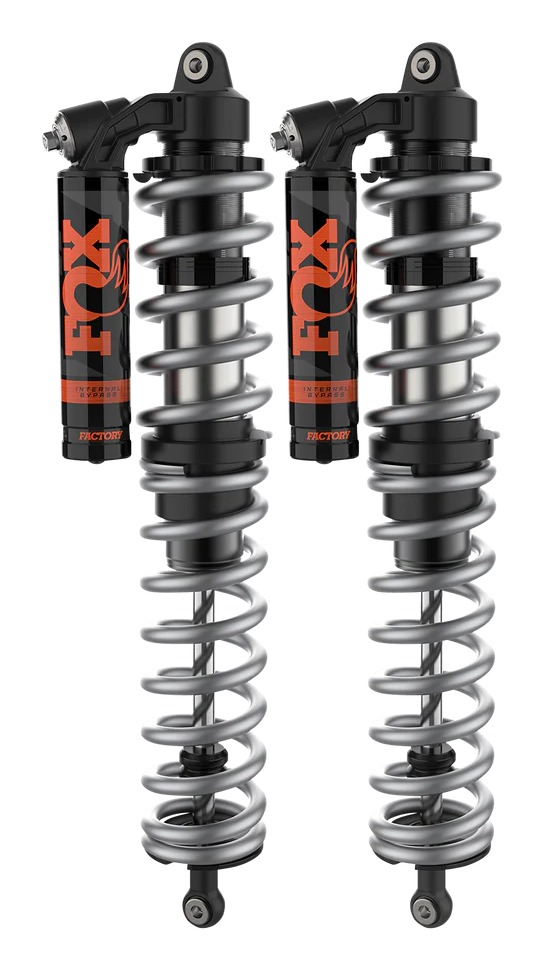

Fox Factory Factory Race Series 3.0 Internal Bypass Rear Shocks Honda Talon 1000R-4 2023-2024

Fox Factory Factory Race Series 3.0 Internal Bypass Rear Shocks Honda Talon 1000R-4

Fox Factory introduces a cutting-edge suspension upgrade tailored for UTV / Side-by-Side vehicles, bringing trophy truck caliber position-sensitive damping technology into a direct bolt-on replacement solution. The enhanced shock bore diameter is designed to minimize fading, while velocity-sensitive damping introduces additional resistance for continuous impacts, ensuring consistent performance. The product features lightweight aluminum bodies and reservoirs, helping to reduce overall vehicle weight without compromising on durability or capability. Suspension customization is at the rider's fingertips with independent high- and low-speed compression adjusters, a broad range of rebound adjusters, and a true dual-rate spring package with adjustable crossover rings for optimal setup and peak performance. Fox's patented Internal Bypass technology (IBP) offers nuanced damping control dependent on the piston's position within the shock. As the piston moves through the middle stroke, the damping remains suppler, effectively absorbing uneven terrain while managing body roll. During full compression at the bottom of the shock, the damping intensifies to prevent bottoming out on large obstacles at high speeds. Moreover, at the point of extension when the piston nears the top of the shock, the damping increases to diminish potential damage from topping out. This technology affords a nuanced ride experience, providing stability and comfort across varying terrains.

Features:

• Position-sensitive internal bypass damping tubes
• Velocity-sensitive valved, high flow damping piston
• Piggyback reservoir or Remote reservoir
• Silver dual rate race springs with crossover
• 7/8” hard-chromed induction-hardened shaft
• PTFE-lined spherical bearings for smooth, durable movement
• Type III hard-anodized aluminum body and reservoir
• Sold as a pair

Adjustments/Technical Information:

• Spring preload
• Dual-Speed Compression (DSC)
• Wide-range rebound
• Spring crossover
• Extended: 32.20
• Compressed: 21.40
• Travel: 10.80
• Top Mount: Eyelet
• Bottom Mount: Eyelet
• Reservoir: Piggyback

Note: Images are for reference, actual product may vary based on application
