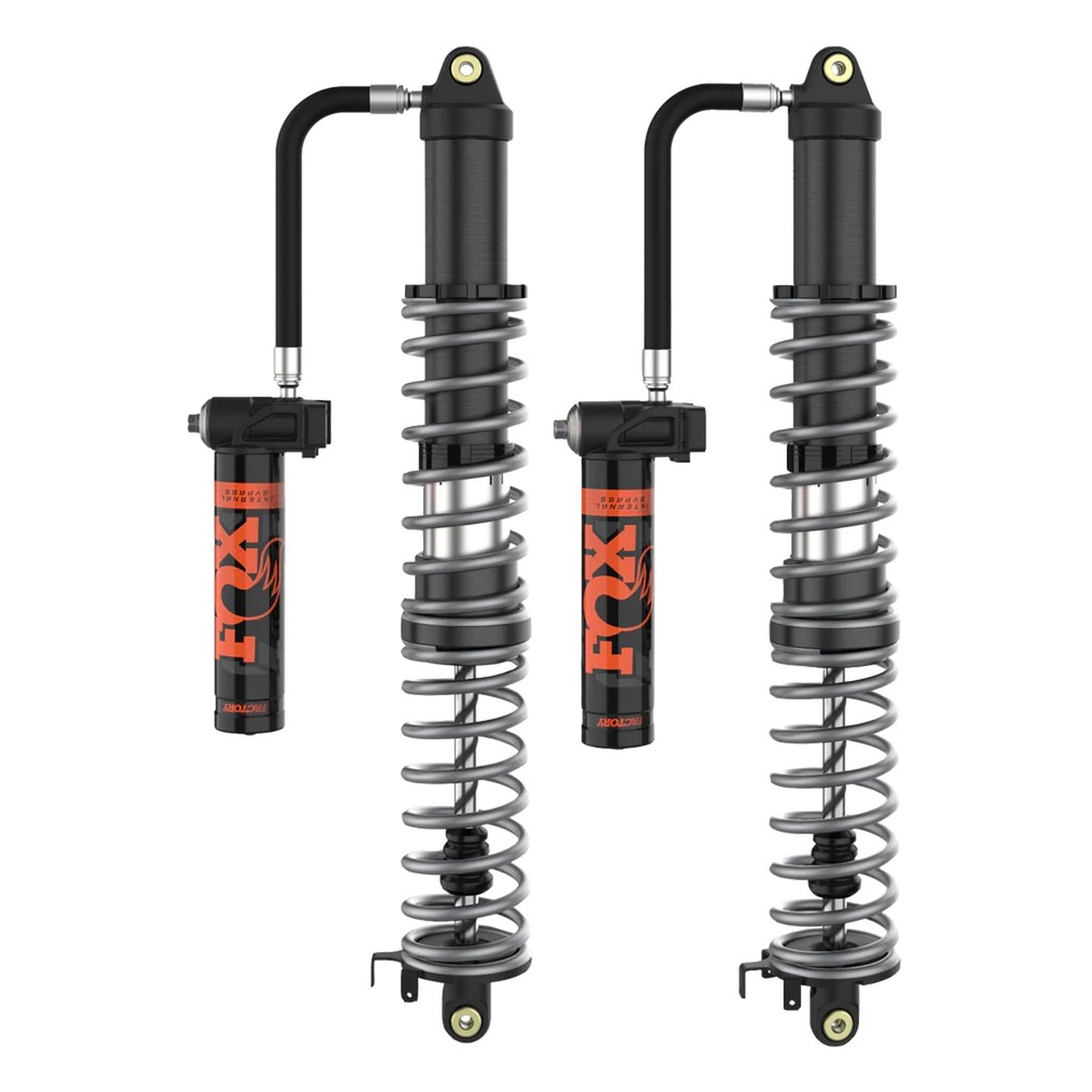

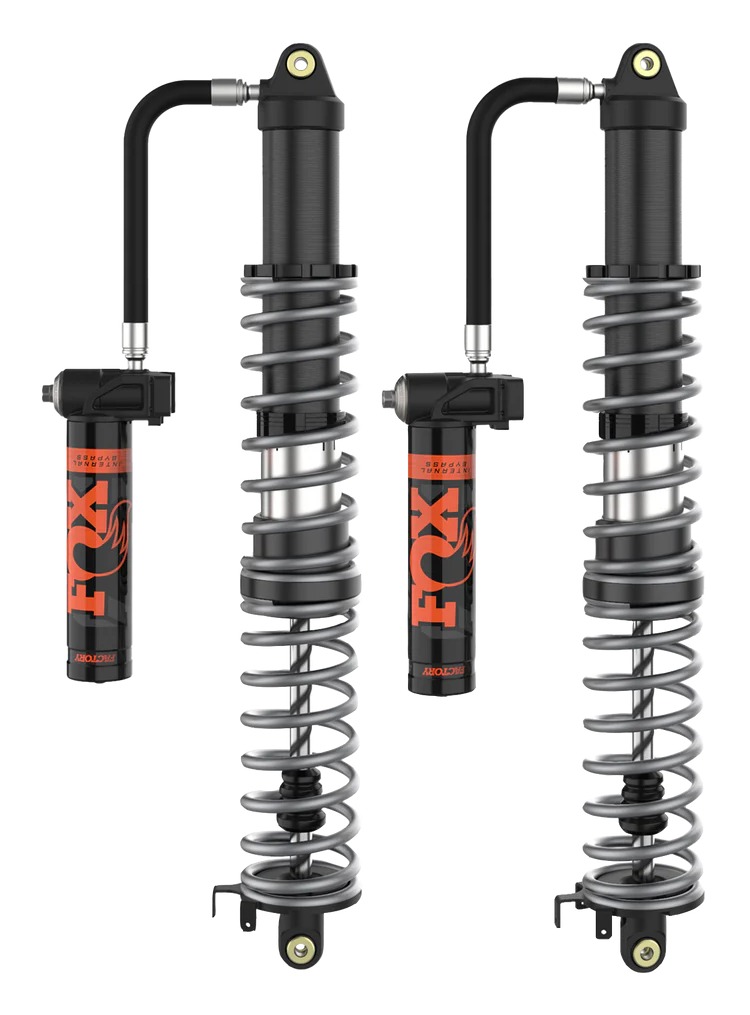

Fox Factory Factory Race Series 3.0 Internal Bypass Rear Shocks Polaris RZR XP 1000 / Turbo 2014-2021

Fox Factory Factory Race Series 3.0 Internal Bypass Rear Shocks Polaris RZR XP 1000 / XP Turbo

Experience cutting-edge suspension technology with Fox Factory's position-sensitive damping system, designed specifically for UTV/Side-by-Side vehicles. This system, inspired by innovations in the trophy truck domain, is a direct bolt-on replacement, set to elevate the capabilities of your vehicle. With an enlarged shock bore diameter, the shocks are more resilient against fading and adept at handling sustained impacts, thanks to the velocity-sensitive damping that furnishes added resistance. The product utilizes lightweight aluminum for both the bodies and reservoirs in its construction, ensuring that performance remains uncompromised even as the overall weight is reduced. Fine-tuning your suspension to perfection is simplified with the provision of independent high- and low-speed compression adjusters, wide-range rebound adjusters, and a precision dual-rate spring package with adjustable crossover rings. The patented Internal Bypass technology (IBP) by Fox offers unparalleled damping variation contingent upon the piston's position within the shock. This advanced mechanism affords lighter damping amidst the stroke to smooth out uneven terrain and control body roll, while intensifying damping at full compression to prevent bottoming out on large obstacles. Similarly, increased damping at full extension safeguards against potential damage from the springs topping out. With this state-of-the-art shock system, your ride is poised for optimized performance across all terrains.

Features:

• Position-sensitive internal bypass damping tubes
• Velocity-sensitive valved, high flow damping piston
• Piggyback reservoir or Remote reservoir
• Silver dual rate race springs with crossover
• 7/8” hard-chromed induction-hardened shaft
• PTFE-lined spherical bearings for smooth, durable movement
• Type III hard-anodized aluminum body and reservoir
• Sold as a pair

Adjustments/Technical Information:

• Spring preload
• Dual-Speed Compression (DSC)
• Wide-range rebound
• Spring crossover
• Extended: 34.30
• Compressed: 22.10
• Travel: 12.20
• Top Mount: Eyelet
• Bottom Mount: Eyelet
• Reservoir: Remote

Note: Images are for reference, actual product may vary based on application
