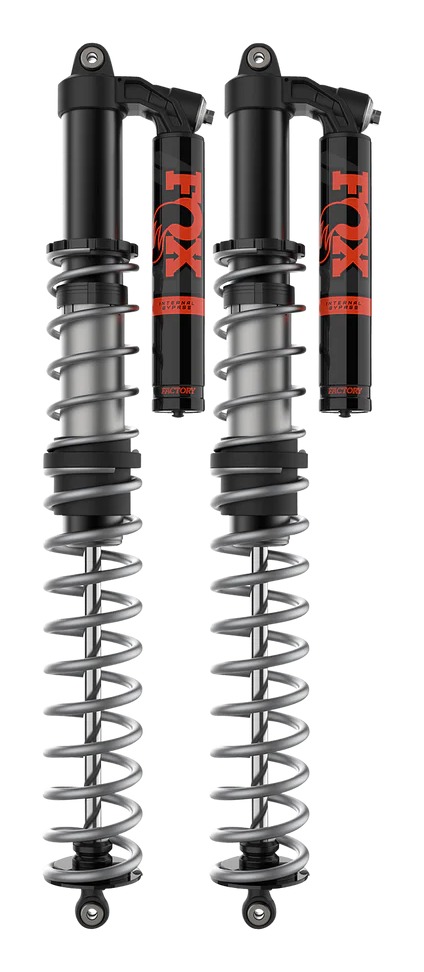

Fox Factory Factory Race Series 3.0 Internal Bypass Rear Shocks Kawasaki Teryx KRX 1000

The Fox Factory racing shocks bring the groundbreaking position-sensitive damping technology from the high-stakes realm of trophy truck racing to the UTV/Side-by-Side market as a seamless bolt-on upgrade. The product features an enlarged shock bore diameter that works tirelessly to avert shock fade, paired with velocity-sensitive damping to amplify resistance during repetitive impacts, ensuring a consistently smooth ride. Crafted with aluminum for both bodies and reservoirs, the product manages to keep weight to a minimum without compromising on durability or performance. Riders looking to finetune their suspension will find an array of adjustment options at their fingertips. The product is equipped with independent hi- and lo-speed compression adjusters, a broad-range rebound adjuster, and a true dual-rate spring system complemented by adjustable crossover rings, all designed to refine and optimize the vehicle's handling characteristics. Central to the prowess of these shocks is Fox's patented Internal Bypass technology (IBP). This innovative feature adjusts the damping based on the piston's position within the shock. Mid-stroke, the balance is softer to ease the ride over rough terrain and manage body sway, while at full compression and extension, the damping significantly stiffens to prevent bottoming out or topping out during aggressive maneuvers. This dynamic approach ensures that the product delivers a tailored response to both mitigate harsh impacts and enhance the overall driving experience.

Features:

  • Position-sensitive internal bypass damping tubes
  • Velocity-sensitive valved, high flow damping piston
  • Piggyback reservoir or Remote reservoir
  • Silver dual rate race springs with crossover
  • 7/8” hard-chromed induction-hardened shaft
  • PTFE-lined spherical bearings for smooth, durable movement
  • Type III hard-anodized aluminum body and reservoir
  • Sold as a pair

Adjustments/Technical Information:

  • Spring preload
  • Dual-Speed Compression (DSC)
  • Wide-range rebound
  • Spring crossover
  • Extended: 41.00
  • Compressed: 25.50
  • Travel: 15.50
  • Top Mount: Eyelet
  • Bottom Mount: Eyelet
  • Reservoir: Piggyback

Note: Images are for reference, actual product may vary based on application

Read More

Uh oh - Our system doesn't think this part will fit your 2022 Polaris Ranger XP 1000 Trail Boss (change vehicle selection)

This Product Fits:


Kawasaki
Teryx KRX 1000 2020-2025
Teryx KRX 1000 eS 2021, 2023, 2024, 2025
Teryx KRX 1000 Special Edition 2021, 2022, 2023, 2024
Teryx KRX 1000 Trail Edition 2021, 2022, 2023, 2024, 2025

This item is also available for 6 other models:

Can-Am
Maverick X3 XRS-DPS Turbo R 72 Inch 2018
Maverick X3 XRS Turbo R 72 inch 2017-2019
Maverick X3 XRS Turbo RR 72 Inch 2020-2023
Maverick X3 XRS Turbo RR w/Smart-Shox 72 Inch 2023
Polaris
RZR Pro XP Premium 2020-2023
RZR Pro XP Sport 2020-2023
Product Style Item # Store SKU Manufacturer Product # Availability
Product Style Fox Factory Factory Race Series 3.0 Internal Bypass Rear Shocks Kawasaki Teryx KRX 1000 2020-2025 Item # 10438878 Store SKU Manufacturer Product # 885-08-509-2 Availability Only 1 Left: Ships within 24 hours
