Fox Factory Factory Race Series 3.0 Internal Bypass Rear Shocks Honda Talon 1000R 2019-2024

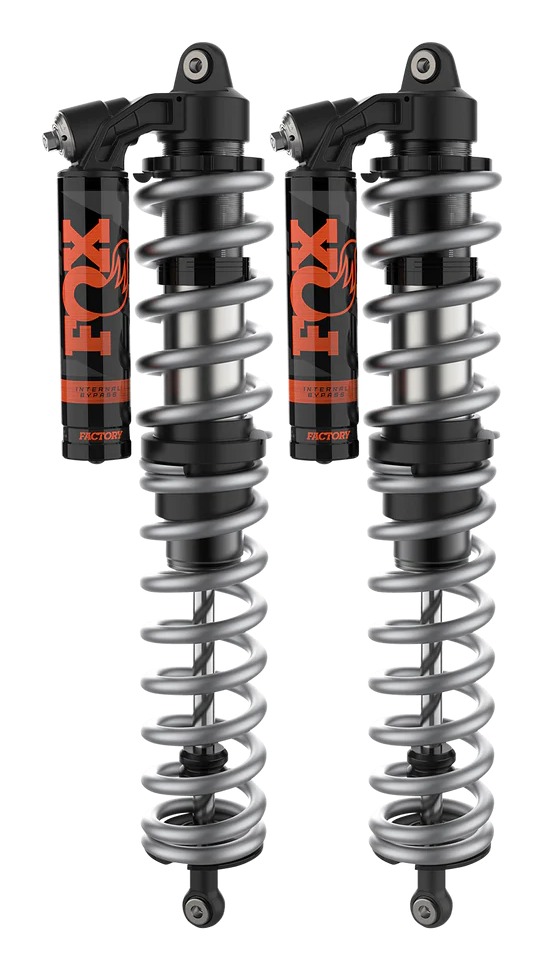

Fox Factory Factory Race Series 3.0 Internal Bypass Rear Shocks Honda Talon 1000R

Fox Factory has engineered a direct bolt-on replacement shock system for UTVs and Side-by-Sides, incorporating race-derived position-sensitive damping technology from the trophy truck arena. This product enhances shock performance by increasing the bore diameter, which minimizes the likelihood of fading and provides additional resistance during repetitive impacts. The construction of the shocks employs lightweight aluminum for both the body and reservoirs, ensuring performance is optimized without adding unnecessary weight. For those seeking to fine-tune their suspension, the product offers independent high and low-speed compression adjusters, a wide-range rebound adjuster, and a dual-rate spring package with adjustable crossover rings, allowing users to calibrate their setups for peak performance. Fox's cutting-edge Internal Bypass technology (IBP) grants variable damping control contingent on the position of the piston within the shock. This feature delivers a lighter damping as the piston moves through the stroke's midpoint, effectively smoothing out rough terrain and controlling body roll. In contrast, a dramatic increase in damping occurs when the piston approaches the bottom of the shock during full compression, thus averting bottoming out at high speeds over sizable bumps. Similarly, as the shock extends and the piston ascends to the top, damping intensifies to prevent the potential top-out damage associated with fully unloading the springs' energy.

Features:

• Position-sensitive internal bypass damping tubes
• Velocity-sensitive valved, high flow damping piston
• Piggyback reservoir or Remote reservoir
• Silver dual rate race springs with crossover
• 7/8” hard-chromed induction-hardened shaft
• PTFE-lined spherical bearings for smooth, durable movement
• Type III hard-anodized aluminum body and reservoir
• Sold as a pair

Adjustments/Technical Information:

• Spring preload
• Dual-Speed Compression (DSC)
• Wide-range rebound
• Spring crossover
• Extended: 32.20
• Compressed: 21.40
• Travel: 10.80
• Top Mount: Eyelet
• Bottom Mount: Eyelet
• Reservoir: Piggyback

Note: Images are for reference, actual product may vary based on application
