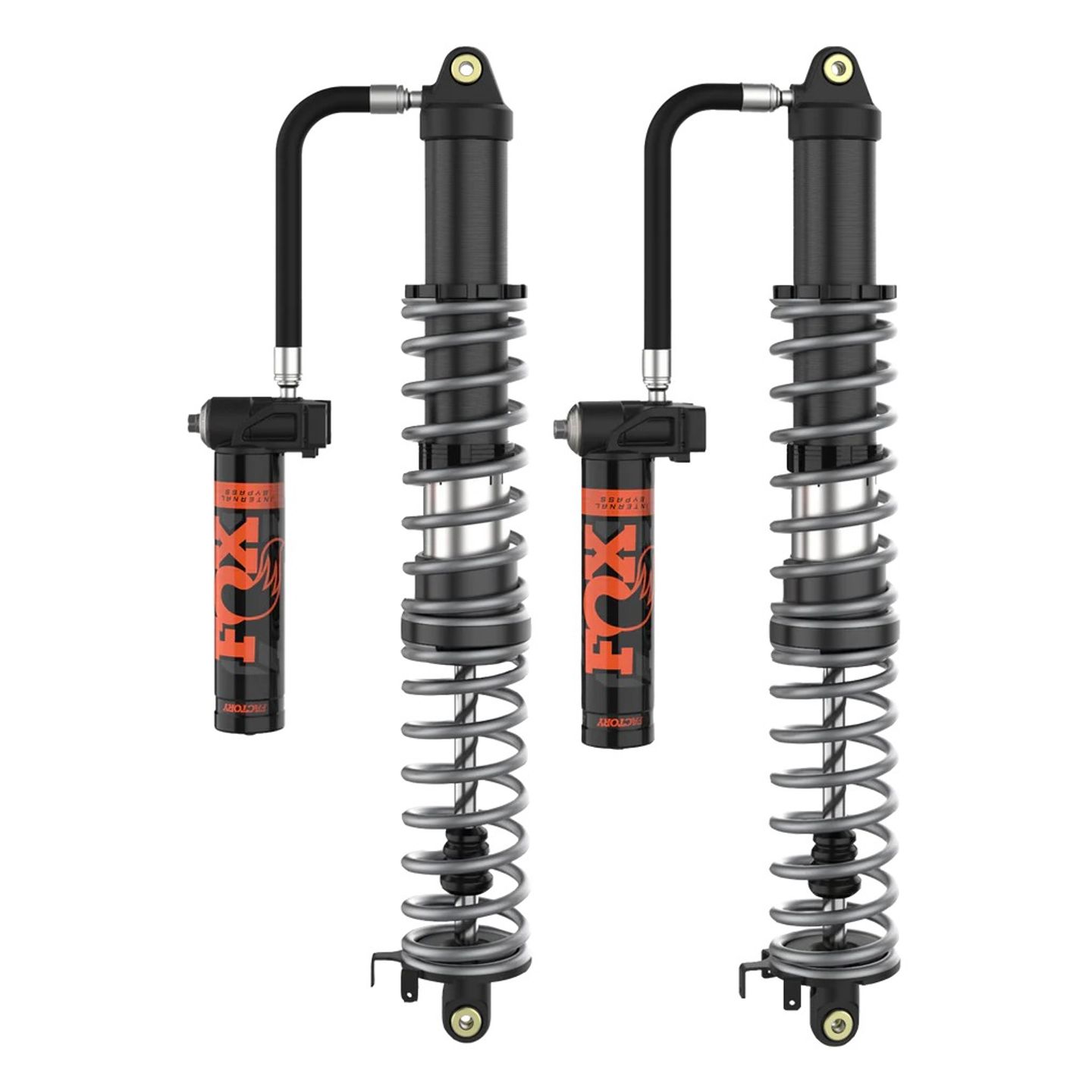

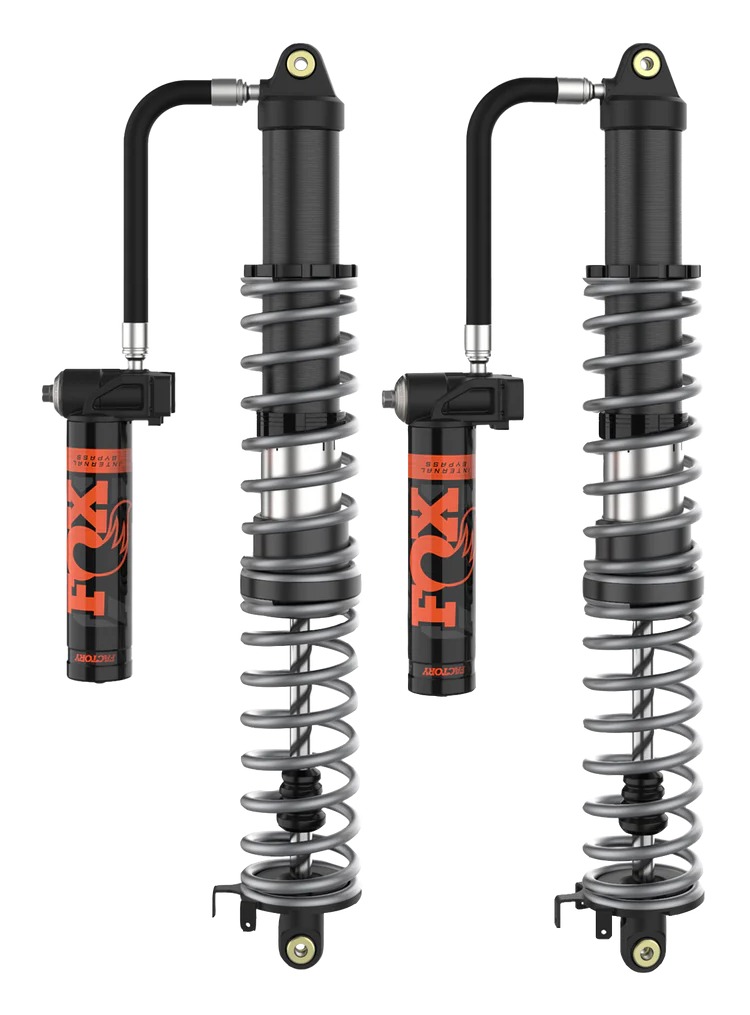

Fox Factory Factory Race Series 3.0 Internal Bypass Rear Shocks

Fox Factory Factory Race Series 3.0 Internal Bypass Rear Shocks

Fox Factory has adapted its position-sensitive damping technology, trail-tested in trophy truck racing, for UTV/Side-by-Side applications with a hassle-free, direct bolt-on replacement shock. Designed to handle consistent impacts with ease, the shocks feature an enlarged bore diameter to reduce fading, and velocity-sensitive damping for increased resistance. Constructed from lightweight aluminum for the shock bodies and reservoirs, the product allows drivers to decrease overall weight without compromising on performance. For those looking to fine-tune their ride, the product offers independent high- and low-speed compression adjusters, wide-range rebound adjustment, and a dual-rate spring system with adjustable crossover rings for tailored performance optimization. Additionally, Fox's exclusive Internal Bypass technology (IBP) provides variable damping control throughout the shock's travel range. Lighter damping in the mid-stroke ensures a smooth ride over rough terrain, while significantly firmer damping at full compression and extension protects against harsh bottoming out or topping out, maintaining vehicle stability even in the most demanding conditions.

Features:

• Position-sensitive internal bypass damping tubes
• Velocity-sensitive valved, high flow damping piston
• Piggyback reservoir or Remote reservoir
• Silver dual rate race springs with crossover
• 7/8” hard-chromed induction-hardened shaft
• PTFE-lined spherical bearings for smooth, durable movement
• Type III hard-anodized aluminum body and reservoir
• Sold as a pair

Adjustments/Technical Information:

• Spring preload
• Dual-Speed Compression (DSC)
• Wide-range rebound
• Spring crossover
• Extended
• Compressed
• Travel:
• Top Mount: Eyelet
• Bottom Mount: Eyelet
• Reservoir: Remote

Note: Images are for reference, actual product may vary based on application
