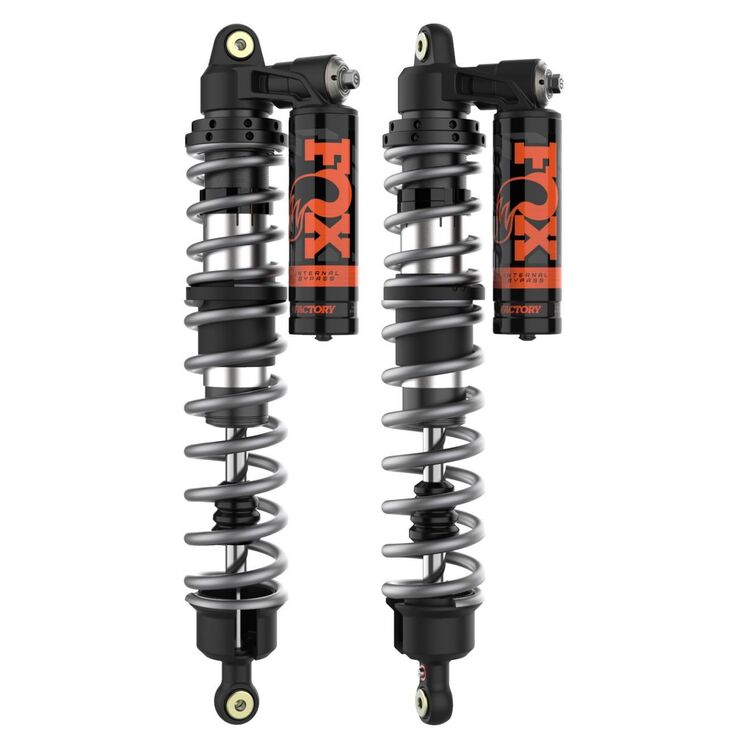

Fox Factory Factory Race Series 2.5 Internal Bypass Front Shocks

 The Factory Race Series Internal Bypass Shocks from Fox Factory bring their premium performance of their off road division into a bolt-on replacement or upgrade for your UTV / Side-by-Side.

A larger shock bore diameter over the OE helps prevent shock fade and the velocity-sensitive damping keeps the resistance strong over continuous impact on the ride. The body and reservoirs are built using aluminum for strength without adding weight.

Get the most out of your ride with this fully tunable and rebuildable suspension. The independent high- and low-speed compression adjusters, wide-range rebound adjusters, and a true dual-rate spring package with adjustable crossover rings help you get the most out of your shock.

FOX’s patented Internal Bypass technology (IBP) allows damping control to vary based on where the piston is traveling inside the shock. This means that while the piston is traveling in the middle of the stoke the damping can be lighter to smooth out whoops and rocks while still controlling body roll. Once the piston is running at the bottom of the shock during full compression, the damping is dramatically increased to resist bottoming out even at high speeds over trophy truck size whoops. As the shock extends and the piston reaches the top of the shock, the damping again increases to prevent damage from topping out when all the energy in the springs are unloaded

Features:

  • Sold as a pair
  • Position-sensitive internal bypass damping tubes
  • Velocity-sensitive valved, high flow damping piston
  • Piggyback reservoir
  • Carbon black dual rate race springs with crossover
  • 7/8” hard-chromed induction-hardened shaft
  • PTFE-lined spherical bearings for smooth, durable movement
  • Kashima-coated hard-anodized aluminum body and reservoir
  • Sold as a pair

Adjustments/Technical Information:

  • Spring preload
  • Dual-Speed Compression (DSC)
  • Wide-range rebound
  • Spring crossover
  • Extended
  • Compressed
  • Travel
  • Top Mount Eyelet
  • Bottom Mount Eyelet
  • Reservoir

Note: Images are for reference, actual product may vary based on application

Read More

This product is vehicle specific. Click here to select your vehicle to ensure fitment.

This Product Fits:


Polaris
RZR XP 1000 EPS 2014-2019
RZR XP 1000 EPS High Lifter Edition 2015-2020
RZR XP 1000 EPS Trails and Rocks Edition 2018, 2019, 2020
RZR XP 1000 EPS w/Ride Command 2018, 2019
RZR XP 1000 Premium 2020
RZR XP Turbo EPS 2016-2021

This item is also available for 7 other models:

Can-Am
Maverick X3 XRS Turbo R 72 inch 2017-2019
Maverick X3 XRS Turbo RR 72 Inch 2020-2023
Maverick X3 XRS Turbo RR w/Smart-Shox 72 Inch 2023
Kawasaki
Teryx KRX 1000 2020-2025
Teryx KRX 1000 eS 2021-2025
Teryx KRX 1000 Special Edition 2021-2024
Teryx KRX 1000 Trail Edition 2021-2025
Product Style Item # Store SKU Manufacturer Product # Availability
Product Style HD Spring Item # 10438498 Store SKU Manufacturer Product # 885-08-115-2 Availability Out of Stock
