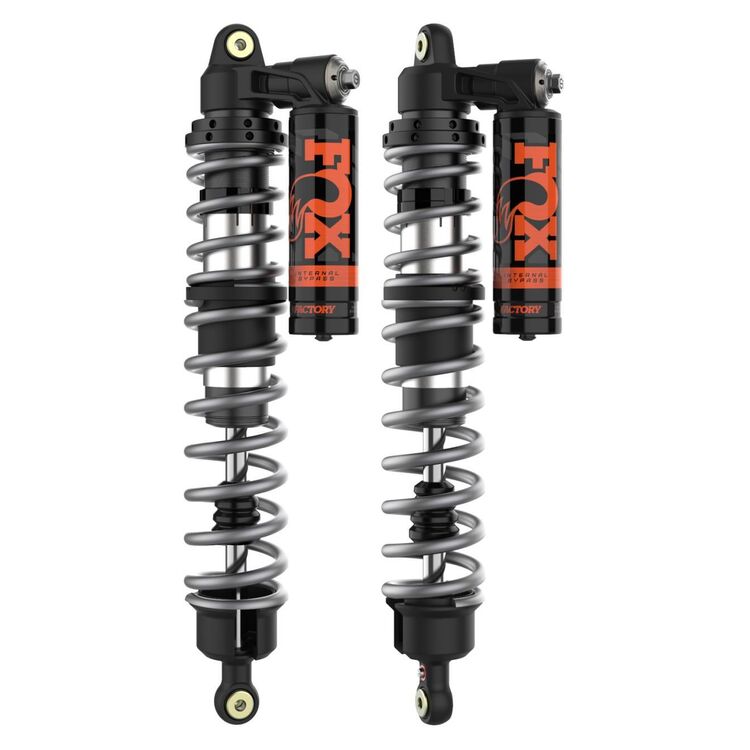

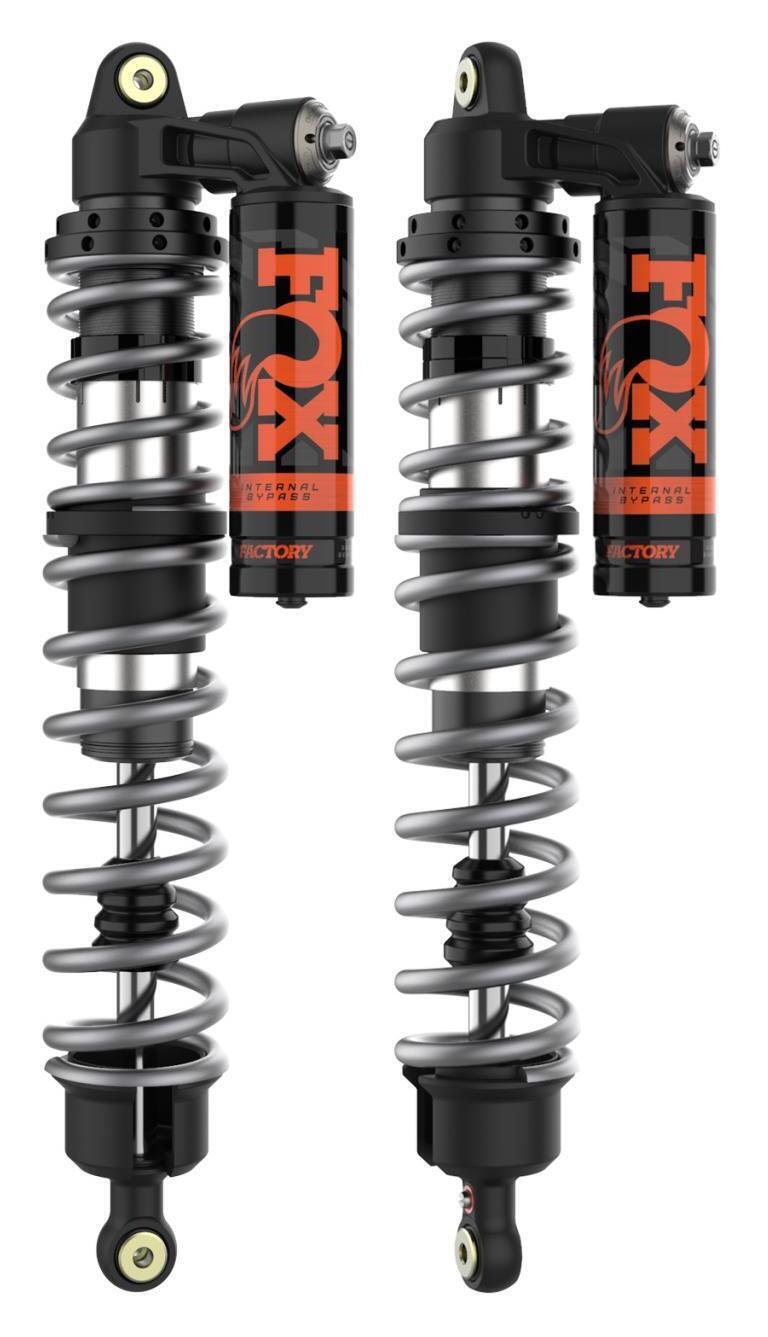

Fox Factory Factory Race Series 2.5 Internal Bypass Front Shocks Kawasaki Teryx KRX 1000 2020-2025

Fox Factory Factory Race Series 2.5 Internal Bypass Front Shocks Kawasaki Teryx KRX 1000

Fox Factory presents a state-of-the-art suspension solution with position-sensitive damping technology, originally engineered for trophy trucks, now adapted for UTVs and Side-by-Sides as a direct bolt-on replacement. The product features enhanced shock bore diameter to mitigate shock fade and velocity-sensitive damping to provide additional resistance during persistent impacts. The design incorporates aluminum bodies and reservoirs, offering weight savings without compromising on durability and strength. For those seeking to fine-tune their suspension system, the product offers independent high- and low-speed compression adjusters, extensive rebound adjustment, and a true dual-rate spring package with adjustable crossover rings to optimize performance. The Internal Bypass technology (IBP) allows for dynamic damping control, offering lighter damping for a smooth ride over rough terrain while providing increased resistance against bottoming out during full compression and topping out when the springs release their energy.

Features:

• Position-sensitive internal bypass damping tubes
• Velocity-sensitive valved, high flow damping piston
• Piggyback reservoir
• Carbon black dual rate race springs with crossover
• 7/8” hard-chromed induction-hardened shaft
• PTFE-lined spherical bearings for smooth, durable movement
• Kashima-coated hard-anodized aluminum body and reservoir
• Sold as a pair

Adjustments/Technical Information:

• Spring preload
• Dual-Speed Compression (DSC)
• Wide-range rebound
• Spring crossover
• Extended: 32.20
• Compressed: 21.40
• Travel: 10.80
• Top Mount: Eyelet
• Bottom Mount: Eyelet
• Reservoir: Piggyback

Note: Images are for reference, actual product may vary based on application
