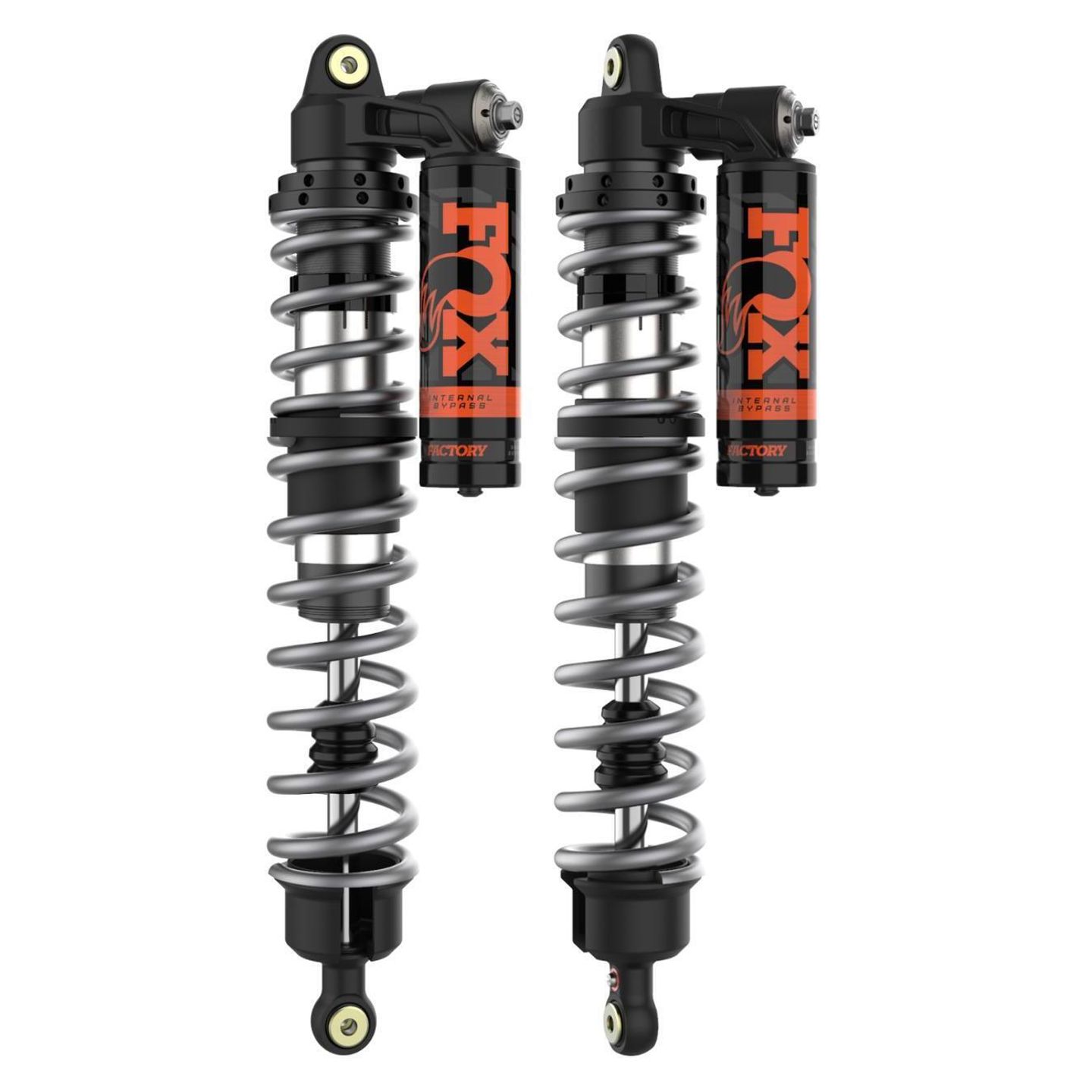

Fox Factory Factory Race Series 2.5 Internal Bypass Front Shocks Kawasaki Teryx KRX4 1000 2022-2025

Fox Factory Factory Race Series 2.5 Internal Bypass Front Shocks Kawasaki Teryx KRX4 1000

The product from Fox Factory incorporates advanced position-sensitive damping technology, initially crafted for the competitive realm of trophy truck racing, and adapts it as a direct bolt-on shock replacement for UTVs and Side-by-Sides. Enhanced shock bore diameter works to forestall fading, and velocity-sensitive damping provides additional resistance during continuous impacts, contributing to sustained performance. The use of aluminum in both the shock bodies and reservoirs not only reduces weight but also maintains the product's integrity and durability. Critical to fine-tuning the suspension, the shocks feature independent high- and low-speed compression adjusters, wide-range rebound adjusters, and an adaptable true dual-rate spring package equipped with adjustable crossover rings for pinnacle performance calibration. At the heart of the technology lies FOX’s patented Internal Bypass (IBP), which affords variable damping control as the piston travels within the shock. This sophisticated mechanism results in lighter damping to cushion rough terrains like whoops and rocks while managing body roll mid-stroke, transitioning to increased resistance at full compression to prevent bottoming out at high-speed impacts. Furthermore, as the shock extends, damping intensifies to prevent damage from topping out. This cutting-edge approach ensures the shocks adapt to various stages of travel, offering a refined balance between control and comfort.

Features:

• Position-sensitive internal bypass damping tubes
• Velocity-sensitive valved, high flow damping piston
• Piggyback reservoir
• Carbon black dual rate race springs with crossover
• 7/8” hard-chromed induction-hardened shaft
• PTFE-lined spherical bearings for smooth, durable movement
• Kashima-coated hard-anodized aluminum body and reservoir
• Sold as a pair

Adjustments/Technical Information:

• Spring preload
• Dual-Speed Compression (DSC)
• Wide-range rebound
• Spring crossover
• Extended: 33.44
• Compressed: 22.50
• Travel: 10.94
• Top Mount: Eyelet
• Bottom Mount: Eyelet
• Reservoir: Piggyback

Note: Images are for reference, actual product may vary based on application
