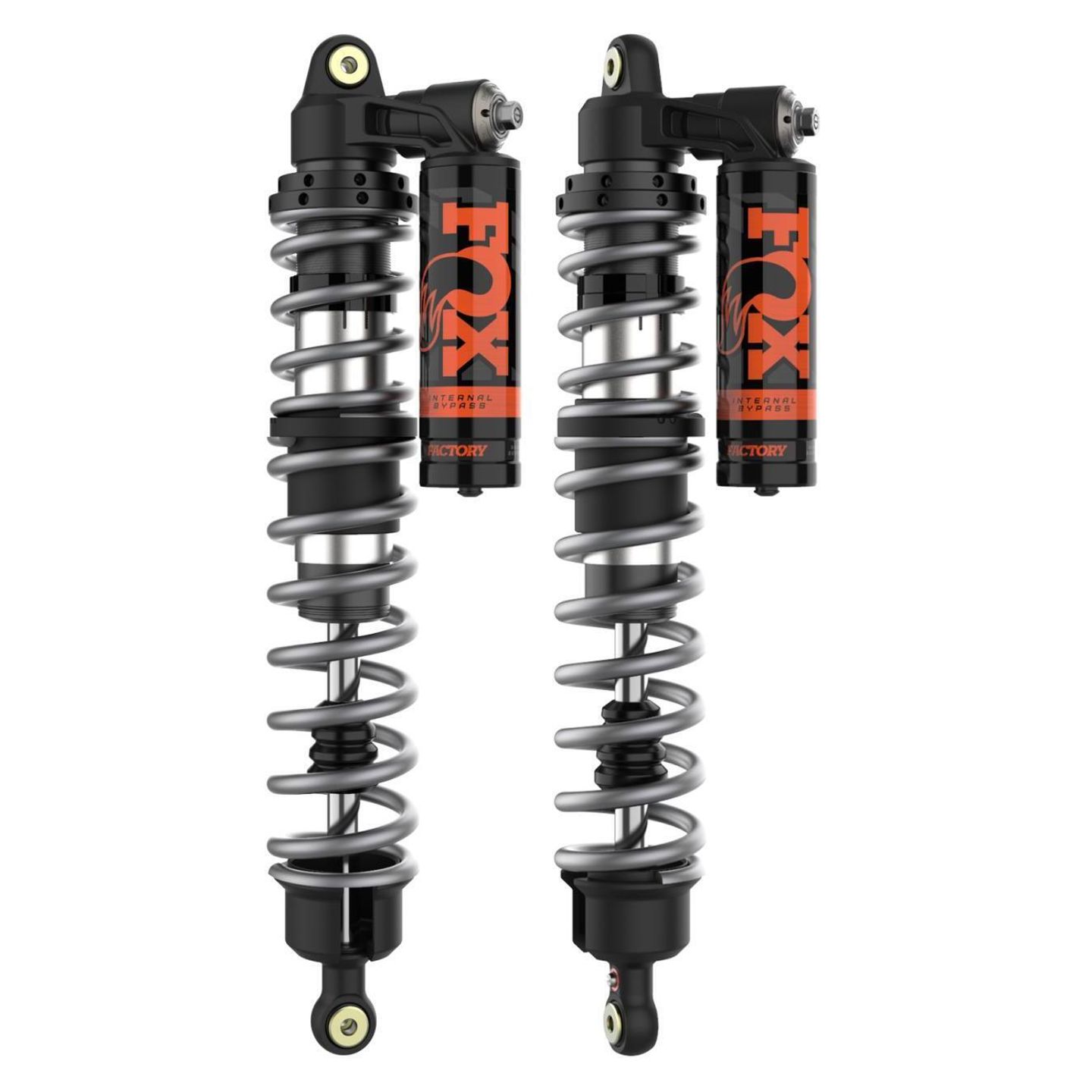

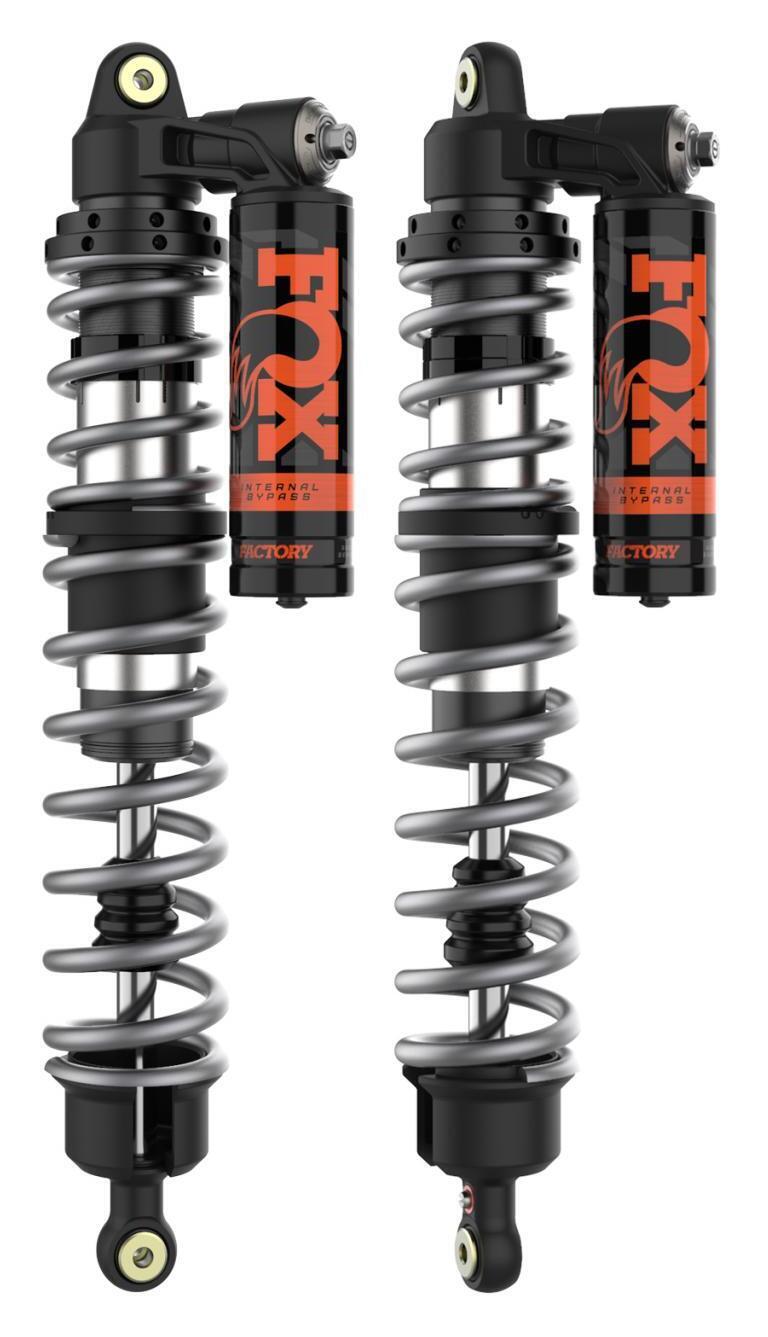

Fox Factory Factory Race Series 2.5 Internal Bypass Front Shocks Can-Am Maverick X3 Turbo R 2017-2023

Fox Factory Factory Race Series 2.5 Internal Bypass Front Shocks Can-Am Maverick X3 Turbo R

Fox Factory presents a state-of-the-art suspension system designed to elevate the performance of UTVs and Side-by-Sides. Incorporating position-sensitive damping technology, taken from the competitive arena of trophy truck racing, the product serves as a high-quality, direct bolt-on replacement. The shock bore diameter is enlarged to mitigate shock fade and the velocity-sensitive damping delivers increased resistance against continuous impacts. Aluminum bodies and reservoirs are utilized in the product's construction, achieving a reduction in weight that does not compromise on performance. To fine-tune your suspension, the product offers independent high- and low-speed compression adjusters, a wide-range rebound adjuster, and a true dual-rate spring package complete with adjustable crossover rings, ensuring optimal vehicle setup. Featuring FOX's patented Internal Bypass technology (IBP), the product enables varied damping control based on piston position within the shock. During mid-stroke travel, damping can be lighter to alleviate the roughness of whoops and rocks while curbing body roll. When the piston approaches the shock's bottom during full compression, damping escalates considerably to guard against bottoming out, even when encountering larger obstacles at high speeds. Similarly, as the shock extends and the piston ascends, damping intensifies once more to protect against damage from the springs topping out.

Features:

• Position-sensitive internal bypass damping tubes
• Velocity-sensitive valved, high flow damping piston
• Piggyback reservoir
• Carbon black dual rate race springs with crossover
• 7/8” hard-chromed induction-hardened shaft
• PTFE-lined spherical bearings for smooth, durable movement
• Kashima-coated hard-anodized aluminum body and reservoir
• Sold as a pair

Adjustments/Technical Information:

• Spring preload
• Dual-Speed Compression (DSC)
• Wide-range rebound
• Spring crossover
• Extended: 32.04
• Compressed: 20.40
• Travel: 11.64
• Top Mount: Eyelet
• Bottom Mount: Eyelet
• Reservoir: Piggyback

Note: Images are for reference, actual product may vary based on application
