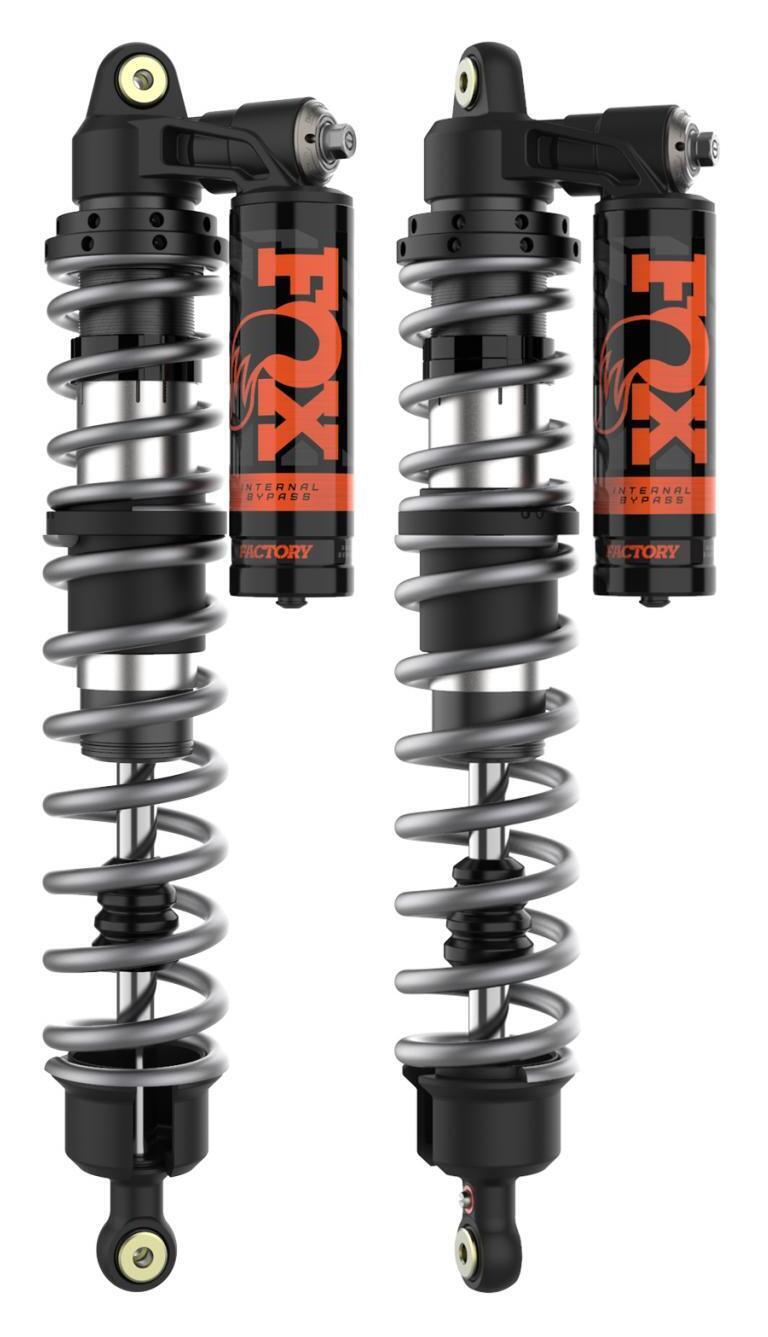

Fox Factory Factory Race Series 2.5 Internal Bypass Front Shocks Honda Talon 1000R 2019-2024

Fox Factory Factory Race Series 2.5 Internal Bypass Front Shocks Honda Talon 1000R

Fox Factory presents a striking advancement in shock absorber technology, adapted from the realm of high-stakes trophy truck racing. This product, designed as a direct bolt-on replacement for UTVs and side-by-sides, incorporates position-sensitive damping that dynamically adjusts to varied terrains and impacts. Enhanced by a larger shock bore diameter to curb fading under duress, the shock absorbers maintain their composure through continual high-energy strikes. This performance is sustained without unnecessary heft, thanks to the aluminum construction of both bodies and reservoirs, achieving a balance between weight reduction and durability. The precision adjustability of the system comes from high- and low-speed compression adjusters, expansive rebound tuning options, and a versatile dual-rate spring configuration that includes adjustable crossover rings for perfecting vehicle handling. The product employs FOX's patented Internal Bypass technology, enabling nuanced damping adaptation within the shock. This design feature allows for lighter damping as the piston travels through mid-stroke, absorbing bumps and managing body roll effectively. In stark contrast, the damping significantly ramps up during full compression at the shock's lower range to protect against hard bottoming out. Likewise, as the shock extends, increased damping at the top end safeguards against potential damage from spring energy release. This technology offers a tailored response to varying driving conditions, securing optimal control and performance for avid off-roaders.

Features:

• Position-sensitive internal bypass damping tubes
• Velocity-sensitive valved, high flow damping piston
• Piggyback reservoir
• Carbon black dual rate race springs with crossover
• 7/8” hard-chromed induction-hardened shaft
• PTFE-lined spherical bearings for smooth, durable movement
• Kashima-coated hard-anodized aluminum body and reservoir
• Sold as a pair

Adjustments/Technical Information:

• Spring preload
• Dual-Speed Compression (DSC)
• Wide-range rebound
• Spring crossover
• Extended: 26.54
• Compressed: 16.80
• Travel: 9.74
• Top Mount: Eyelet
• Bottom Mount: Eyelet
• Reservoir: Piggyback
