High Lifter 8" Portal Gear Lift Polaris Ranger XP 1000 / XP Crew 2021-2022

$5,773.50
$6,415.00
Save $641.50 10%

Blemished/Refurbished

This item is available as a Blem/Refurb. These are items that cannot be sold as "New" merchandise and are limited to stock on hand. See the product details for a description of the product's condition.

Ships Free to Cycle Gear Stores!

Ship to an Address:
Please select a to view availability.

Quantity
Add to Cart

Pick-up in Store:
Cycle Gear Pacheco Check Nearby Stores

The Cycle Gear Difference
  • 30-Day Best Price Guaranteed
  • Free Shipping Over $49.99
  • No-Hassle Returns View Details

Related Categories

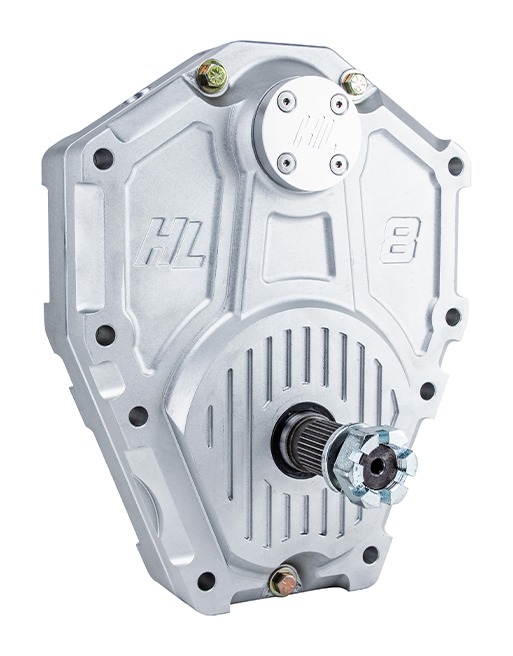

High Lifter 8" Portal Gear Lift Polaris Ranger XP 1000 / XP Crew

Add the lift, power and performance you are looking for with High Lifter's Portal Gear Lifts. Built using a dual idler system to provide you with 50%-60% gear reduction you can crawl through or over most obstacles without having to modify your drive system. Designed with a strategically clocked backing plate to allow for some of the largest tires and additional fender clearance to keep you jam free. Keep that UTV / Side-by-Side on the trail longer even when it gets muddy!

Features:

  • Each kit includes 4 portal boxes
  • Forged Gear Boxes
    • Process of forging eliminates the occurrence of porosity and cavities
    • Stronger than both cast and billet aluminum
  • Brake lines
    • No need to replace factory brake lines, a brake line extension gives you an easier install and saves a lot of time!
    • Large advantage for Can-Am owners!
  • Gear Box Venting
    • Customers asked for box venting, and we give you the option
    • Our box design offers a plug for venting with an optional easy to install kit that will be available soon
    • Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals
  • Gasket Material and Design
    • High density Kevlar fiber gaskets plus no additional sealant is needed
    • Gasket material is creep resistant plus oil and coolant resistant
  • Seals
    • Two oil seals on the spindle shaft for 100% more sealing area
    • Dual seals prevent water intrusion and oil leaks
    • True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection
  • Backing Plate
    • These are the strongest backing plates on the market
    • 5/16” steel plate with bent flanges for strength and durability
    • Welded gusset brackets and designed to factory off-set
    • Works with all control arms that are built to factory hub specifications
    • Backing plates have an offset or “CLOCKED” 5” forward & rearward so you can run BIG tires and not interfere with your clearance!
  • 13” Rotor
    • Precision ground stainless steel rotors (this is a big deal for brake performance)
    • Access holes for ease of assembly and disassembly
    • Slotted rotor allows for heat dissipation and cooling
  • Gear Profile
    • Alloy steel heat treating process increases overall internal and external strength
    • CNC precision ground machining ensures excellent fitment and increased strength
    • Controlled gear lapping for ease of installation and a quieter performance
Read More

This product is vehicle specific. Click here to select your vehicle to ensure fitment.

Fitment Notes & Exceptions



This Product Fits:


Polaris
Ranger Crew XP 1000 Big Game Edition 2021
Ranger Crew XP 1000 North Star Edition Trail Boss 2021, 2022
Ranger Crew XP 1000 Trail Boss 2022
Ranger Crew XP 1000 Waterfowl Edition 2021
Ranger XP 1000 Big Game Edition 2021
Ranger XP 1000 Crew EPS Texas Edition 2021, 2022
Ranger XP 1000 Crew Northstar Edition Premium 2021, 2022
Ranger XP 1000 Crew Northstar Edition Trail Boss 2022
Ranger XP 1000 Crew Northstar Edition Ultimate 2021, 2022
Ranger XP 1000 EPS Texas Edition 2021
Ranger XP 1000 Northstar Edition Premium 2021, 2022
Ranger XP 1000 Northstar Edition Trail Boss 2021, 2022
Ranger XP 1000 Northstar Edition Ultimate 2021, 2022
Ranger XP 1000 Trail Boss 2021, 2022
Ranger XP 1000 Waterfowl Edition 2021

This item is also available for 71 other models:

Polaris
Ranger 1000 2021-2022
Ranger 1000 2020
Ranger 1000 Crew 2021-2022
Ranger 1000 Crew 2020
Ranger 1000 Crew EPS 2020
Ranger 1000 Crew EPS Premium 2021-2023
Ranger 1000 Crew EPS Winter Prep 2022
Ranger 1000 Crew EPS Winter Prep 2020
Ranger 1000 EPS 2021-2023
Ranger 1000 EPS 2020
Ranger 1000 EPS Premium 2021
Ranger 1000 EPS Winter Prep 2020
Ranger 1000 Premium 2021-2023
Ranger 1000 Premium Winter Prep Package 2022
Ranger XP 1000 2021
Ranger XP 1000 Crew EPS 2021
Ranger XP 1000 Crew EPS 2018-2020
Ranger XP 1000 Crew EPS Back Country Edition 2019
Ranger XP 1000 Crew EPS Premium 2021-2023
Ranger XP 1000 Crew EPS Premium 2019-2020
Ranger XP 1000 Crew EPS Texas Edition 2023
Ranger XP 1000 Crew EPS Texas Edition 2020
Ranger XP 1000 Crew High Lifter 2019-2020
Ranger XP 1000 Crew Northstar Edition 2018-2020
Ranger XP 1000 Crew Northstar Edition Premium 2023
Ranger XP 1000 Crew Northstar Edition Premium 2020
Ranger XP 1000 Crew Northstar Edition Trail Boss 2023
Ranger XP 1000 Crew Northstar Edition Ultimate 2023
Ranger XP 1000 Crew Northstar Edition Ultimate 2020
Ranger XP 1000 Crew Northstar Edition Ultimate MB Quart Audio 2020
Ranger XP 1000 Crew Northstar Edition w/Ride Command 2019-2020
Ranger XP 1000 Crew Premium w/Ride Command 2020
Ranger XP 1000 Crew Winter Prep 2020
Ranger XP 1000 EPS 2018
Ranger XP 1000 EPS Back Country Edition 2019
Ranger XP 1000 EPS Northstar 2018-2019
Ranger XP 1000 EPS Northstar Edition w/Ride Command 2019-2020
Ranger XP 1000 EPS Premium 2021-2023
Ranger XP 1000 EPS Premium 2019-2020
Ranger XP 1000 EPS Ride Command 2019
Ranger XP 1000 EPS Texas Edition 2020
Ranger XP 1000 High Lifter Edition 2018-2020
Ranger XP 1000 Northstar Edition 2020
Ranger XP 1000 Northstar Edition Premium 2023
Ranger XP 1000 Northstar Edition Premium 2020
Ranger XP 1000 Northstar Edition Trail Boss 2023
Ranger XP 1000 Northstar Edition Ultimate 2023
Ranger XP 1000 Northstar Edition Ultimate 2020
Ranger XP 1000 Northstar Edition Ultimate MB Quart Audio 2020
Ranger XP 1000 Premium w/Ride Command 2020
Ranger XP 1000 Winter Prep 2020
RZR XP 1000 EPS 2015-2019
RZR XP 1000 EPS Dynamix Edition 2019
RZR XP 1000 EPS High Lifter Edition 2015-2022
RZR XP 1000 EPS Trails and Rocks Edition 2018-2022
RZR XP 1000 EPS w/Ride Command 2017-2019
RZR XP 1000 Premium 2020-2023
RZR XP 1000 Sport 2021-2023
RZR XP 1000 Ultimate 2023
RZR XP 4 1000 EPS 2015-2019
RZR XP 4 1000 EPS Dynamix Edition 2019
RZR XP 4 1000 EPS High Lifter Edition 2016-2022
RZR XP 4 1000 EPS w/Ride Command 2018-2019
RZR XP 4 1000 Premium 2020-2023
RZR XP 4 1000 Premium w/Ride Command 2020-2021
RZR XP 4 1000 Sport 2021-2023
RZR XP 4 1000 Ultimate w/Ride Command 2023
RZR XP 4 Turbo EPS 2016-2021
RZR XP 4 Turbo EPS Dynamix Edition 2018-2019
RZR XP Turbo EPS 2016-2021
RZR XP Turbo EPS Dynamix Edition 2018-2019
Product Style Item # Store SKU Manufacturer Product # Availability
Product Style Dual Idler / 50% Gear Reduction Item # 10290616 Store SKU Manufacturer Product # 73-15985 Availability Available: Ships in 2-4 business days
Product Style Dual Idler / 60% Gear Reduction Item # 10290619 Store SKU Manufacturer Product # 73-15986 Availability Available: Ships in 2-4 business days
