High Lifter Products Inc

High Lifter 8" Portal Gear Lift Polaris Ranger XP 1000 / XP Crew 2018-2020

Write a Review

High Lifter 8" Portal Gear Lift Polaris Ranger XP 1000 / XP Crew 2018-2020

Fullscreen Zoom

View Images (10)

$5,773^.⁵⁰

$6,415.00

Save $641.50 10%

Type: Dual Idler Size:

Blemished/Refurbished

This item is available as a Blem/Refurb. These are items that cannot be sold as "New" merchandise and are limited to stock on hand. See the product details for a description of the product's condition.

Ships Free to Cycle Gear Stores!

The Cycle Gear Difference

Free Shipping Over $49^.⁹⁹
30-Day Best Price Guaranteed
No-Hassle Returns View Details

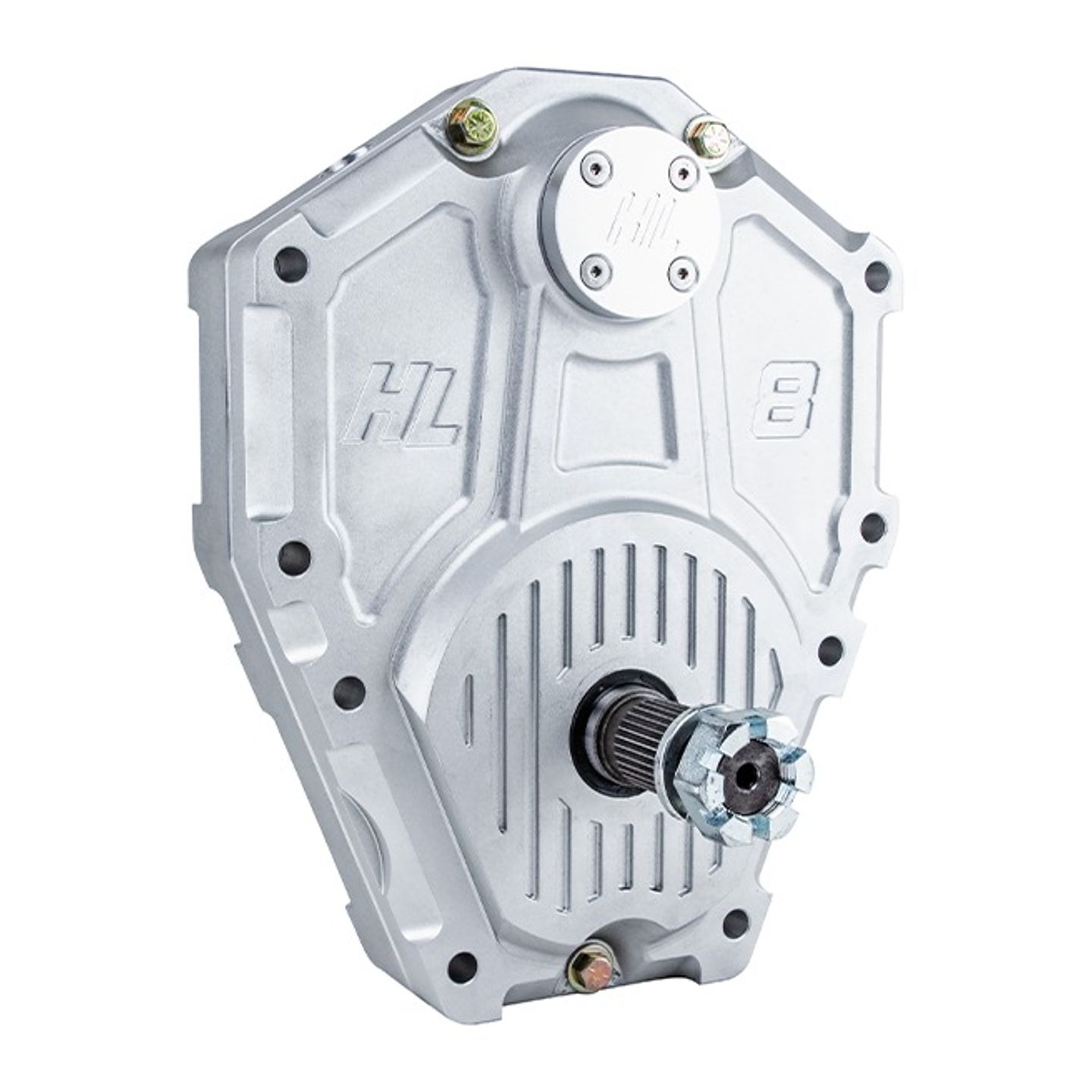

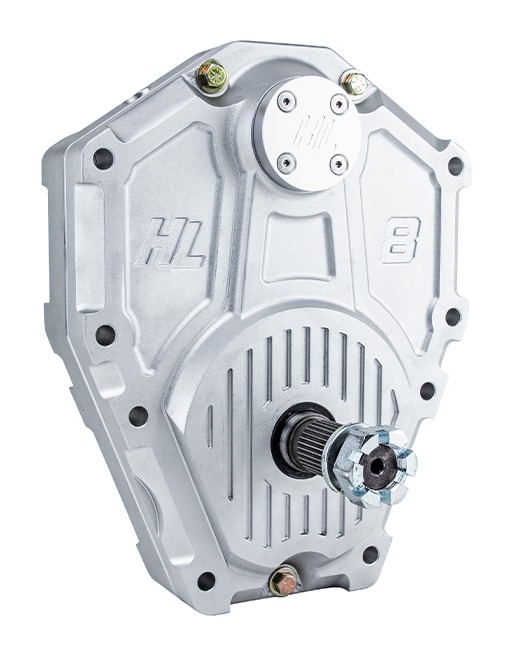

High Lifter 8" Portal Gear Lift Polaris Ranger XP 1000 / XP Crew

Add the lift, power and performance you are looking for with High Lifter's Portal Gear Lifts. Built using a dual idler system to provide you with 50%-60% gear reduction you can crawl through or over most obstacles without having to modify your drive system. Designed with a strategically clocked backing plate to allow for some of the largest tires and additional fender clearance to keep you jam free. Keep that UTV / Side-by-Side on the trail longer even when it gets muddy!

Features:

Each kit includes 4 portal boxes
Forged Gear Boxes
- Process of forging eliminates the occurrence of porosity and cavities
- Stronger than both cast and billet aluminum
Brake lines
- No need to replace factory brake lines, a brake line extension gives you an easier install and saves a lot of time!
- Large advantage for Can-Am owners!
Gear Box Venting
- Customers asked for box venting, and we give you the option
- Our box design offers a plug for venting with an optional easy to install kit that will be available soon
- Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals
Gasket Material and Design
- High density Kevlar fiber gaskets plus no additional sealant is needed
- Gasket material is creep resistant plus oil and coolant resistant
Seals
- Two oil seals on the spindle shaft for 100% more sealing area
- Dual seals prevent water intrusion and oil leaks
- True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection
Backing Plate
- These are the strongest backing plates on the market
- 5/16” steel plate with bent flanges for strength and durability
- Welded gusset brackets and designed to factory off-set
- Works with all control arms that are built to factory hub specifications
- Backing plates have an offset or “CLOCKED” 5” forward & rearward so you can run BIG tires and not interfere with your clearance!
13” Rotor
- Precision ground stainless steel rotors (this is a big deal for brake performance)
- Access holes for ease of assembly and disassembly
- Slotted rotor allows for heat dissipation and cooling
Gear Profile
- Alloy steel heat treating process increases overall internal and external strength
- CNC precision ground machining ensures excellent fitment and increased strength
- Controlled gear lapping for ease of installation and a quieter performance

Read More

Uh oh - Our system doesn't think this part will fit your 1967 Honda CM91 (change vehicle selection)

Fitment Notes & Exceptions

Polaris: Ranger 1000 2020; Ranger 1000 EPS 2020; Ranger 1000 EPS Winter Prep 2020; Ranger Crew 1000 2020; Ranger Crew 1000 EPS 2020; Ranger Crew 1000 EPS Winter Prep 2020; Ranger Crew XP 1000 EPS 2018, 2019, 2020; Ranger Crew XP 1000 EPS Back Country Edition 2019; Ranger Crew XP 1000 EPS Premium 2019, 2020; Ranger Crew XP 1000 EPS Texas Edition 2020; Ranger Crew XP 1000 High Lifter 2019, 2020; Ranger Crew XP 1000 Northstar Edition 2018, 2019, 2020; Ranger Crew XP 1000 Northstar Edition Premium 2020; Ranger Crew XP 1000 Northstar Edition Ultimate 2020; Ranger Crew XP 1000 Northstar Edition Ultimate MB Quart Audio 2020; Ranger Crew XP 1000 Northstar Edition w/Ride Command 2019, 2020; Ranger Crew XP 1000 Premium w/Ride Command 2020; Ranger Crew XP 1000 Winter Prep 2020; Ranger XP 1000 EPS 2018; Ranger XP 1000 EPS Back Country Edition 2019; Ranger XP 1000 EPS Northstar 2018, 2019; Ranger XP 1000 EPS Northstar Edition w/Ride Command 2019, 2020; Ranger XP 1000 EPS Premium 2019, 2020; Ranger XP 1000 EPS Ride Command 2019; Ranger XP 1000 EPS Texas Edition 2020; Ranger XP 1000 High Lifter Edition 2018, 2019, 2020; Ranger XP 1000 Northstar Edition 2020; Ranger XP 1000 Northstar Edition Premium 2020; Ranger XP 1000 Northstar Edition Ultimate 2020; Ranger XP 1000 Northstar Edition Ultimate MB Quart Audio 2020; Ranger XP 1000 Premium w/Ride Command 2020; Ranger XP 1000 Winter Prep 2020

This item is also available for 56 other models:

Polaris: Ranger 1000 2021-2025; Ranger 1000 EPS 2021-2025; Ranger 1000 EPS Premium 2021; Ranger 1000 Premium 2021-2025; Ranger 1000 Premium Winter Prep Package 2022; Ranger Crew 1000 2021-2025; Ranger Crew 1000 EPS 2024-2025; Ranger Crew 1000 EPS Premium 2021-2025; Ranger Crew 1000 EPS Winter Prep 2022; Ranger Crew XP 1000 Big Game Edition 2021; Ranger Crew XP 1000 EPS 2021; Ranger Crew XP 1000 EPS Premium 2021-2023; Ranger Crew XP 1000 EPS Texas Edition 2023-2025; Ranger Crew XP 1000 EPS Texas Edition 2021-2022; Ranger Crew XP 1000 Northstar Edition Premium 2023-2025; Ranger Crew XP 1000 Northstar Edition Premium 2021-2022; Ranger Crew XP 1000 Northstar Edition Trail Boss 2023-2025; Ranger Crew XP 1000 Northstar Edition Trail Boss 2022; Ranger Crew XP 1000 North Star Edition Trail Boss 2021-2022; Ranger Crew XP 1000 Northstar Edition Ultimate 2023-2025; Ranger Crew XP 1000 Northstar Edition Ultimate 2021-2022; Ranger Crew XP 1000 Trail Boss 2022; Ranger Crew XP 1000 Waterfowl Edition 2025; Ranger Crew XP 1000 Waterfowl Edition 2021; Ranger XP 1000 2021; Ranger XP 1000 Big Game Edition 2021; Ranger XP 1000 EPS Premium 2021-2025; Ranger XP 1000 EPS Texas Edition 2021; Ranger XP 1000 Northstar Edition Premium 2023-2025; Ranger XP 1000 Northstar Edition Premium 2021-2022; Ranger XP 1000 Northstar Edition Trail Boss 2023-2024; Ranger XP 1000 Northstar Edition Trail Boss 2021-2022; Ranger XP 1000 Northstar Edition Ultimate 2023-2025; Ranger XP 1000 Northstar Edition Ultimate 2021-2022; Ranger XP 1000 Trail Boss 2021-2022; Ranger XP 1000 Waterfowl Edition 2021; RZR XP 1000 EPS 2015-2019; RZR XP 1000 EPS Dynamix Edition 2019; RZR XP 1000 EPS High Lifter Edition 2015-2022; RZR XP 1000 EPS Trails and Rocks Edition 2018-2022; RZR XP 1000 EPS w/Ride Command 2017-2019; RZR XP 1000 Premium 2020-2023; RZR XP 1000 Sport 2021-2023; RZR XP 1000 Ultimate 2023; RZR XP 4 1000 EPS 2015-2019; RZR XP 4 1000 EPS Dynamix Edition 2019; RZR XP 4 1000 EPS High Lifter Edition 2016-2022; RZR XP 4 1000 EPS w/Ride Command 2018-2019; RZR XP 4 1000 Premium 2020-2023; RZR XP 4 1000 Premium w/Ride Command 2020-2021; RZR XP 4 1000 Sport 2021-2023; RZR XP 4 1000 Ultimate w/Ride Command 2023; RZR XP 4 Turbo EPS 2016-2021; RZR XP 4 Turbo EPS Dynamix Edition 2018-2019; RZR XP Turbo EPS 2016-2021; RZR XP Turbo EPS Dynamix Edition 2018-2019

Product Style	Item #	Store SKU	Manufacturer Product #	Availability
Product Style Dual Idler / 50% Gear Reduction	Item # 10290614	Store SKU	Manufacturer Product # 73-15976	Availability Available: Ships in 3-5 business days
Product Style Dual Idler / 60% Gear Reduction	Item # 10290617	Store SKU	Manufacturer Product # 73-15980	Availability Available: Ships in 3-5 business days
