Wilwood
Wilwood Big Brake Kit
$1,344.16$1,374.56
Price depends on fitment. Select your vehicle to continue.
$1,414.91$1,446.91
Save up to
$72.35
5%
Ships Free to Cycle Gear Stores!
The Cycle Gear Difference
- Free Shipping Over $49.99
- 30-Day Best Price Guaranteed
- No-Hassle Returns View Details
Wilwood Big Brake Kit Resources

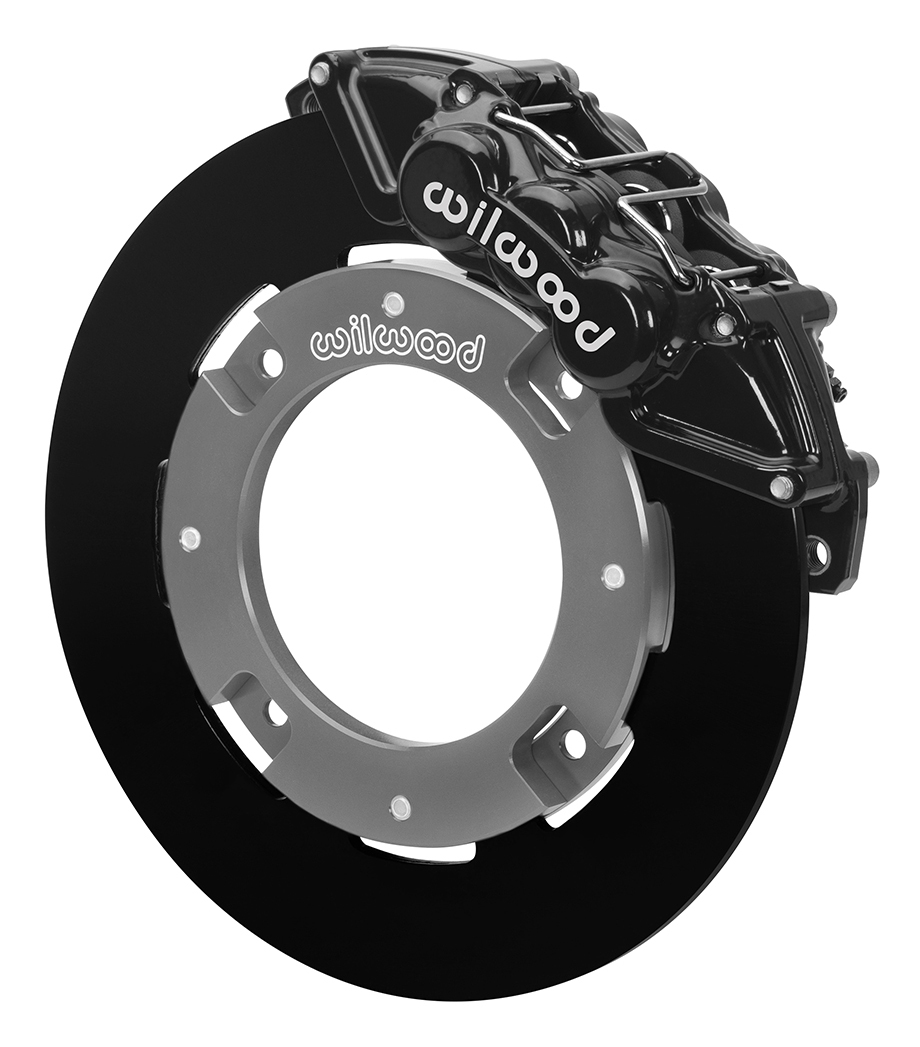

Wilwood Big Brake Kit
Wilwood Big Brake Kit features dynamically-mounted rotors and upgraded calipers your UTV / Side-by-Side. This kit features fixed mount multi-piston calipers with greater clamping force over stock, and larger diameter floating rotors for more brake torque and a harder bite, improving braking on higher-powered UTVs. Built with forged aluminum differential-bore four or six piston calipers reduce deflection and provide more uniform engagement to increase braking force and improve feel so you avoid that squishy pedal. The high-friction steel rotors, are up to 20% greater in diameter and thicker for less distortion and the dynamic mounting reduce thermal stress and prevent piston knockback from rough terrain.
Features:
- Dynamically-mounted rotors
- Fixed mount multi-piston calipers
- Forged aluminum differential-bore four and six piston calipers
- High-friction steel rotors
- Black Electro Coat rotor surface finish
- Powder coated calipers for durability
- Includes BP-10 medium friction pads
-
Minimum required wheel diameter of 14 Inches
- Sold as a pair (front set and back set sold separately)
Includes:
- 2 Forged aluminum differential-bore calipers
- 2 Larger diameter floating rotors
- 2 sets of brake pads
- Mounting hardware
Specifications:
-
Front Calipers
- Piston Count: 6
- Piston 1 Bore (in): 1.12
- Piston 2 Bore (in): 1.12
- Piston 3 Bore (in): 1.00
- Piston Area (In2): 2.27
- Piston Type: Stainless
- Mount Type: Lug
- Brake Pad Plate: 7812
- Brake Pad Area (In2): 6.36
- Brake Pad Volume (In3): 2.1
- Pad Compound: BP-10
-
Front Rotors
- Surface Finish: Black Electro Coat
- Material: Steel
- Outside Diameter (in): 11.25
- Width (in): 0.25
- Vane Count: Solid
- Design Type: Solid
- Bedded: No
- Dynamically Balanced: No
-
Rear Calipers
- Piston Count: 4
- Piston 1 Bore (in): 1.12
- Piston 2 Bore (in): 1.12
- Piston 3 Bore (in): 0
- Piston Area (In2): 1.98
- Piston Type: Stainless
- Mount Type: Lug
- Brake Pad Plate: 7812
- Brake Pad Area (In2): 6.36
- Brake Pad Volume (In3): 2.1
- Pad Compound: BP-10
-
Rear Rotors
- Surface Finish: Black Electro Coat
- Material: Steel
- Outside Diameter (in): 11.25
- Width (in): 0.25
- Vane Count: Solid
- Design Type: Solid
- Bedded: No
- Dynamically Balanced: No
Read More
This Product Fits:
- Can-Am
- Maverick X3 2017
- Maverick X3 DS Turbo 64 Inch 2021-2024
- Maverick X3 DS Turbo R 64 Inch 2021
- Maverick X3 DS Turbo RR 64 Inch 2022-2024
- Maverick X3 MAX 2017-2018
- Maverick X3 MAX DS Turbo 64 Inch 2022-2024
- Maverick X3 MAX DS Turbo R 64 Inch 2021
- Maverick X3 MAX DS Turbo RR 64 Inch 2022-2024
- Maverick X3 MAX RS Turbo 64 Inch 2024
- Maverick X3 MAX RS Turbo R 72 Inch 2021
- Maverick X3 MAX RS Turbo RR 72 Inch 2022-2024
- Maverick X3 MAX Turbo 64 Inch 2018
- Maverick X3 MAX Turbo R 64 Inch 2018-2020
- Maverick X3 MAX XDS-DPS 2017-2018
- Maverick X3 MAX XDS-DPS Turbo R 64 Inch 2018-2019
- Maverick X3 MAX XDS Turbo RR 64 Inch 2020-2024
- Maverick X3 MAX XMR Turbo RR 72 Inch 2020-2024
- Maverick X3 MAX XRC Turbo RR 72 Inch 2024
- Maverick X3 MAX XRS-DPS 2017-2018
- Maverick X3 MAX XRS-DPS Turbo R 72 Inch 2017-2018
- Maverick X3 MAX XRS Turbo RR 72 Inch 2020-2024
- Maverick X3 MAX XRS Turbo RR w/Smart-Shox 72 Inch 2023-2024
- Maverick X3 RS Turbo 72 Inch 2024
- Maverick X3 RS Turbo R 72 Inch 2021
- Maverick X3 RS Turbo RR 72 Inch 2022-2024
- Maverick X3 Turbo 64 Inch 2017-2021
- Maverick X3 Turbo R 64 inch 2018
- Maverick X3 Turbo RR XMR 64 Inch 2022-2024
- Maverick X3 Turbo RR XMR 72 Inch 2022-2024
- Maverick X3 Turbo RR XRC 64 Inch 2022-2024
- Maverick X3 Turbo RR XRC 72 Inch 2022-2024
- Maverick X3 XDS-DPS 2017
- Maverick X3 XDS-DPS Turbo R 64 Inch 2018
- Maverick X3 XDS Turbo R 64 Inch 2019
- Maverick X3 XDS Turbo RR 64 Inch 2020-2024
- Maverick X3 XMR Turbo 64 Inch 2018-2020
- Maverick X3 XMR Turbo R 72 Inch 2018
- Maverick X3 XMR Turbo RR 72 Inch 2020-2021
- Maverick X3 XRC Turbo 64 Inch 2018
- Maverick X3 XRC Turbo R 72 Inch 2018-2020
- Maverick X3 XRS-DPS Turbo R 72 Inch 2018
- Maverick X3 XRS Turbo R 72 inch 2017-2019
- Maverick X3 XRS Turbo RR 72 Inch 2020-2024
- Maverick X3 XRS Turbo RR w/Smart-Shox 72 Inch 2023-2024
- Polaris
- RZR RS1 EPS 2018-2019
- RZR RS1 Premium 2020-2021
- RZR XP 1000 EPS 2014-2019
- RZR XP 1000 EPS Dynamix Edition 2019
- RZR XP 1000 EPS High Lifter Edition 2015-2022
- RZR XP 1000 EPS Trails and Rocks Edition 2018-2022
- RZR XP 1000 EPS w/Ride Command 2017-2019
- RZR XP 1000 Premium 2020-2023
- RZR XP 1000 Sport 2021-2023
- RZR XP 1000 Ultimate 2023
- RZR XP 4 1000 EPS 2014-2019
- RZR XP 4 1000 EPS Dynamix Edition 2019
- RZR XP 4 1000 EPS High Lifter Edition 2016-2022
- RZR XP 4 1000 EPS w/Ride Command 2018-2019
- RZR XP 4 1000 Premium 2020-2023
- RZR XP 4 1000 Premium w/Ride Command 2020-2021
- RZR XP 4 1000 Sport 2021-2023
- RZR XP 4 1000 Ultimate w/Ride Command 2023
