V Force 4 Reed Valve System Yamaha YZ65 2018-2026

V Force 4 Reed Valve System Yamaha YZ65

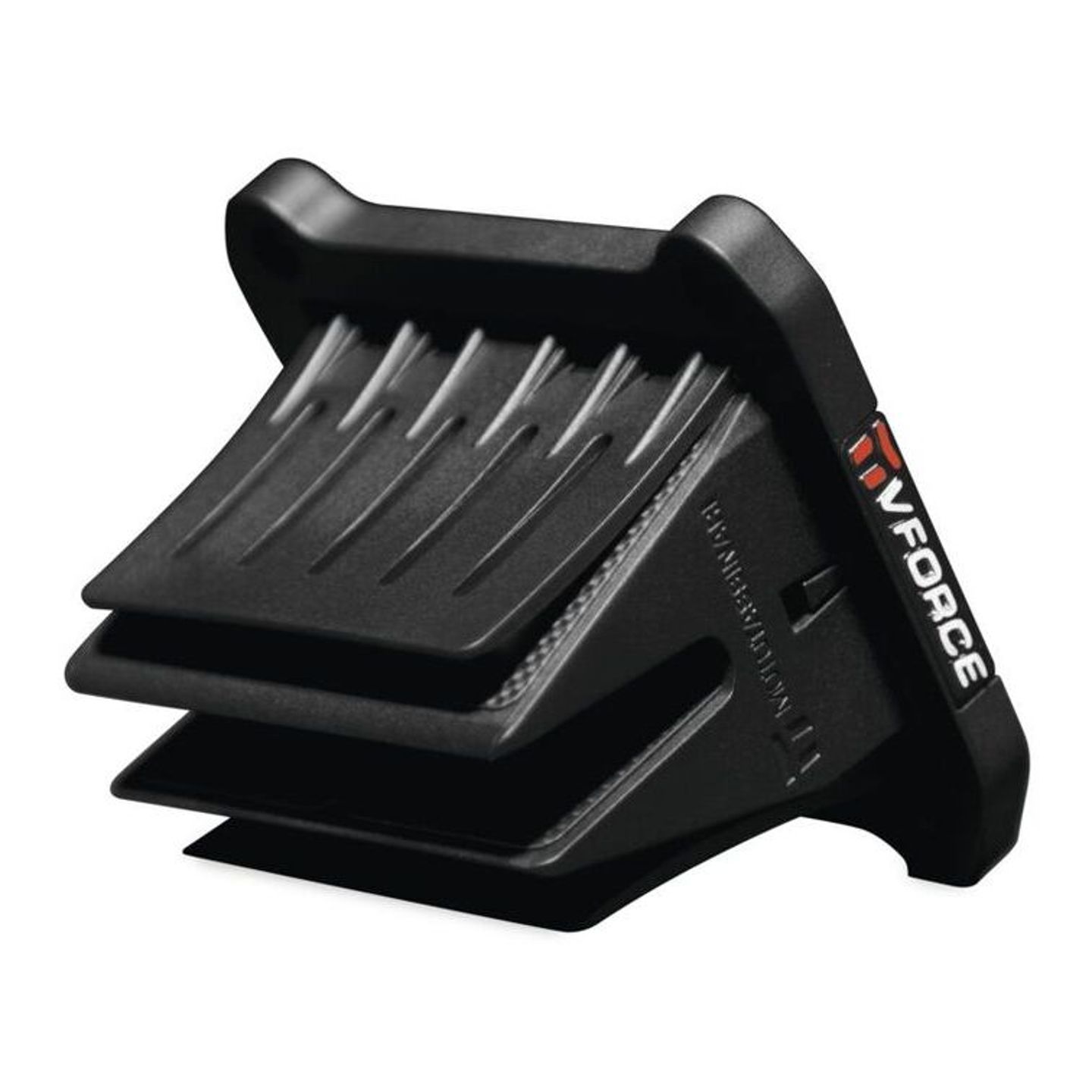

The VForce4 is built upon the solid foundation that made the VForce3 reed valve system such a success. While the VForce3 has been continually refined over the years, this is a complete redesign of the entire system. All the components that go into making a VForce reed valve system have been significantly changed since the VForce3. The reed cage design now incorporates an airfoil shape at the reed tip area to increase air velocity from the outer ports. The Vforce4 also uses an all-new reed petal resin system, carbon fiber and lay-up on the pre-curved reed petals. The benefit of the pre-curved reed petal is better sealing at the tip area. The VForce4 also features longer reed stops to progressively slow petal tip velocity, for increased petal durability. The combined reed tip area has been increased by over 10% resulting in increased total airflow. Finally, the Vforce4 features a reduced frontal area of central wing by 15.6% combined with a more aerodynamic shape.

Features:

• Advanced reed petal resin system, carbon fiber and lay-up
• Pre-curved reed petal ensures better seal at the tip
• Wider reed cage for maximum airflow
• Combined reed tip area is increased by 10.5% for better airflow
• Airfoil shape added to cage tip to increase velocity from the outer ports
• Long reed stops added to progressively slow reed petal tip velocity for increased petal durability
• Reduced frontal area of the central wing combined with a more aerodynamic shape
• Replacement reeds available
• Made in the USA

Note: Images are for reference only, actual product will vary based on make and model.
