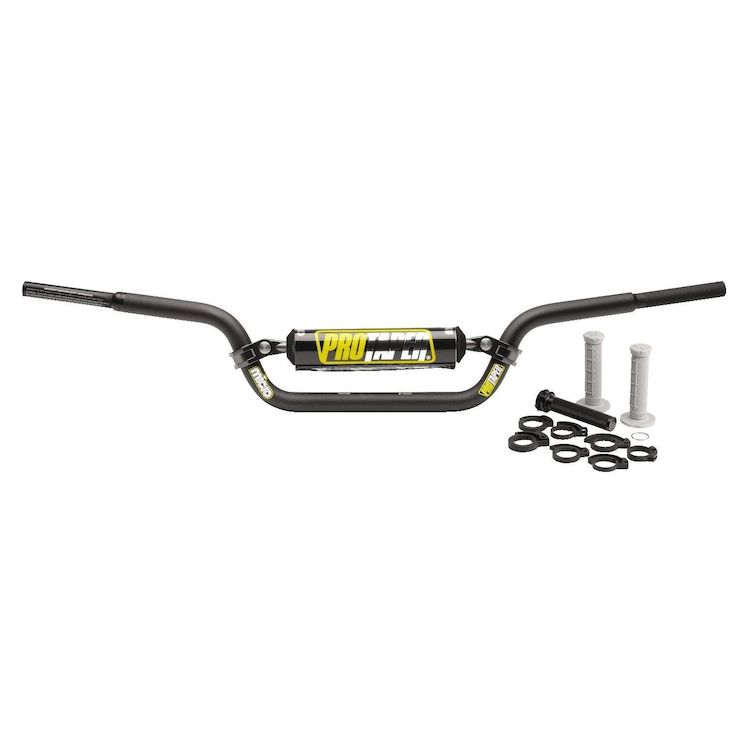

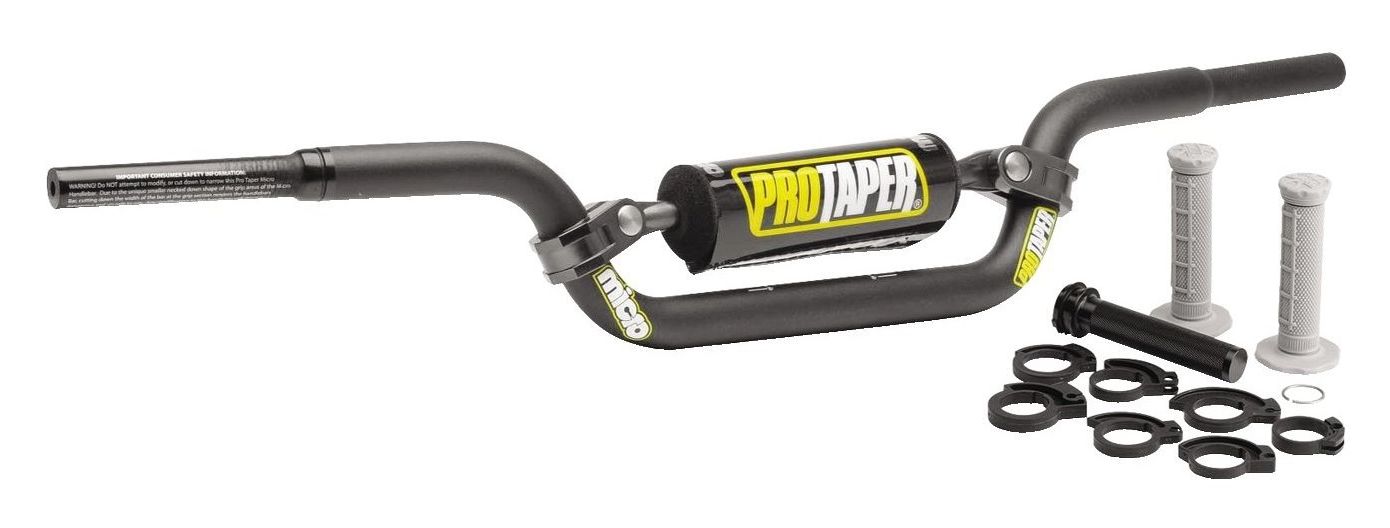

Pro Taper Micro Bar Kit 7/8"
The ProTaper Micro Handlebars employ recent advancements in manufacturing techniques to offer a downsized diameter handlebar for youth riders to better grasp while riding and racing. The unique design of the Micro handlebar utilizes an abrupt-taper, to give it a smaller diameter in the handhold areas while still maintaining a 7/8” diameter throughout the clamping and control areas for maximum durability.
- Handlebars made from a proprietary 2000 series T6 aluminum alloy
- Cross bar made from cold forged aluminum
- Cross bar clamps CNC machined from 6061 aluminum and adhered with aerospace quality polymer
- Handlebar employs high tech, stress relieved, shot peened, anodized finish for unmatched durability
- Left side knurling on handlebar provides maximum grip traction
- Chemically applied graphics on handlebar are scratch and peel resistant
- Micro grips made using soft, synthetic rubber compound in 1/3 waffle pattern
- Two-piece Micro throttle tube made using T6 aluminum alloy, anodized and knurled barrel with seven optional cams
- Includes crossbar pad with cover
|Product||Width (mm)||Height (mm)||Rise (mm)||Clamp Area (mm)||Sweep (mm)||Control Area (mm)|
|Honda Mini Micro||686||114||89||166||45||173|
|KTM 50 Micro||648||80||72||157||44||169|
|Schoolboy High Micro||673||85||60||102||40||177|
|Schoolboy Low Micro||673||75||51||137||42||175|
|Schoolboy Pro Micro||699||79||72||145||46||174|
Measurements are provided by the manufacturer and do not guarantee a perfect fit for your bike.
|Product Style||Item #||Manufacturer Product #||Availability|
|Schoolboy Low Micro||1052806||11-230C||In Stock: Ships next business day|
|Schoolboy Pro Micro||1052807||11-234C||In Stock: Ships next business day|
|Schoolboy High Micro||1052808||11-233C||In Stock: Ships next business day|
|Honda Mini Micro||1052809||11-232C||In Stock: Ships next business day|
|KTM 50 Micro||1052810||11-231C||In Stock: Ships next business day|
