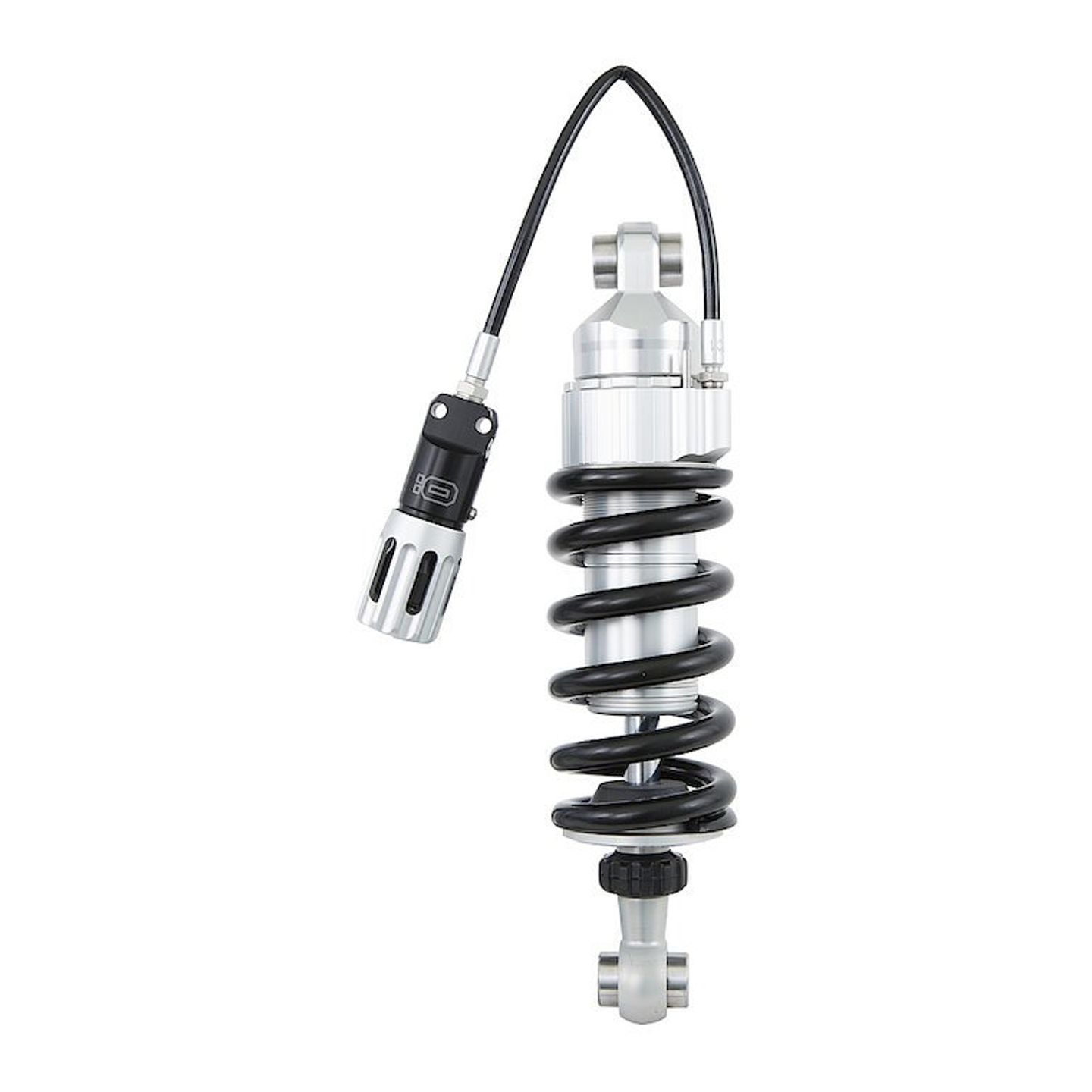

Ohlins STX Performance Rear Shock For Harley Softail With Remote Preload 2018-2024

Ohlins STX Performance Rear Shock For Harley Softail With Remote Preload Adjustment

Ohlin's STX Performance line features divided piston and rebound adjustability. Unlike standard gas over oil systems, Ohlins features a specially divided internal piston which keeps the gas and oil separate. This provides exceptionally consistent performance and avoids fade from use. The external Rebound adjuster allows you to tailor the shock to your preferences and customize the feel for each ride.

Heading to the twisties? Give the adjuster a turn to the right which restricts some oil flow and gives an aggressive feel, great for performance. Need maximum comfort for the long haul? Twist it to the left to increase oil flow and provide a comfortably plush ride. Finally, the hose mounted hydraulic spring preload adjuster makes the adjustments easy to fine tune on the fly.

Features:

• Monotube high pressure gas shock absorber with internal reservoir in the main body
• Adjustable rebound damping with adjuster wheel above the end eye
• Hose mounted hydraulic spring preload adjuster
• STX single tube design
• Built-in adjustable preload
• Multiple spring rates available to accommodate a wide range of riders
• Hard anodized
• Nitrogen charged
• Precision CNC-machined components
• Low-friction piston rod
• Low-friction eyelets
• Serviceable and repairable
• 1.81" piston diameter
• 1.69" stroke
• Includes preload adjuster tool
• Sold as a pair

Spring Weights:

• Light Duty recommended for individual rider weighing under 180lbs
• Standard recommended for individual rider weighing 180lbs - 225lbs
• Heavy Duty recommended for individual rider weighing over 250lbs

​Note: Fat Bob models come with a 13 1/2" Shock, all other models use 12 1/2" from the factory.
