Uh oh - Our system doesn't think this part will fit your 2020 BMW F750GS (change vehicle selection)

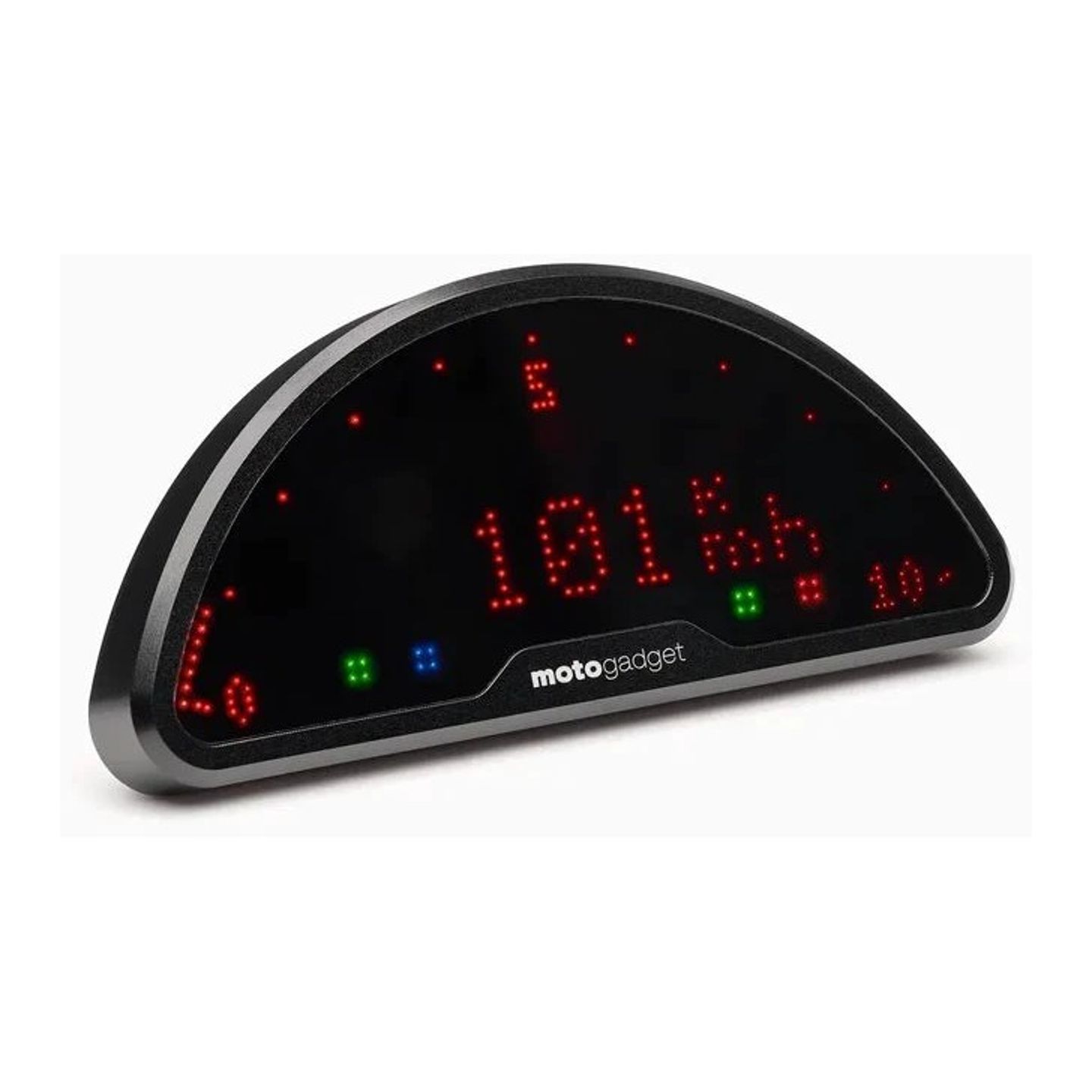

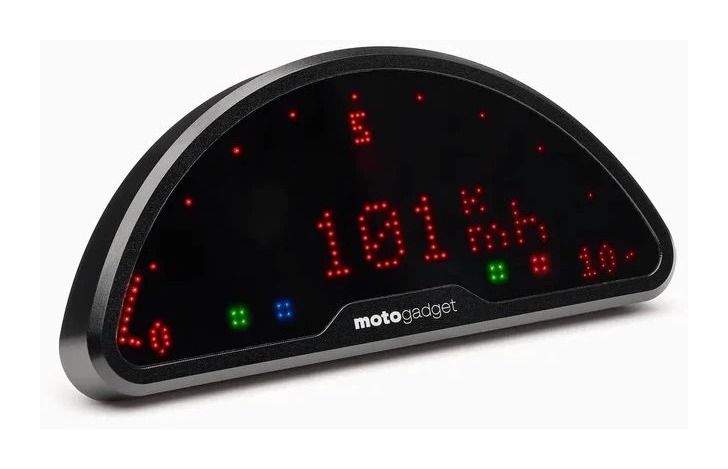

Motogadget Motoscope Pro BMW R Nine T

The latest addition to motogadget's digital dashboard series, the Motoscope Pro, combines state-of-the-art technology with a sleek, ultra-slim design. This advanced instrument panel is highlighted by an impressive 734 LED display, managed by a 16-bit RISC processor for a virtually borderless and self-illuminating screen. The display ensures superior visibility in direct sunlight, helped by an automatic brightness adjustment feature. A standout aspect of the Motoscope Pro is the fully scalable analogue LED band that serves as the rev counter, complete with a drag indicator function. Flexibility is a key attribute of the system; both the main and secondary displays can be personalized by the user. The current gear is distinctly shown on a dedicated display section. Inclusion of four pre-installed indicator lights offers additional functionality, significantly extendable through Breakout Boxes for a broader range of input signals. The product boasts a fully integrated CAN-bus interface, paving the way for future connectivity options like the plug 'n ride Breakout Box Triumph. Designed for a smooth integration, the Motoscope Pro relies on the proprietary m-Bus digital one-wire bus for communicative interaction with additional Breakout Boxes, allowing for an expanded range of uses across numerous vehicles and applications. Crafted from CNC-machined billet aluminium, the dashboard is easily installed via two threaded holes on the backside. The unit comes with an ABE, eliminating the need for registration.

Features and Functions:

  • Operation with original handlebar buttons
  • Setting and display of heated handle levels
  • Setting/displaying riding modes
  • Speed (km/h / mph)
  • Odometer
  • Trip A and Trip B
  • Speed display as bar or number
  • Switching flash (adjustable)
  • Acceleration (g)
  • Time measurement (0-60mph / 0-100km/h)
  • Onboard voltage
  • Travel time in hours/minutes/seconds
  • Operating hours counter
  • Average speed
  • Maximum values RPM, acceleration, speed
  • Reserve
  • ABS
  • Oil pressure
  • Gear indicator
  • Neutral
  • Turn signal
  • High Beam

Specifications:

  • Length, Height, Depth: 109 mm/ 47 mm/ 11 mm
  • Weight w/ cable: ca. 100 g
  • Mounting: 2 x M3 threaded hole
  • Power consumption during operation: max. 200 mA (load dependent)
  • Power consumption in standby: 0.4 mA
  • Operating voltage: 9 V - 15 V
  • Operating temperature: -20°... +80°C

Includes:

  • motoscope pro with ca. 60 cm connector cable
  • 2 stainless steel screws
  • Detailed installation and operating instructions

Note: Cruise control is not supported. BMW Alarm System may not work with Motoscope Pro 2 installed.

Read More

Uh oh - Our system doesn't think this part will fit your 2020 BMW F750GS (change vehicle selection)

This Product Fits:


BMW
R nineT 2017-2023
R nineT 100th Anniversary 2023
R nineT Pure 2017-2023
R nineT Racer 2017-2022
R nineT Scrambler 2017-2023
R nineT Urban G/S 2018-2023
Product Style Item # Store SKU Manufacturer Product # Availability
Product Style Motogadget Motoscope Pro 2 BMW R Nine T 2017-2023 Item # 10400312 Store SKU Manufacturer Product # MG1005102 Availability Available: Ships in 3-5 business days
