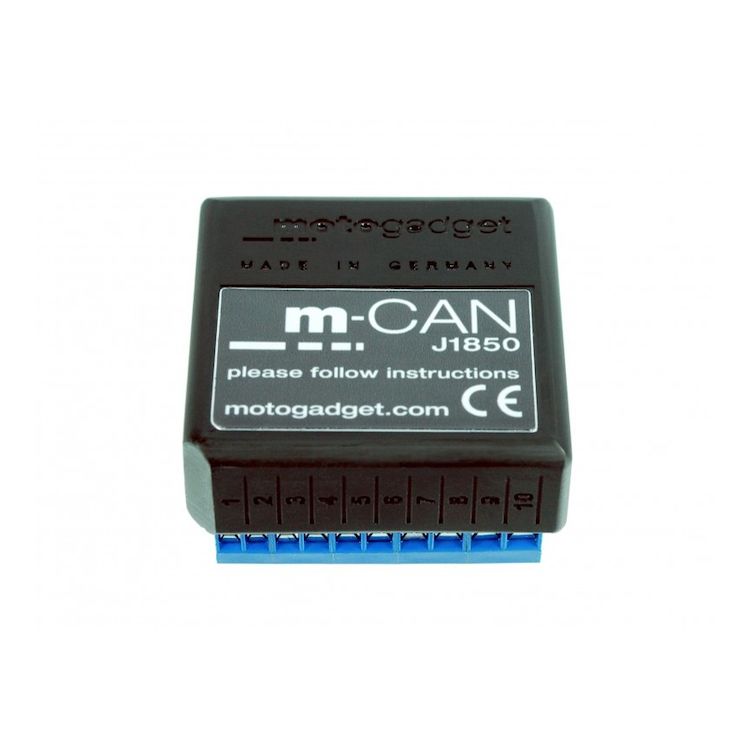

Motogadget M-Can J1850 Signal Converter For Harley Sportster

The Motogadget M-Can J1850 Singal Converter is a digital adapter for the hassle-free connection of Motogadget instruments and indicator lights to the stock wiring harness.  No soldering or crimping necessary, so the warranty remains intact. You will receive the specific plug connectors required for the connection to the stock wiring harness of the Harley-Davidson Model you selected. Just connect the wires of the instrument, indicator lights and of the included plug connector with the screw joints of the m-CAN J1850. Then plug this side of the plug connector into the specific connector of your bike, and you are ready to go. Almost plug ’n ride, it doesn’t get any easier.

Includes:

• m-CAN J1850 adapter with specific plug connector
• 32 connection terminals, 2 x M3 mounting screws
• 32 cable end sleeves
• Plastic sheet for fixing and anchoring the cables
• 2 cable ties

Specifications:

• Length, Height, Depth without plug connectors: 72 mm / 42 mm / 26,5 mm
• Weight including plug connectors and Cables: approx. 70 g
• Plug connectors: model specific, see pictures
• Fastening with two mounting screws M3

Features:

• Speed
• RPM
• Controls indicator lamp for MIL (check engine warning)
• Controls indicator lamp for turn signals
• Controls indicator lamp for high beam
• Controls indicator lamp for oil pressure
• Controls indicator lamp for fuel reserve
• Controls indicator lamp for alarm

Not Available:

• Indicator lamp for ABS (if existing)
• Indicator lamp for 6. gear (if existing)
• Indicator lamp for battery charge indicator (if existing)
• Fuel gauge (if existing)
