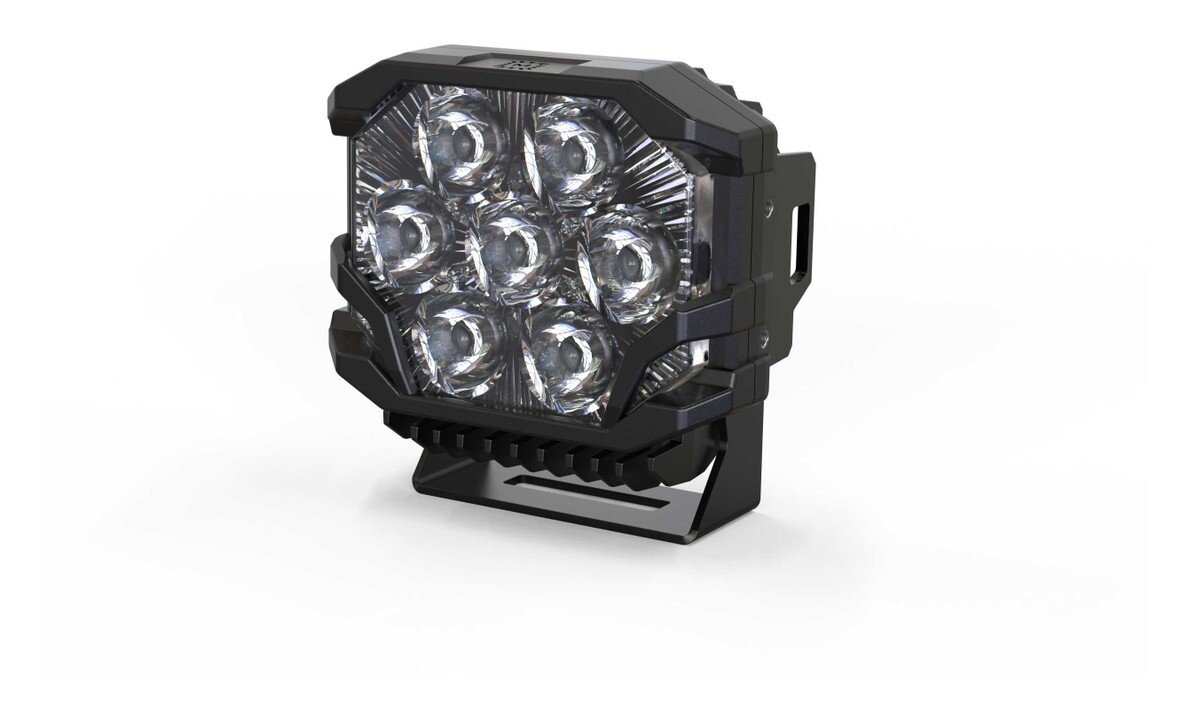

Morimoto BigBanger HXB LED Pod Light

Morimoto BigBanger HXB LED Pod Light

The Banger Series of Morimoto LED Light Pods are pushing the limits of off road lighting to a whole new level. Meticulously engineered Makrolon polycarbonate lenses maximize the efficiency and output of lumen-dense Nichia and Osram LEDs, resulting in a high performance light with a wide range of lighting characteristics. A robust aluminum weather resistant housing works in tandem with a specially designed copper DTP (direct thermal path) PCB to optimize heat transfer, ensuring peak performance and longevity even when operating the pods in the most extreme environments.

Morimoto's HXB high performance tier pushes the boundaries even further by integrating the most powerful Osram LEDs available. The BigBanger HXB LED Light Pods house 12 amber backlighting LEDs along with 7 main high power LED chips in each pod. The end result is a light system that produces well-over half a million Candela. By adding BigBanger Pod-Links and Bar-End Mounting Feet (sold separately) multiple BigBanger Pods can be linked together to form a BangerBar. The BangerBar is the ultimate in high power fully customizable lightbars.

Specifications:

• Raw Lumens: 7000
• Operating Voltage: 9-18V DC
• Power: HXB 77W, Backlight 16.5W (High) / 3.8W (Low)
• Current Draw: 5.7A @ 13.5V DC
• Pod Dimensions (W x H x D): 154mm x 137.7mm x 76.1mm
• IP Rating: IP69K (Dust / High Pressure Water Resistant)

Features:

• Spot or Combo Beam optics
• Amber backlighting
• High performance Makrolon polycarbonate lens
• Optimized thermal dynamics
• Powdercoated die cast aluminum housing
• Shell is electroplated before powder coating to strengthen the finish and resist flaking
• Universal fit with included U-Brackets for stand alone application
• Stainless steel installation hardware
• Sold individually
• 4-Pin Deutsch DT harness connector sold separately
• Multiple pods can be linked together using BigBanger Pod-Links, Middle Support Legs and Bar-End Mounting Feet (sold separately)
