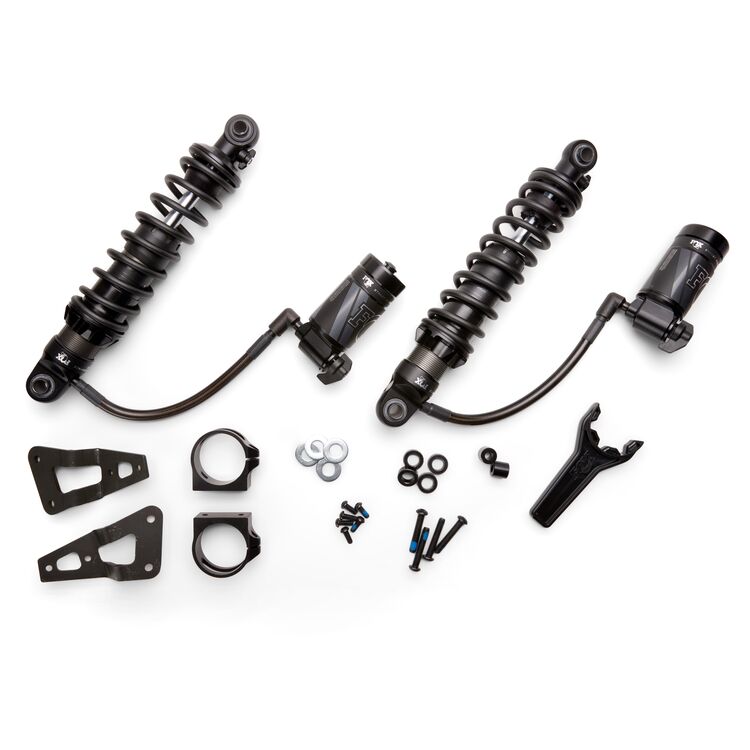

Fox Factory QS3-QSR Remote Reservoir Shocks For Harley Touring 1993-2026 Heavy Duty / 13" [Open Box]

Name: Fox Factory QS3-QSR Remote Reservoir Shocks For Harley Touring 1993-2026 Heavy Duty / 13" [Open Box]
Brand: Fox Factory
SKU: 10572090
Price: 1439.99 USD
Availability: OutOfStock
Rating: 4.00 (5 reviews)

Read 5 Reviews Write a Review

The Indian Larry Twisted Frame Chopper | J&P Custom Motorcycle Builds

Fox Factory QS3-QSR Remote Reservoir Shocks For Harley Touring 1993-2026 Heavy Duty / 13" [Open Box]

Fullscreen Zoom

View Video

$1,439^.⁹⁹

$1,599.99

Save $160.00 10%

Fast Lane

Type: Heavy Duty Size: 13"

Blemished/Refurbished

This item is available as a Blem/Refurb. These are items that cannot be sold as "New" merchandise and are limited to stock on hand. See the product details for a description of the product's condition.

Members get up to $87.00 in total value. Join Now

Ships Free to Cycle Gear Stores!

The Cycle Gear Difference

Free Shipping Over $49^.⁹⁹
30-Day Best Price Guaranteed
No-Hassle Returns View Details

Fox Factory QS3-QSR Remote Reservoir Shocks For Harley Touring 1993-2026 Heavy Duty / 13" [Open Box] Instructions

Tuning_Guide_.pdf

Item Condition: This is a new item that is missing the original packaging or the packaging has been opened. Tags, manuals, or installation instructions may be missing, however the item is fully functional.

Fox Factory QS3-QSR Remote Reservoir Shocks For Harley Touring

The QS3-QSR is the top dog in Fox's V-Twin suspension line, with remote reservoirs and IFP technology, it's no surprise why more and more riders are choosing Fox Factory Shocks for their Harley!

Remote reservoir shocks have become a nearly mandatory upgrade for riders that push their baggers hard, and Fox makes one of the best in the business! Remote reservoirs increase the fluid capacity of your shock absorbers and improve cooling by mounting these reservoirs in the cool air flowing over your saddlebags. Just like your brakes, heat is the enemy of your shock absorbers, if you keep them cool, they will provide more consistent performance so you can push hard without finding the limits of your machine.

Fox packs these shocks with two incredibly useful hydraulic adjustments QS3, which is a 3 position compression damping arm and QSR which offers 3 rebound settings.

The QS3 (Quick Switch Compression) damping lever is mounted right on the reservoir making for effortless adjustments between three specific settings: maximum comfort, extra support for hard acceleration, or most responsive for precise handling. These adjustments also come in handy when you pick up or drop off a passenger.

Quick Switch Rebound (QSR) settings make it easy to dial in the correct rebound rate for different riding situations: comfort for bumpy backroads, any road balance of control and comfort, and a glued to the asphalt setting for smooth twisty roads.

In addition, the remote reservoirs house internal floating pistons to separate the nitrogen gas from the shock oil, meaning the QS3-QSR remote reservoir shocks will maintain damping control no matter how long you ride.

Features:

Model-specific optimized ride tune
QS3 - 3 position quick switch compression adjust
QS3 - 3 position quick switch rebound adjust
Aluminum remote reservoir
Includes fender mounting hardware (for 2014 and later bikes)
Exclusive Preload setting guide marks
Includes easy to use non-marring plastic preload adjust wrench
Gas-charged mono-tube with internal floating piston (IFP)
1 1/2” 6061-T6 aluminum type III hard anodized body
Fully rebuildable and re-valvable
Advanced high-flow, deflective speed-sensitive damping
5/8” low friction, super-finished hard chrome shaft

Note: Heavy duty springs for riders and loads over 240 lbs. Included reservoir bracket is for 2014 and newer models only. 2013 and older bikes will need a custom mounting solution. 14" shocks require a shorty style exhaust for clearance.

Included reservoir bracket is for 2014 and newer models only. 2013 and older bikes will need a custom mounting solution.
Depending on model, your stock shock length is 12" to 13"
Shock lengths are measured fully extended, eyelet to eyelet on centers
A change in height at one end of the bike may require a change at the other
14" shocks require a shorty exhaust that ends before the lower shock mounting bolt
Changing ride height can potentially change the trail and mechanical trail
Prior to purchasing shocks that are different than your OEM length, please verify that wheel and suspension travel can be altered without causing clearance issues to the swingarm, axle, frame, tire, fender, chain/belt and guard, and exhaust
Heavy duty springs for riders and loads over 240 lbs.

Product Style	Item #	Store SKU	Manufacturer Product #	Availability
Product Style 13" / Heavy Duty	Item # 10572090	Store SKU	Manufacturer Product # 897-27-311	Availability Out of Stock: Enter your email address below to be notified when this item is available.
