Contact UsFox Factory Performance Series 2.0 Coil-Over QS3 Shocks Honda Pioneer 1000 2016-2026
- Free Shipping Over $49.99
- 30-Day Best Price Guaranteed
- No-Hassle Returns View Detailsof our return and refund policies

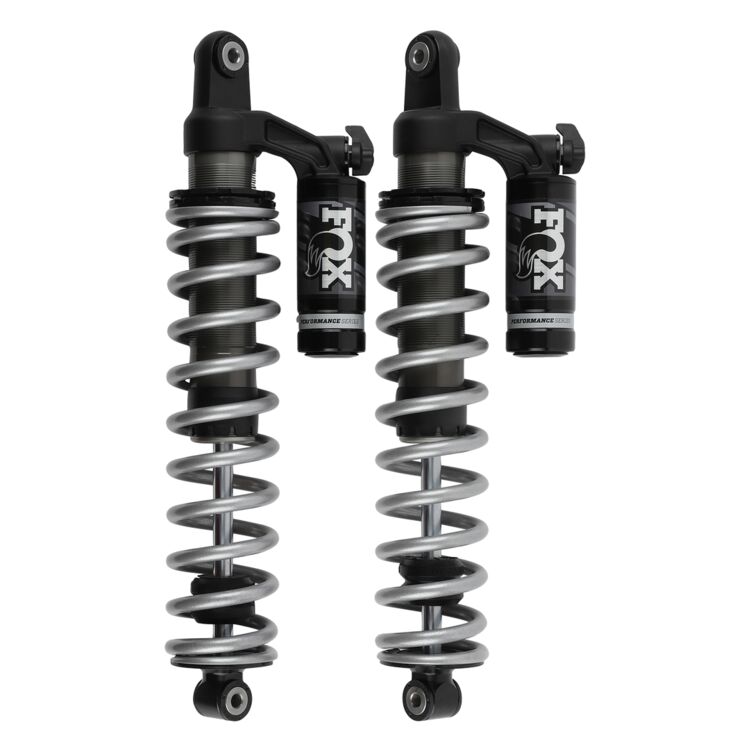

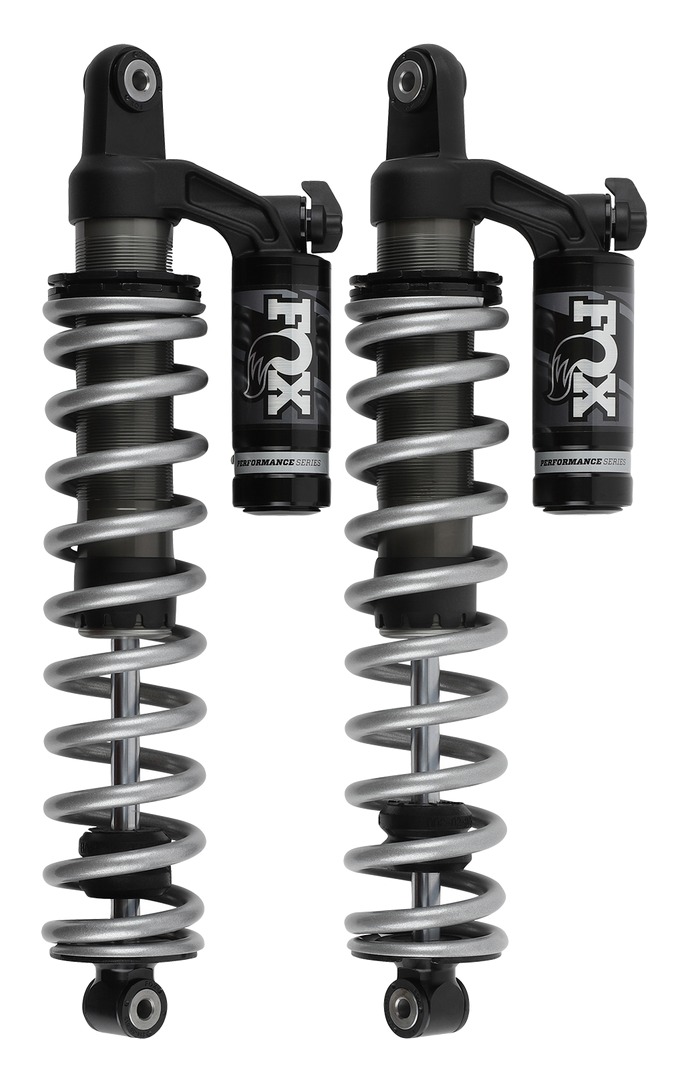

Fox Factory Performance Series 2.0 Coil-Over QS3 Shocks Honda Pioneer 1000
The FOX Performance Series 2.0 Podium QS3 shock kit is meticulously engineered to replace the original shocks and springs on UTVs or Side-by-Sides. The product incorporates an internal floating piston (IFP) within the piggyback reservoirs to prevent the gas charge from blending with the shock oil, maintaining the oil's viscosity and ensuring reliable damping performance through the harshest terrains such as washboards, rocks, and large dips. The spring configuration features single-rate springs at the front and dual-rate at the rear, optimizing comfort and preventing bottoming out when navigating at high speeds over rugged landscapes. This design facilitates a smooth ride that is on par with factory settings, while confidently managing more challenging conditions. Equipped with the Quick Switch 3-position compression damping adjustment, the shocks offer versatility for a range of terrains and loads. Riders can select setting 1 for a plush ride on gentle trails or when rock crawling, setting 2 for increased firmness when carrying additional weight, and setting 3 for the utmost bottom-out prevention during high-intensity activities such as jumping or desert racing. Constructed for endurance, the FOX Podium 2.0 QS3 shocks are robust, with hard-anodized aluminum bodies and reservoirs that withstand corrosion, 5/8-inch hard chromed shafts for seamless operation and extended seal longevity. They are fully rebuildable, allowing for repairs or specific ride customizations, securing a lasting solution for various riding demands.
Features:
- Sold as a pair
- High-flow velocity-sensitive damping
- Fully re-buildable and re-valvable
- Ultra-durable bottom-out bumper
- 2.0” Type III hard-anodized aluminum body and reservoir
- 5/8” hard-chromed shaft
- Standard or Heavy-Duty spring rate
- Adjustable spring load
Adjustments / Technical Information:
- Front Extended Length: 19.65
- Front Compressed Length: 13.75
- Front Travel: 5.90
- Rear Extended Length: 20.00
- Rear Compressed Length: 14.00
- Rear Travel: 6.00
- Top Mount: Eyelet
- Bottom Mount: Eyelet
- Reservoir: Piggyback
Note: Replaces Fox Factory Part Number: 885-06-140
| Product Style | Item # | Store SKU | Manufacturer Product # | Availability |
|---|---|---|---|---|
| Product Style Front | Item # 10437078 | Store SKU | Manufacturer Product # 885-06-140-2 | Availability Only 1 Left: Ships within 24 hours |
| Product Style Rear | Item # 10437079 | Store SKU | Manufacturer Product # 885-06-142-2 | Availability Only 1 Left: Ships within 24 hours |
