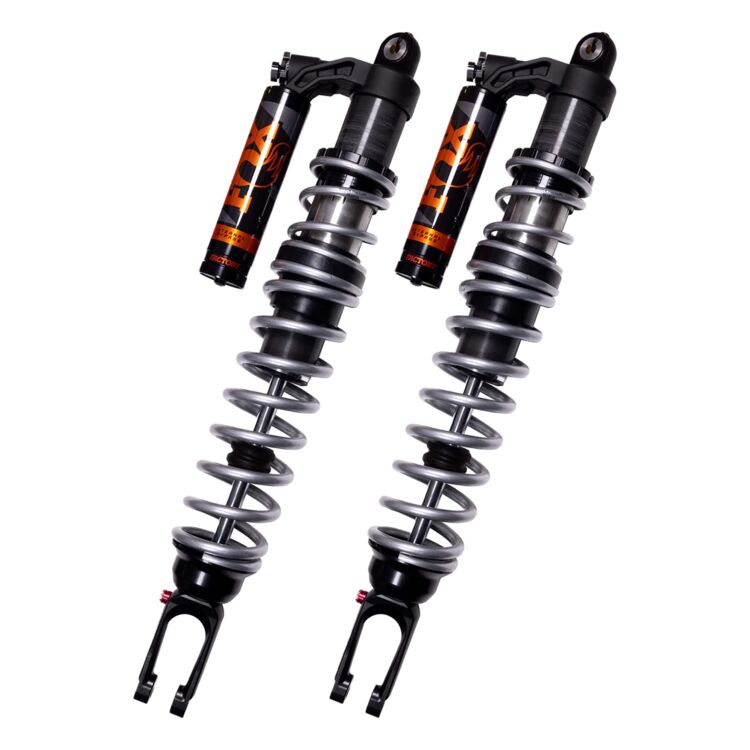

Fox Factory Factory Race Series 3.0 Internal Bypass Front Shocks Polaris RZR Pro R 4 2022-2023

Fox Factory Factory Race Series 3.0 Internal Bypass Front Shocks Polaris RZR Pro R 4

Fox Factory has engineered a cutting-edge solution for UTV/Side-by-Side enthusiasts seeking trophy-truck caliber performance. The product features a larger shock bore diameter, enhancing its resistance to fade and improving velocity-sensitive damping, providing sustained resistance during repetitive impacts. Constructed with lightweight aluminum bodies and reservoirs, it allows for weight reduction without compromising on durability. The product is designed with customization in mind, featuring independent adjusters for both high- and low-speed compression, along with wide-range rebound adjusters. Add to that a dual-rate spring package with adjustable crossover rings, riders have the ability to fine-tune their suspension to achieve peak performance. Incorporating Fox's proprietary Internal Bypass technology (IBP), this advanced damping system adjusts fluid flow based on piston position within the shock. Enjoy a gentler ride over rough terrain due to lighter damping in the mid-stroke, coupled with substantial damping increases at the extremes, mitigating risks of bottoming out or damage from spring unload. This technology promises to deliver precision control and handling over diverse off-road conditions.

Features:

• Position-sensitive internal bypass damping tubes
• Velocity-sensitive valved, high flow damping piston
• Piggyback reservoir or Remote reservoir
• Carbon Black dual rate race springs with crossover
• 7/8” hard-chromed induction-hardened shaft
• PTFE-lined spherical bearings for smooth, durable movement
• Type III hard-anodized aluminum body and reservoir
• Sold as a pair

Adjustments/Technical Information:

• Spring preload
• Dual-Speed Compression (DSC)
• Wide-range rebound
• Spring crossover
• Extended: 35.52
• Compressed: 24.22
• Travel: 11.30
• Top Mount: Eyelet
• Bottom Mount: Clevis
• Reservoir: Piggyback

Note: Images are for reference, actual product may vary based on application
