Feuling 508 Race Series Cam Chest Kit For Harley Twin Cooled Milwaukee Eight 2017-2025

Name: Feuling 508 Race Series Cam Chest Kit For Harley Twin Cooled Milwaukee Eight 2017-2025
Brand: Feuling
SKU: 10365369
Price: 1995.95 USD
Availability: InStock

Write a Review

Feuling Camchest Kits Overview

Feuling 508 Race Series Cam Chest Kit For Harley Twin Cooled Milwaukee Eight 2017-2025

Fullscreen Zoom

View Images (2)

View Video

$1,995^.⁹⁵

Fast Lane

Type: Chain Drive / Short Travel Lifters / One-piece pushrods

Blemished/Refurbished

This item is available as a Blem/Refurb. These are items that cannot be sold as "New" merchandise and are limited to stock on hand. See the product details for a description of the product's condition.

Ships Free to Cycle Gear Stores!

The Cycle Gear Difference

Free Shipping Over $49^.⁹⁹
30-Day Best Price Guaranteed
No-Hassle Returns View Details

Feuling 508 Race Series Cam Chest Kit For Harley Twin Cooled Milwaukee Eight 2017-2025 Instructions

Instructions.pdf

Feuling 508 Race Series Cam Chest Kit For Harley

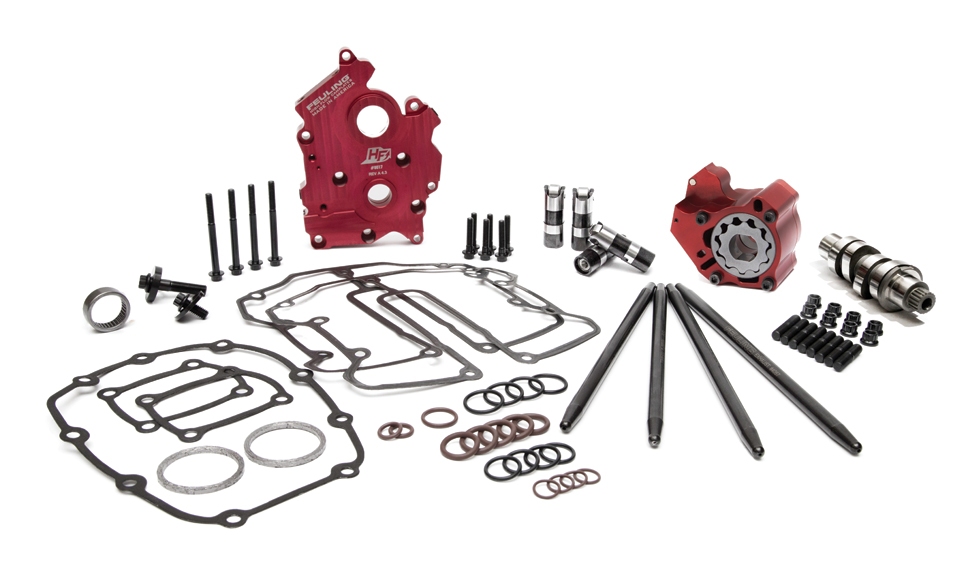

These combination kits not only ensure each individual part is designed to work and function together but to do so in total harmony. Feuling® camchest kits include all necessary components from top to bottom of the camchest. They take the guess work out of the ordering process and guarantees the engine builder maximum reliability, peak performance and the coolest engine and oil temperatures obtainable. Kits include a Race Series® billet 7075 aluminum oil pump which is 50% harder and stronger than the factory pump holding tighter tolerances under temperature, Race Series® hydraulic lifters that have a full .200 of total travel designed with a slower bleed down rate to handle heavy valve spring pressures, increase engine RPM before valve float and feature increased roller clearance for steep ramped camshafts and clearance for the Milwaukee Eight front exhaust camshaft lobe flange, and a High Flow billet 7075 aluminum camplate.

Features:

Quieter and smoother engine operation
Increase oil pressure, scavenge volume and engine oil flow
30% more pressure gear volume over stock
53% more scavenge gear volume over stock
42% more scavenge volume with port sizing, matched passages and holes to the engine case
68% more oil volume to the crankshaft and connecting rod bearing
15-25 degree cooler engine temperatures
15-30 degree cooler oil temperatures
10-30 more PSI of oil pressure
Reduces wet sumping, blow by and oily air cleaners
Magnets in oil pump to help protect gears and pressure relief valve
Test results show 2 HP gain and 2 ft/lbs of TQ gain to the rear wheel
Made in the U.S.A.

508 Cam Info:

508 Cam is also known as The Grim Reaper with aggressive pulling power with a nasty sound. This camshaft revs up faster than the 521 grind, sounds nastier and pulls harder but is more difficult to tune. The Reaper 508 grind will shine in 114 and larger cubic inch engines with added compression ratio. Ported cylinder heads are not required but will complement the cam and add even more pulling power throughout the range. The stock throttle body produces an excellent powerband and use of a high flow throttle body will increase peak power numbers. A high flow exhaust system and air cleaner is highly recommended for optimal performance. RPM range 2,250-5,900

Intake open/close 20.5°/37°
Exhaust open/close 44°/17.5°
Intake duration 237°
Exhaust duration 241.5°
Intake Lift .508"
Exhaust Lift .511"
