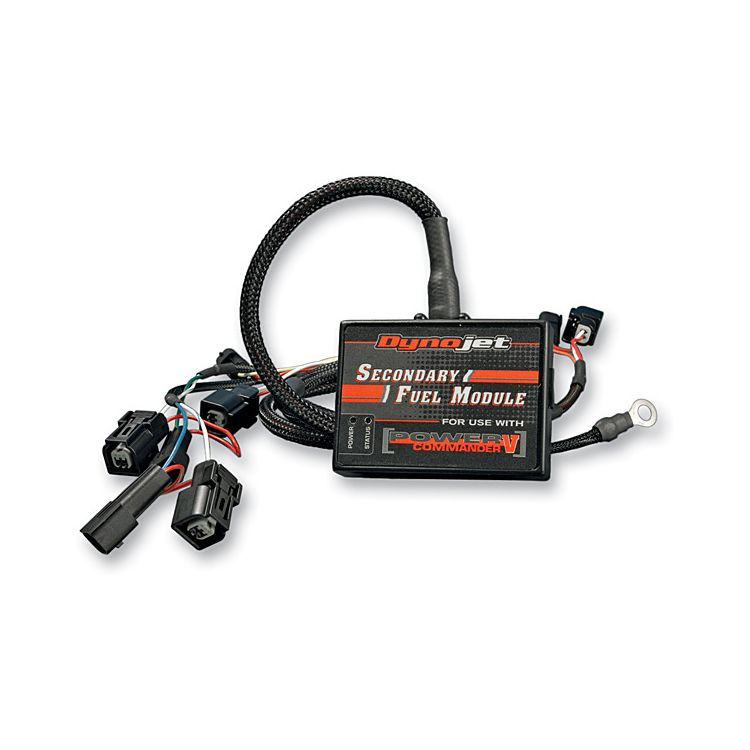

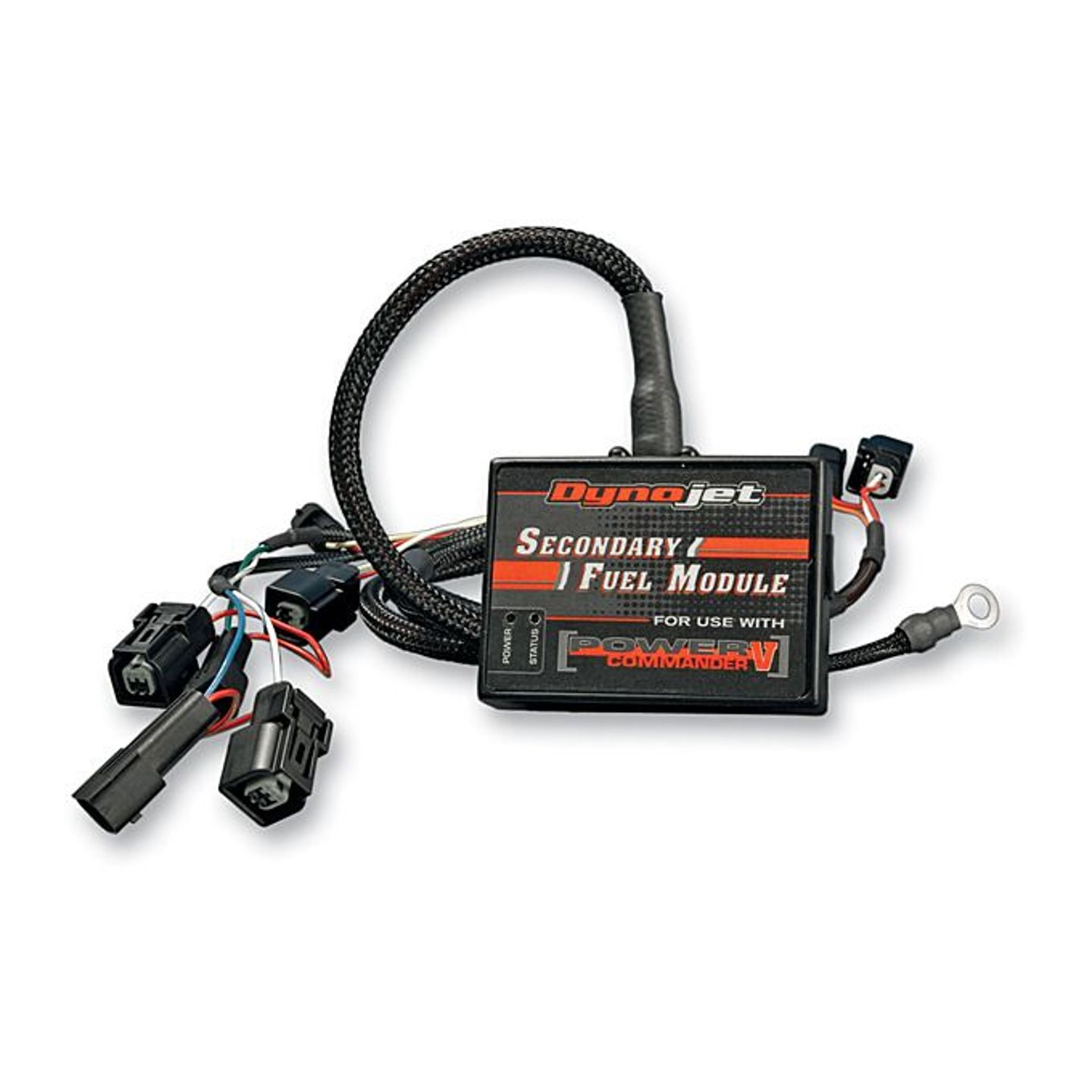

Dynojet Power Commander V Secondary Fuel Module Yamaha R6 / R1 2008-2016

Dynojet Power Commander V Secondary Fuel Module Yamaha R6 / R1

Most of today’s high performance, four cylinder sportbikes have two injectors per cylinder. The PCV connects to 4 of those 8 injectors and in virtually all cases allows for more than enough adjustability for all but the most radically altered engines. However, Dynojet has recognized that there are people building heavily modified engines (extreme big bore, turbo, etc) that may require the adjustment of all 8 injectors. Enter the Power Commander V Secondary Fuel Module. The S.F.M. connects to the upper injector rail using OEM connectors. From there, it is only a single cable connection to the PCV. Once connected, you will be able to adjust both upper and lower injectors by as much as +250/-100%.

If the gear position input is connected on your PCV it will enable the SFM to adjust all of the injectors on a per gear basis, as well as the ability to map each injector separately. This means you can load up your PCV with up to 48 complete maps!

The Dynojet Secondary Fuel Module also features a basic mode that allows you to have a single fuel table that inputs fuel changes in both upper and lower injector modules simultaneously. This makes it easy if you have a modified engine that requires more fuel than 4 injectors can provide, but does not need the complexity of mapping each cylinder and each gear separately.

Features:

• Allows for the adjustment of all eight injectors
• OEM style injector connectors
• Single cable connection to the PCV
• Adjust both upper and lower injectors by as much as +250/-100%
• Up to 48 complete maps
• Made in the USA
