Denali D4 2.0 CANsmart Plug-N-Play Lighting Kit KTM 1090 / 1190 Adventure / R 2013-2019

Denali CANsmart Plug-N-Play D4 2.0 TriOptic LED Lighting Kit KTM 1090 / 1190 Adventure / R

This is a complete kit that includes a set of Denali D4 2.0 LED driving lights, a bike specific mount and a Denali CANsmart Controller that enables you to control your Denali lights using your OEM KTM switches. The D4 2.0 is a premium ADV lamp with a 625 x 140 foot flood/spot combo beam spread and a 4,380 total lumen output. The CANsmart Controller allows you to fully integrate these aftermarket lamps with the existing handlebar switches on your KTM and it can support additional accessories like another set of driving lights, an auxiliary horn and an additional brake light should you want to go farkle-crazy in the future.

Includes:

• Denali 2.0 Plug-N-Play CANsmart Controller
• Denali Auxiliary Light Mount
• (2) Denali D4 2.0 TriOptic LED Lamps With DataDim Technology

Denali D4 2.0 TriOptic LED Light Kit Features:

• (4) 10 watt Cree XPL HI LEDs per lamp
• 8760 lumens
• 800' L x 110' W maximum spot lens range
• 625' L x 140' W maximum flood / spot combination lens range
• Clear D4 polycarbonate impact-resistant flood / spot combination lens
• Optional spot only lenses included
• Integrated cooling fins
• Durable black powder coated finish
• Low profile hinge mount
• Stainless steel mounting hardware kit
• 3.9" diameter x 2.6" L
• 6.6 amp draw total

CANsmart Features:

• Offers custom control of your electrical accessories
• 4 dedicated circuits pre-programmed to control two sets of auxiliary lights, an auxiliary horn and an auxiliary brake light (10 amps continuous on either circuit, 30A max total system)
• Each circuit is electronically fused and preconfigured to use right out of the box
• Features dozens of customizable settings that can be controlled with the factory KTM switches or CANsmart Accessory Manager Software
• Two light circuits allow independent adjustment of high / low beam brightness with your KTM switches
• Flash to pass and strobe when horn active can strobe your auxiliary lights when you pulse the high beam or sound your horn
• Compatible with the DENALI B6 Auxiliary Brake Light for integrated running light, multiple flash pattern, deceleration and activated braking functionality
• Permits use of auxiliary horn like the DENALI SoundBomb without having to add a relay or dedicated horn wiring harness

Auxiliary Light Mount Features:

• Precision laser cut steel bracket
• Powder coated black finish
• Utilizes OEM mounting points without modifications
• Provides a secure foundation for mounting auxiliary lights
• Positions auxiliary lights inboard of most crash bars

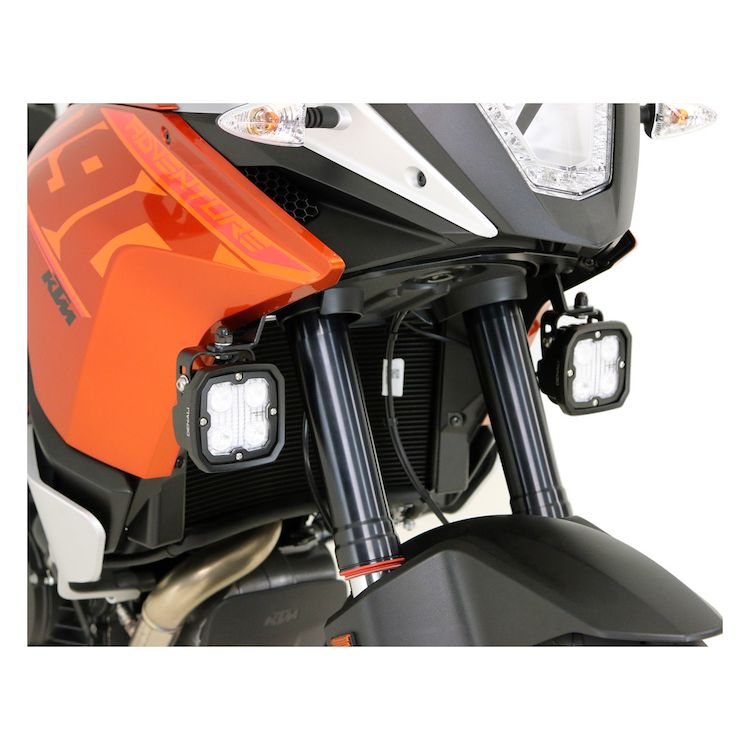

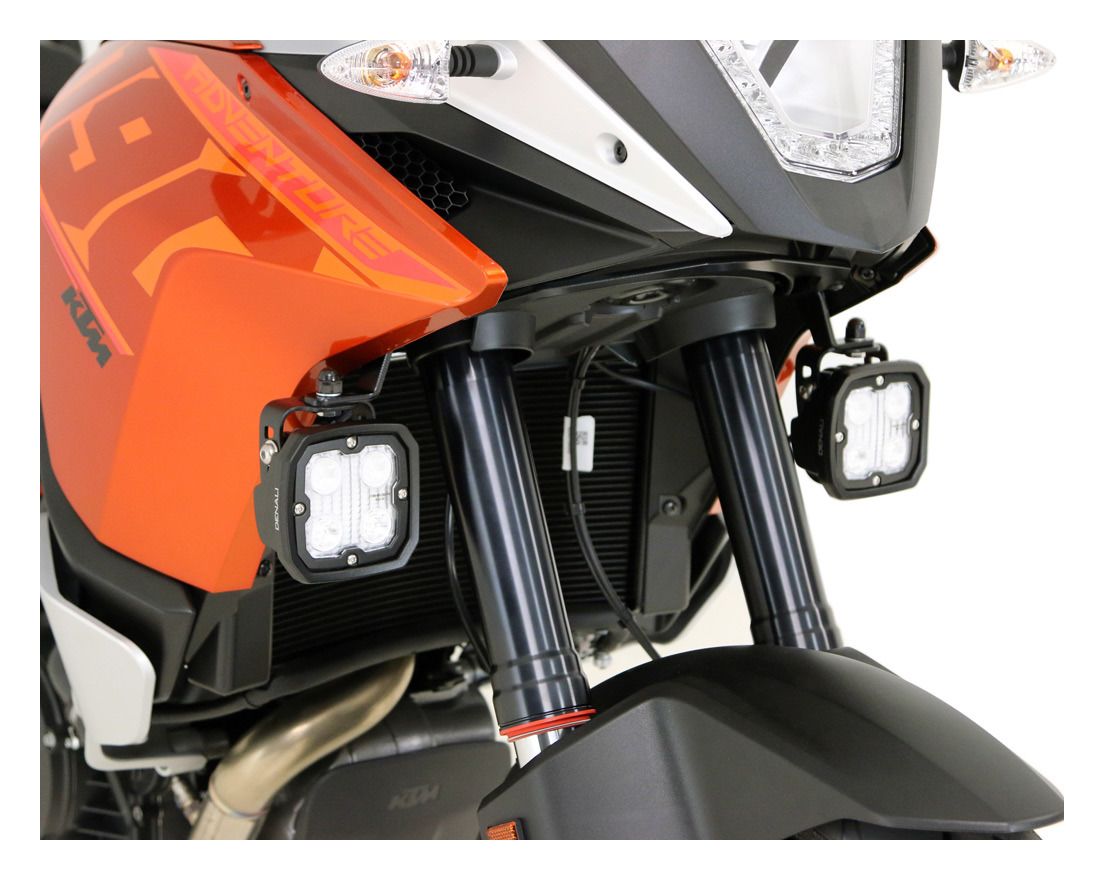

Note: Installed images show previous generation Denali lamps for scale. 2.0 series lamps are the same physical size, but that's where the similarities end. The Denali 2.0 DataDim Dual-Intensity Controller is not needed with this kit.
