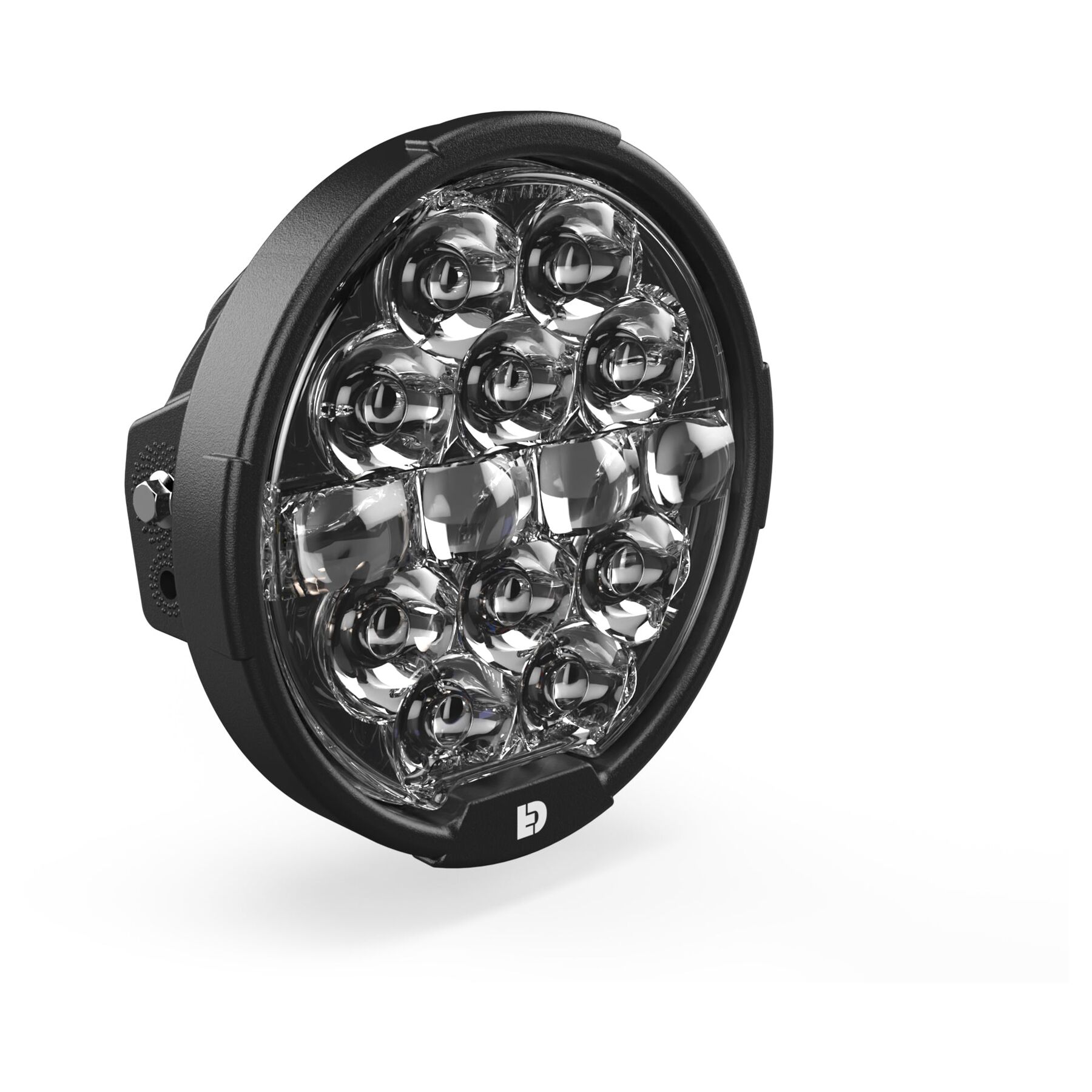

Denali D14 Destroyer LED Headlight

Denali D14 Destroyer LED Headlight

The D14 Destroyer LED Headlight represents the pinnacle of motorcycle lighting technology, delivering unmatched performance and features. It combines advanced optics with innovative beam control technology to enhance visibility, whether on city streets or off-road trails. At the core of the D14 are fourteen high-intensity LEDs that generate an impressive 12,900 raw lumens. Riders can select a DOT-compliant high beam for legal road use or activate the full "Destroyer" high beam mode for optimal illumination when needed. This headlight projects a broad beam pattern capable of reaching up to 1,500 feet ahead while providing a substantial beam width of 230 feet. Additionally, the D14 features Denali's modular X-Lens system, offering the ability to customize the low beam color with various optional lens kits. Its slim housing is designed for universal mounting, allowing installation with or without a traditional headlight bucket, making it suitable for custom builds, scramblers, adventure bikes, and streetfighters. Constructed to endure extreme conditions, the D14 boasts a durable waterproof design rated to IP68 and IP69K standards, along with advanced EMC protection to safeguard against interference with vehicle electronics and controls.

Features:

• Produces up to 12,900 raw lumens
• Dual high-beam design allows selection between DOT-compliant and Destroyer modes
• DOT/SAE-compliant high and low beam operation
• ECE-compliant high and low beam capability for international applications
• Destroyer mode projects light up to 1,500 ft with a beam width of 230 ft
• Modular X-Lens system allows low-beam color customization with optional lenses
• Universal mounting design works with or without a headlight bucket
• Ultra-slim housing profile simplifies installation on custom applications
• Easy-adjust design allows headlight aiming without disassembly
• EMC R10 and CISPR 25 compliant for interference-free operation
• IP68 and IP69K waterproof, submersible, and high-pressure spray resistant
• Operating voltage: 9-32 VDC
• Maximum power draw: 105W / 8A
• Dimensions: 6.75" diameter x 3" deep
• Weight: 2 lbs

Beam Performance:

• Destroyer Mode Output: 12,900 raw lumens
• Destroyer Mode Beam Distance: 1,500 ft (457 m)
• Destroyer Mode Beam Width: 230 ft (70 m)
• DOT High Beam Output: 7,675 lumens
• DOT High Beam Beam Distance: 850 ft (259 m)
• Low Beam Output: 3,362 lumens
• Low Beam Beam Distance: 530 ft (161 m)

Technical Specifications:

• LEDs: (14x) 8-Watt High-Intensity LEDs
• Maximum Power Draw: 105W / 8A
• Operating Voltage: 9-32 VDC
• Housing Size: 6.75" diameter x 3" deep (171mm x 76mm)
• Weight: 2 lbs
• EMC R10 & CISPR 25 compliant
• IP68 & IP69K waterproof, submersible, and high-pressure spray resistant
• DOT/SAE Compliant & ECE R149 Approved Low Beam
• DOT/SAE Compliant High Beam (Blue Wire)
• ECE R149 Approved High Beam (Orange Wire)

Kit Includes:

• (1x) D14 Destroyer LED Headlight
• (4x) M8 x 20mm Stainless Steel Mounting Bolts (1.25 Thread Pitch)

Note: Image for reference only. X-Lenses sold separately.
