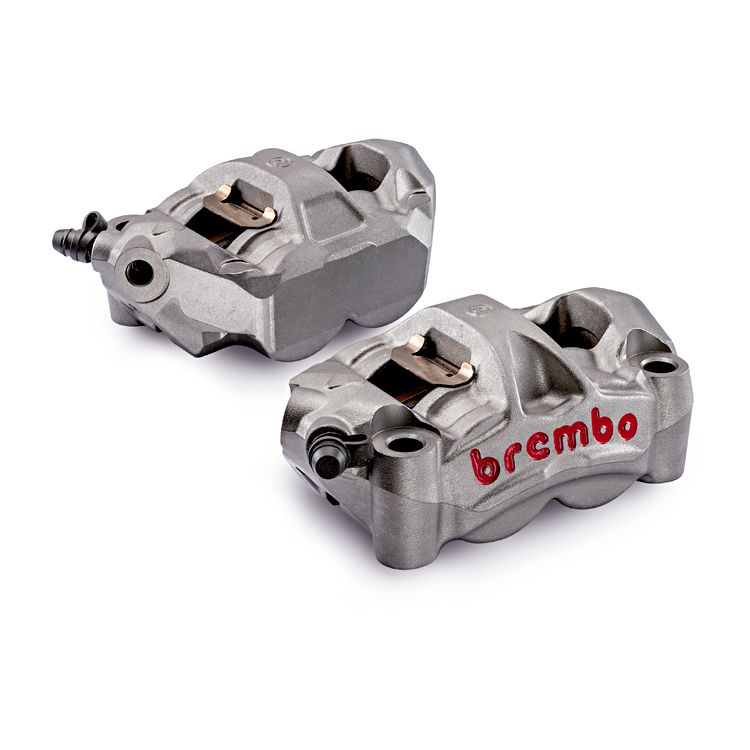

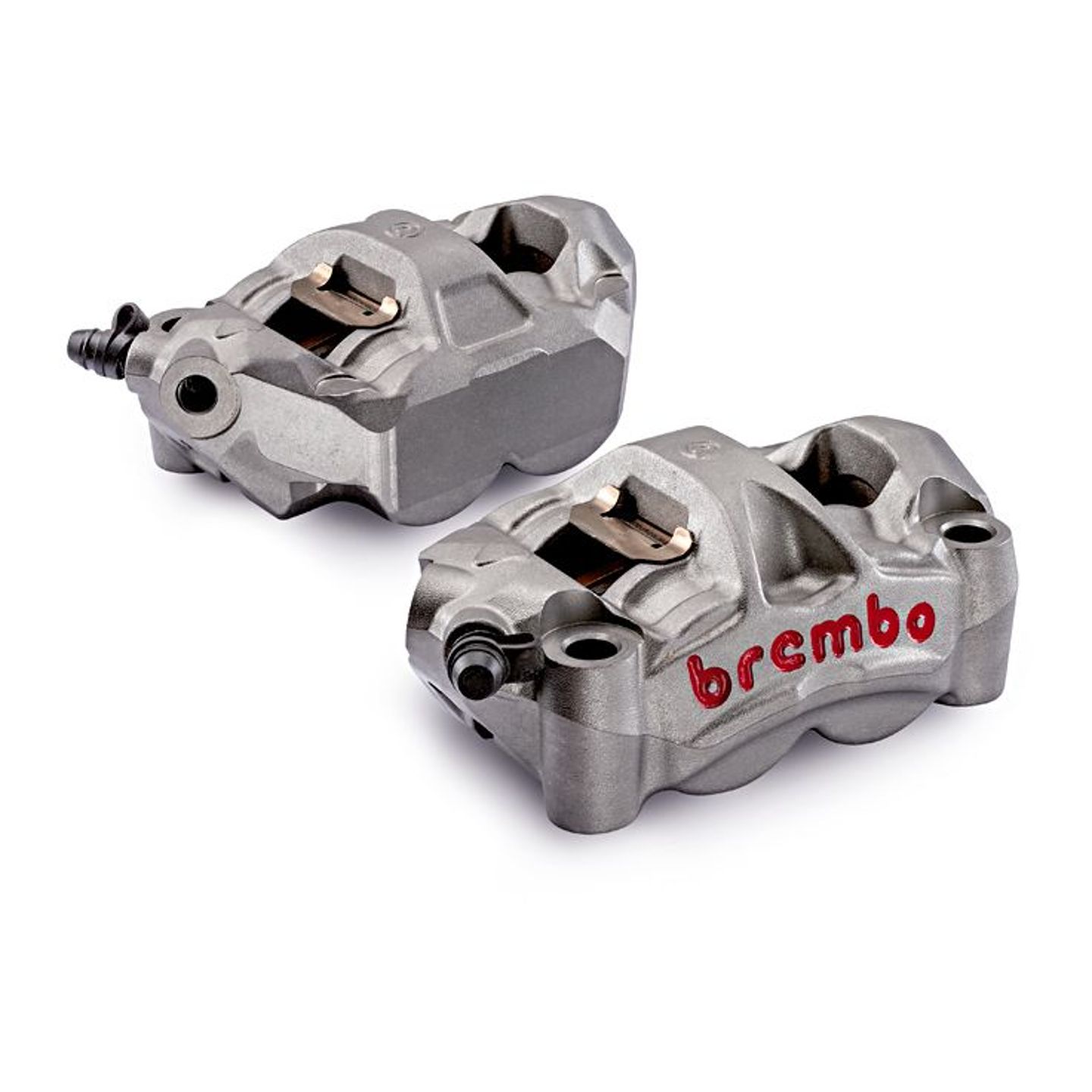

Brembo M50 Brake Caliper

Brembo M50 Monoblock Brake Calipers

The Brembo M50 Caliper elevates braking performance with its compact and refined monoblock construction, directly benefiting from Brembo's longstanding mastery in MotoGP technology since the early 90s. Created as a single piece from cast aluminum, this caliper's triple bridge architecture delivers exceptional stiffness, ensuring unyielding performance through intense braking. It boasts four 30mm pistons, enhancing the precision of feedback sent to the master cylinder, brake lever, and ultimately, the rider's touch.

Weighing just around 700 grams (1.54 lbs), the M50 Caliper achieves its lightweight stature through the utilization of advanced topological optimization software. This technology enables Brembo to trim away unnecessary material, all while maintaining the caliper's structural integrity. The titanium anodized finish on the caliper plays a dual role by enabling effective heat dissipation during rigorous and prolonged braking scenarios. Additionally, it features special pad guides, streamlining the process of swapping brake pads without the traditional need for brake pad pins, which can be especially convenient on race days or quick maintenance sessions. The M50 Caliper is tailored for exclusive use with the Brembo 17RCS Master Cylinder, offering an iconic partnership comparable to the dynamic duo of Batman and Robin.

Features:

• Cast aluminum construction
• Titanium anodized finish
• Single piece monoblock design
• Hand painted embossed Brembo logo
• Four 30mm aluminum pistons
• Weight without pads: ~700 gr
• Compatible disc height: 32-34mm
• Brake fluid: DOT 4
• Compatible with OEM Brembo, SuperSport and T-Drive rotors
• OE on the Ducati 1199 Panigale
• Brembo Caliper Spacer Kits available (sold separately)
• Sold as a pair

Includes:

• 2 x Brembo M50 Caliper
• 2 x Brembo sintered brake pads
• 4 x Copper crush washers
• 2 x Thermal sensitive caliper tape
• User’s manual

Note: Designed to be used in conjunction with the Brembo 17RCS Master Cylinder only.
