Rigid RDS-Series Pro Curved 40" LED Light Bar Schematic

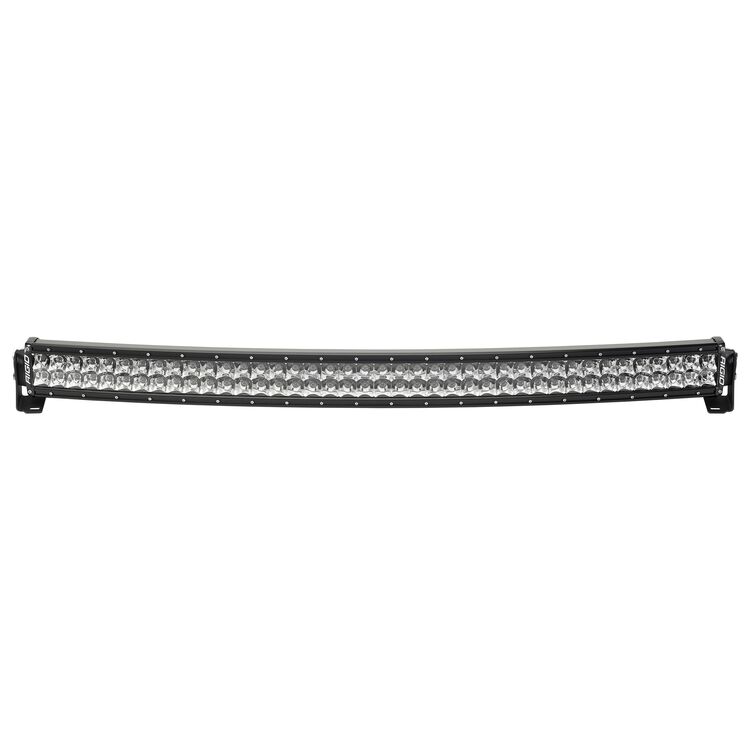

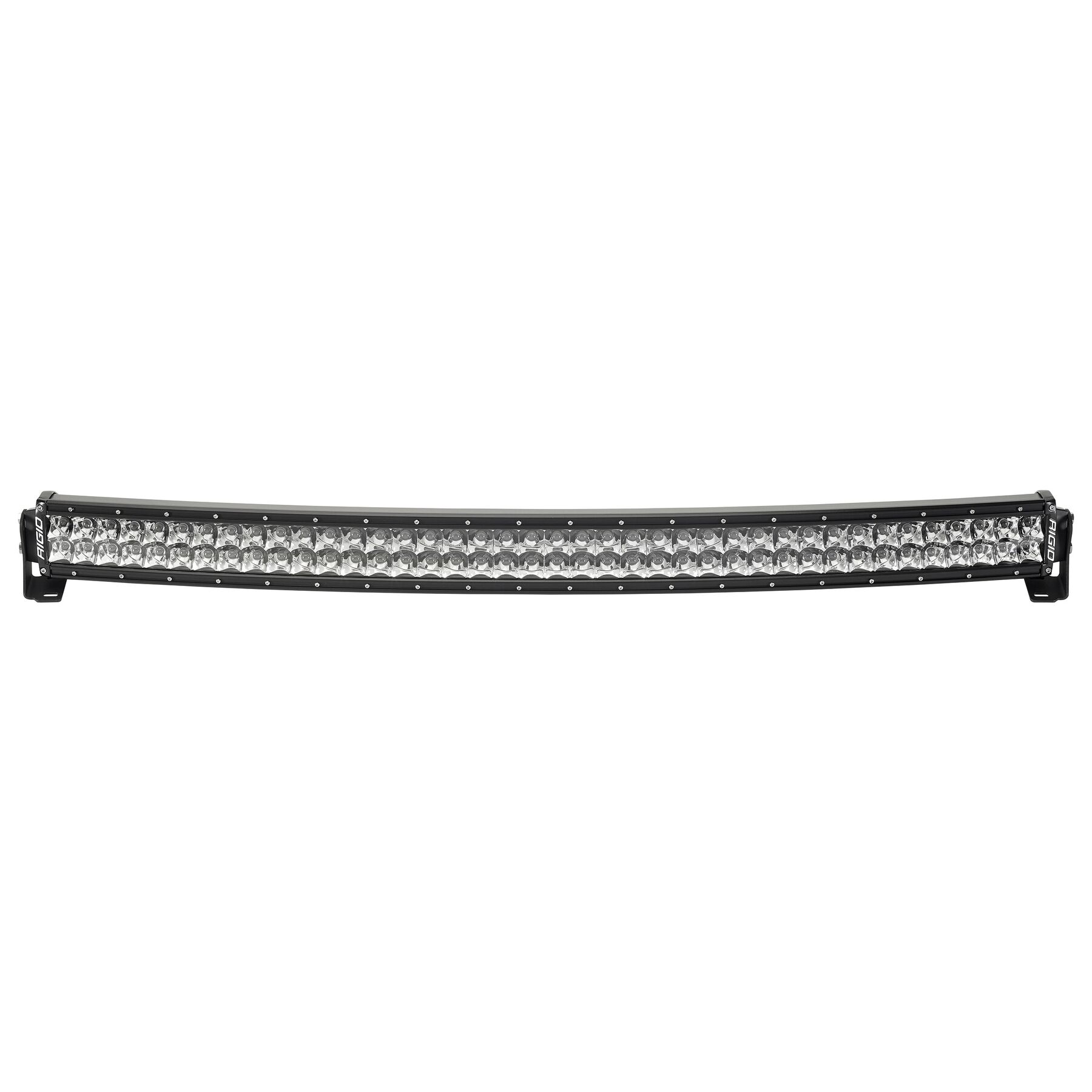

Rigid RDS-Series Pro Curved 40" LED Light Bar

"Curved". You heard correctly. The world's first curved LED light bar is the RDS-Series Pro from Rigid. Combining advancements in LED technology with improved output of up to 70 percent more raw lumens, the unique curved design delivers unmatched beam coverage. By taking the legendary E-Series LED light bar and treating it to a gentle arc, the patented RDS-Series PRO Light Bar provides a sleek, integrated look with the curved designs and body work found on modern side-by-sides, custom off-road builds and trucks. The functional curve of the RDS-Series PRO Series provides a wider spread of light that surpasses the coverage of traditional light bars.

As Rigid likes to say: "Own the night." These American-made lasers of illumination hail from Rigid's design headquarters in Gilbert, Arizona.  Rigid Industries is the industry leader in LED lighting solutions with a product line that includes everything from ultra-low amperage rock lights to GPS-enabled "smart" light bars. The company's premier "hybrid" and "specter" optics technologies trickle down to everything that Rigid produces. The result is powerful optics with up to 40% more lux while using up to 50% less power consumption than the competition.

Specifications:

  • Size: 20.0 Inch: Light Pattern: Spot: Amp Draw: 16.72 Watts: 234 Volts: 36 Lumens: 31680
  • Size: 30.0 Inch: Light Pattern: Spot: Amp Draw: 19.8 Watts: 277 Volts: 36 Lumens: 47520
  • Size: 40.0 Inch: Light Pattern: Spot: Amp Draw: 22.44 Watts: 314 Volts: 36 Lumens: 63360
  • Size: 54.0 Inch: Light Pattern: Spot: Amp Draw: 32.34 Watts: 453 Volts: 36 Lumens: 85538

Includes:

  • 2 black powder coated L-shaped brackets
  • Open leads (no connector)
  • Wiring harness with switch

Features:

  • Revolutionary curved construction
  • Unmatched light coverage
  • Spotlight beam pattern
  • 50,000+ hour lifespan
  • 9-36 VDC operation
  • Durable UV-resistant powder coated finish
  • Aluminum alloy construction
  • Integrated thermal management
  • Impact resistant polycarbonate lens
  • Over/under voltage protection
  • RFI/EMI protection
  • Reverse polarity protection
  • RoHS compliant
  • IP69K compliant against dust/water ingress
  • Epoxy sealed
  • Pressure equalizing vent
  • Operating temp -40 to 145 degrees F
  • SAE J575 compliant against shock/vibration
  • Limited lifetime warranty
  • For off-road use only
Read More
Fitment Notes & Exceptions
This is a universal fit part; it may or may not fit without modification.
Product Style Item # Store SKU Manufacturer Product # Availability
Product Style 40" / Spot Item # 10065806 Store SKU Manufacturer Product # 884213 Availability In Stock: Ships within 24 hours
