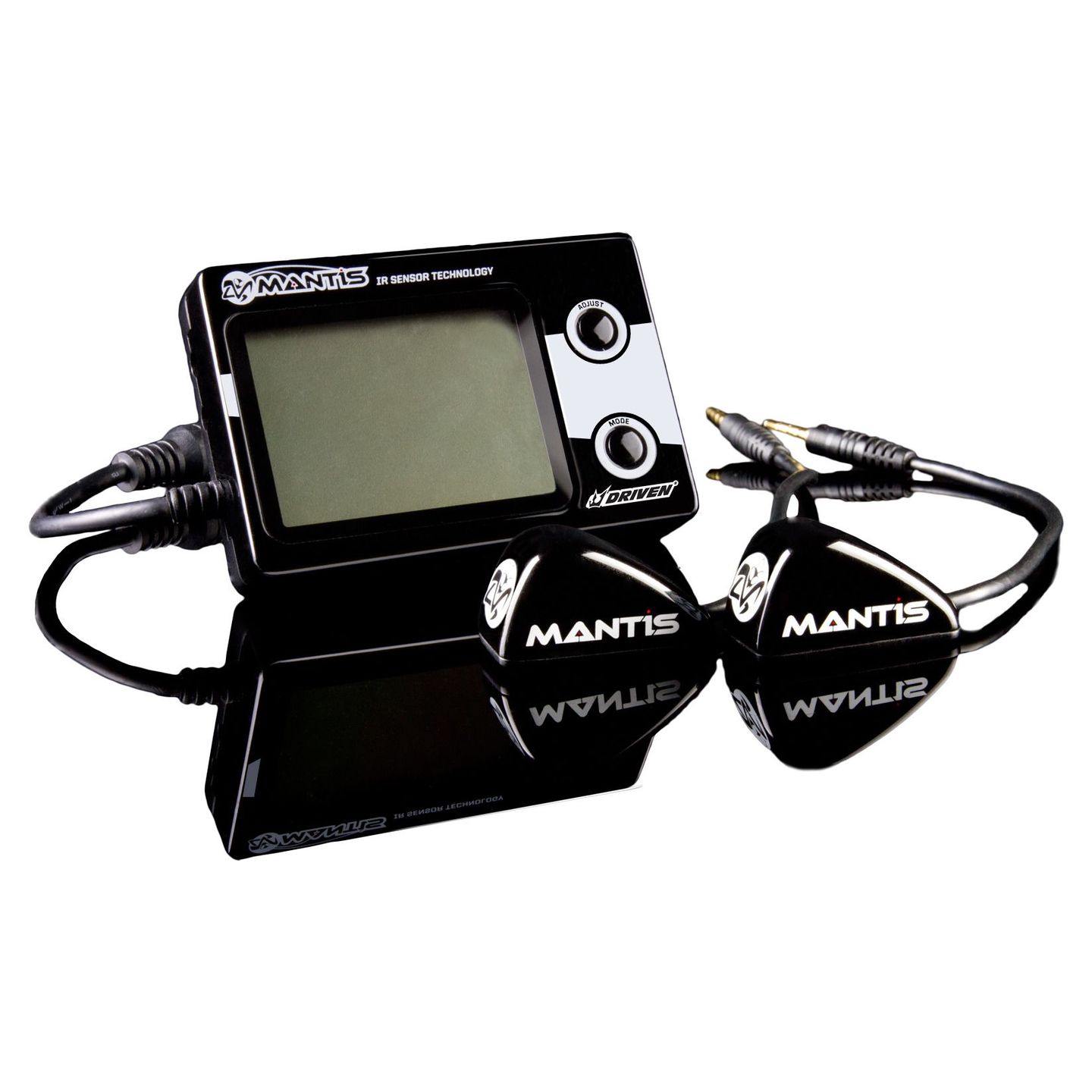

Driven Racing Mantis Tire Temp Sensor

Driven Mantis Tire Temperture Sensor

The Driven Mantis is a ground-breaking electronic tire temperature sensor designed specifically for track day and professional riders. Using two sophisticated infrared sensor, the Mantis reads and displays to the rider front and rear tire surface temperatures in real time.

The Mantis non-contact infrared sensor utilizes a 17 bit analog to digital converter and a powerful digital signal processing unit. With a resolution of 0.02°C, the Mantis sensor is a highly precise measuring instrument. A proprietary lens serves to create a wide-angle field of view for the sensor to observe infrared radiation emitted from the tire's surface. Additionally, the lens protects the sensor from being damaged by road debris. Encapsulating the senor's electronic component assembly is a durable injection-molded polycarbonate housing.

The wires connecting the Mantis sensors to the display unit are shielded to prevent distortion of the sensor's signal by electro-magnetic noise generated by the high-voltage electrical components on the motorcycle.

The Driven Mantis display unit houses a glare-free liquid crystal screen and a processor capable of converting raw data from the thermal sensor into valuable readable information in real time. Programmable alerts can be easily set, and are useful in alerting the rider when the tire temperatures exceed the desired range.

Features:

• Digital five-wire pin connectors
• Quick disconnect sensor harness
• Lightweight 16 gauge aluminum gauge bracket
• CNC machined 6061-T6 aluminum adjustable sensor mount with suction cup
• 3M VHB tape to secure the sensor to the fender surfaces
