Arai XD-5 Intpad Helmet Liner Schematic

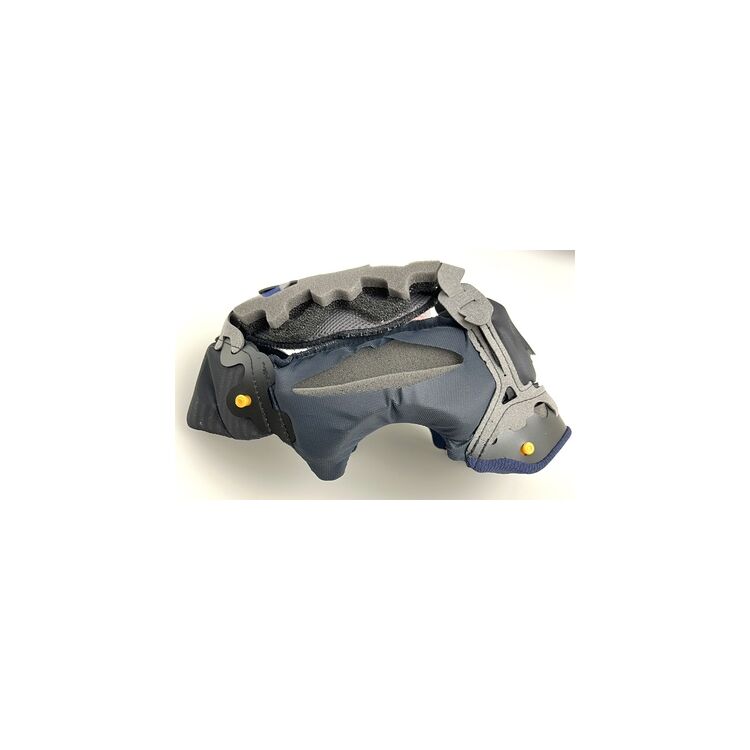

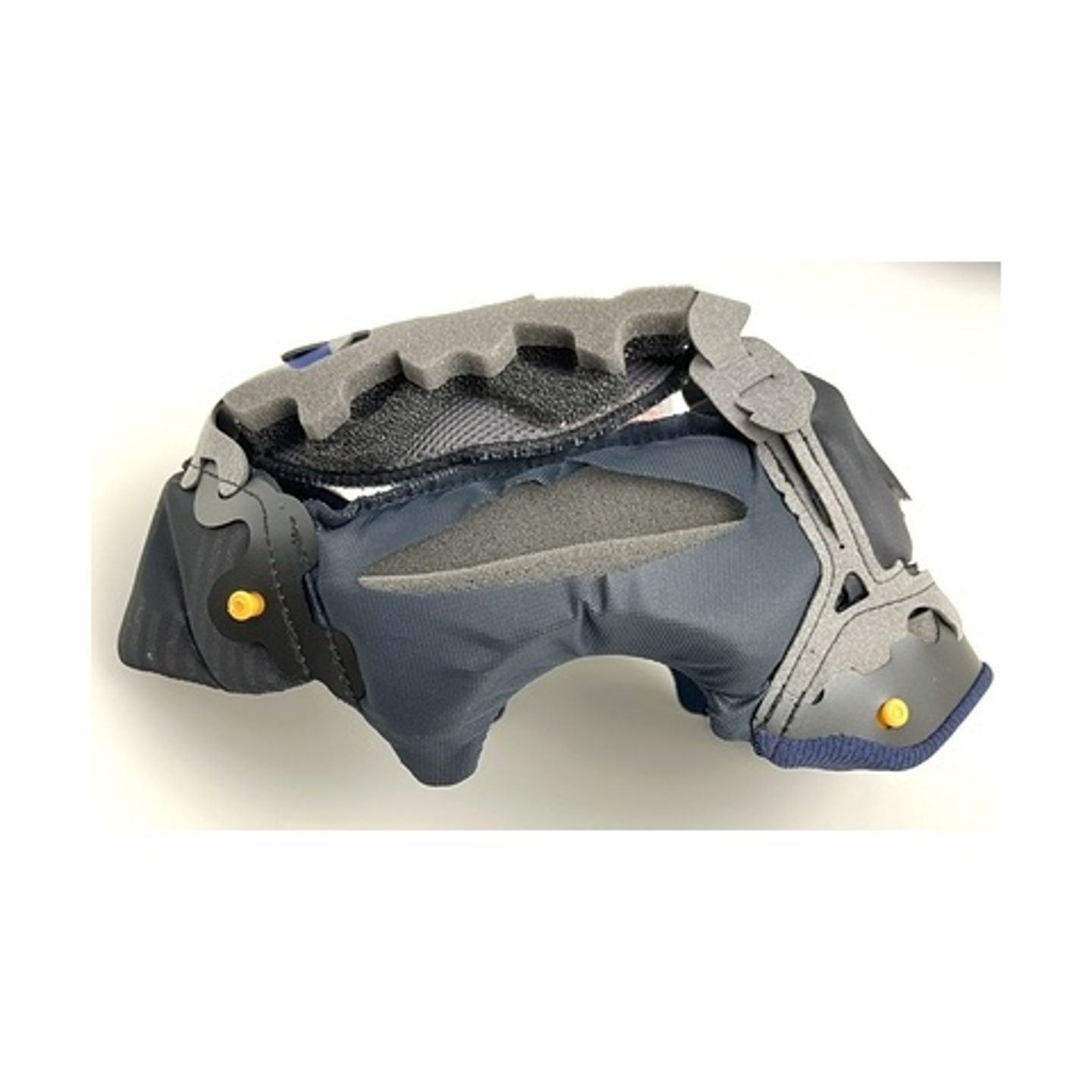

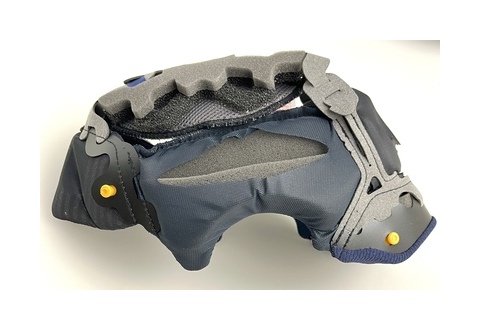

Arai XD-5 Intpad Helmet Liner

Replacement top liner for the Arai XD-5 family of world-class ADV helmets.

Compatibility:

  • Intpad helmet liners come in 5 unique sizes
  • Only helmet sizes MD and LG share an Intpad liner size (Size III)
  • The factory liner thickness for each helmet size is stated
  • Intpad liner thickness can be ordered thicker and / or thinner than factory pad thickness for a more tailored fit

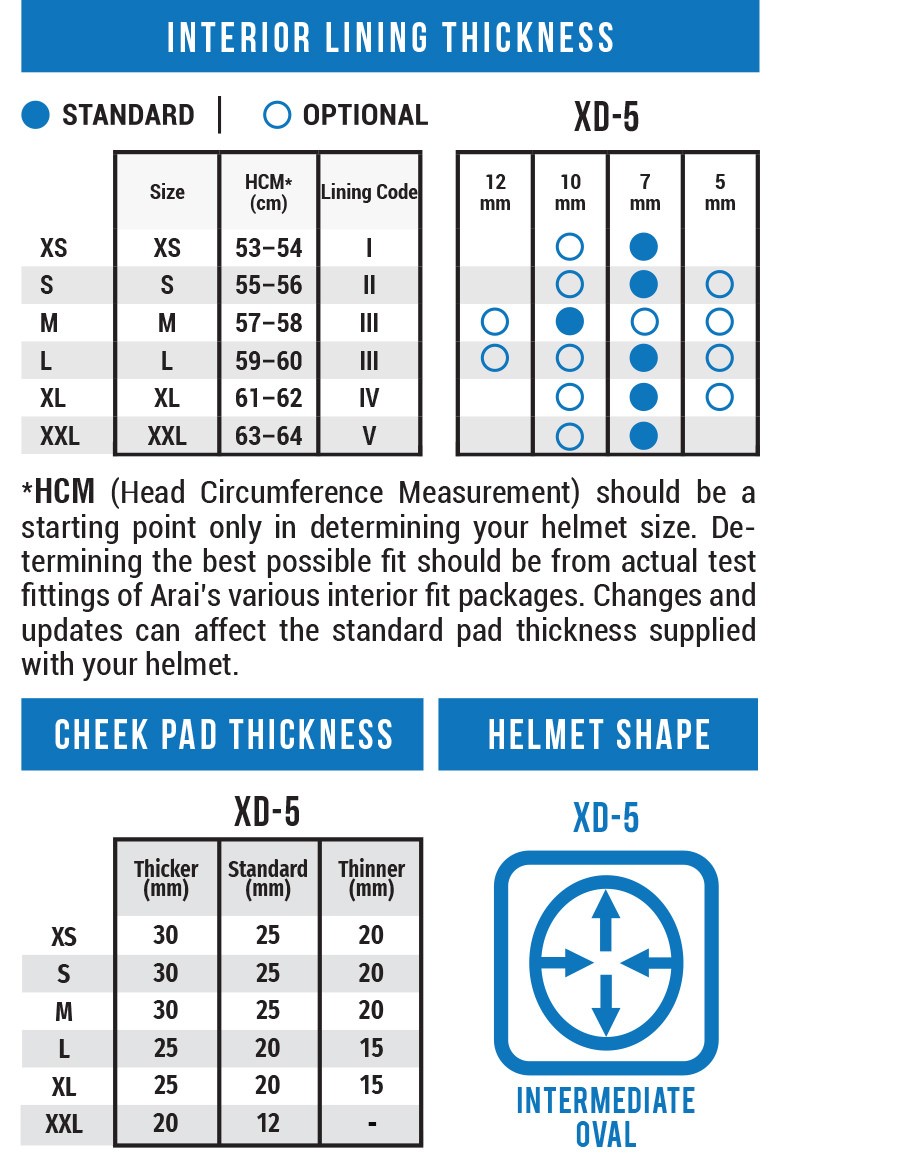

  • See Arai "Interior Lining Thickness" chart for graphical representation of sizing and compatibility

Specifications:

  • Size XS Helmet:
    • Requires liner Size I
    • Factory thickness is 7mm
    • 10mm optional thickness
  • Size SM Helmet:
    • Requires liner Size II
    • Factory thickness is 7mm
    • 5mm and 10mm optional thicknesses
  • Size MD Helmet:
    • Requires liner Size III
    • Factory thickness is 10mm
    • 12mm, 7mm and 5mm optional thicknesses
  • Size LG Helmet:
    • Requires liner Size III
    • Factory thickness is 7mm
    • 12mm, 10mm and 5mm optional thicknesses
  • Size XL Helmet:
    • Requires liner Size IV
    • Factory thickness is 7mm
    • 5mm and 10mm optional thicknesses
  • Size 2XL Helmet:
    • Requires liner Size V
    • Factory thickness is 7mm
    • 10mm optional thickness

Note: Only helmet sizes MD and LG share an Intpad liner size (Size III).

Read More
Product Style Item # Store SKU Manufacturer Product # Availability
Product Style Size I: 7mm Item # 10438252 Store SKU Manufacturer Product # 075469 Availability In Stock: Ships within 24 hours
Product Style Size I: 10mm Item # 10438251 Store SKU Manufacturer Product # 075468 Availability In Stock: Ships within 24 hours
Product Style Size II: 5mm Item # 10438250 Store SKU Manufacturer Product # 075473 Availability Out of Stock
Product Style Size II: 7mm Item # 10438249 Store SKU Manufacturer Product # 075472 Availability In Stock: Ships within 24 hours
Product Style Size II: 10mm Item # 10438248 Store SKU Manufacturer Product # 075471 Availability In Stock: Ships within 24 hours
Product Style Size III: 5mm Item # 10438247 Store SKU Manufacturer Product # 075477 Availability In Stock: Ships within 24 hours
Product Style Size III: 7mm Item # 10438246 Store SKU Manufacturer Product # 075476 Availability In Stock: Ships within 24 hours
Product Style Size III: 10mm Item # 10438245 Store SKU Manufacturer Product # 075475 Availability In Stock: Ships within 24 hours
Product Style Size III: 12mm Item # 10438244 Store SKU Manufacturer Product # 075474 Availability In Stock: Ships within 24 hours
Product Style Size IV: 5mm Item # 10438243 Store SKU Manufacturer Product # 075480 Availability In Stock: Ships within 24 hours
Product Style Size IV: 7mm Item # 10438242 Store SKU Manufacturer Product # 075479 Availability In Stock: Ships within 24 hours
Product Style Size IV: 10mm Item # 10438241 Store SKU Manufacturer Product # 075478 Availability In Stock: Ships within 24 hours
Product Style Size V: 7mm Item # 10438240 Store SKU Manufacturer Product # 075482 Availability In Stock: Ships within 24 hours
Product Style Size V: 10mm Item # 10438239 Store SKU Manufacturer Product # 075481 Availability In Stock: Ships within 24 hours
