Alpinestars Tech-Air 5 Airbag System

Electronics System:

• Active electronic system that features six triaxial integrated sensors (3 gyroscopes and 3 accelerometers)
• Crash algorithm that leverages AI to accurately monitor when to deploy the airbag in the event of a crash
• 30 hours of riding time after a full charge via micro USB charger
• Bluetooth and App integration
• Capable of both Race and Street use

Airbag System:

• Covers shoulders, chest, ribs and full back
• Maximum inflation time of 20-40ms based on the volume of the airbag size
• Decreases impact force by 93% compared to a passive protector
• Includes argon gas canisters
• Highly ventilated back protector
• Leave elbow and shoulder armor in your jacket, but removing the jackets back protector is recommended (since the Tech Air 5 has one built in)

Operation:

• Zip up vest and close magnetic flap
• Integrated LED display indicates operational status
• To activate: VELCRO® brand closure at the top of the zipper contains a sensor that arms automatically when closed

Washing Care:

• Do not submerge in water
• Spot clean with a microfiber cloth
• Use cold or room temperature water, add mild detergent (ex. Woolite), submerge microfiber cloth, squeeze out excess water, proceed to spot clean the following areas:
  • Left and right inner liner
  • Neck collar
  • Back area
• Avoid the front clasp sensor and ACU on the back where the electrical ports are
• Hang dry in ventilated area, away from sunlight
• Anti-microbial athletic cleaners are an alternative option

Everyday Comfort

The Tech-Air 5 Airbag System is a self-contained airbag vest slim enough to be worn under virtually any jacket. It offers comprehensive upper body protection - covering the rider's shoulders, chest, ribs and full back.

The Tech-Air 5 is designed for race and street use, so you'll be protected on and off the track.

Unparalleled Technology

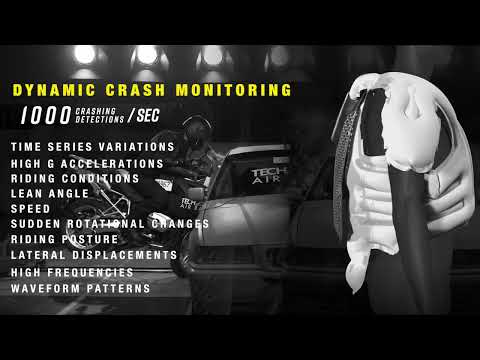

The Tech-Air 5 utilizes six integrated sensors (3 gyroscopes and 3 accelerometers). These are combined with an algorithm developed closely with MotoGP race data and data from over 2,000 lab-simulated crash scenarios to determine when and how the system deploys.

The Tech-Air 5 reduces impact forces by up to 93% compared to passive protection methods. The airbag has a maximum inflation time of up to 40ms (or less, depending on vest size). Inflation time is rapid enough to fully inflate the air chambers before impact. The vest also protects stopped riders in the event of a rear-end collision.

Rider Friendly Features

The Tech-Air 5 boasts 30 hours of riding time on a single charge. An LED display conveniently shows the system status directly on the garment. Alpinestars includes a micro USB charger for quick recharging.

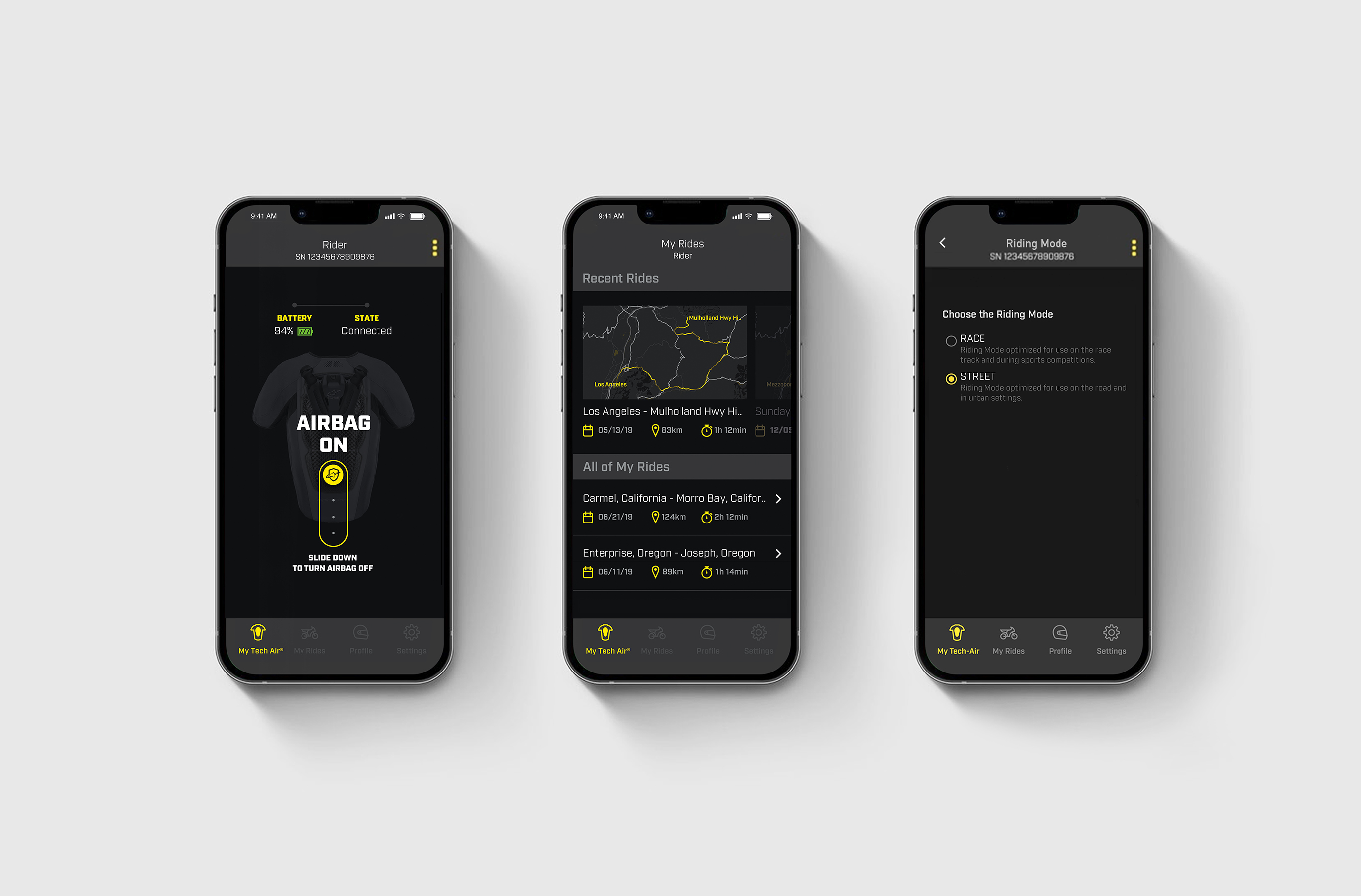

The Tech-Air App pairs via Bluetooth to the vest. The app displays the vest’s operational status, remaining battery life and provides a detailed analysis of your ride. Over-the-air firmware updates are also handled through the app.
