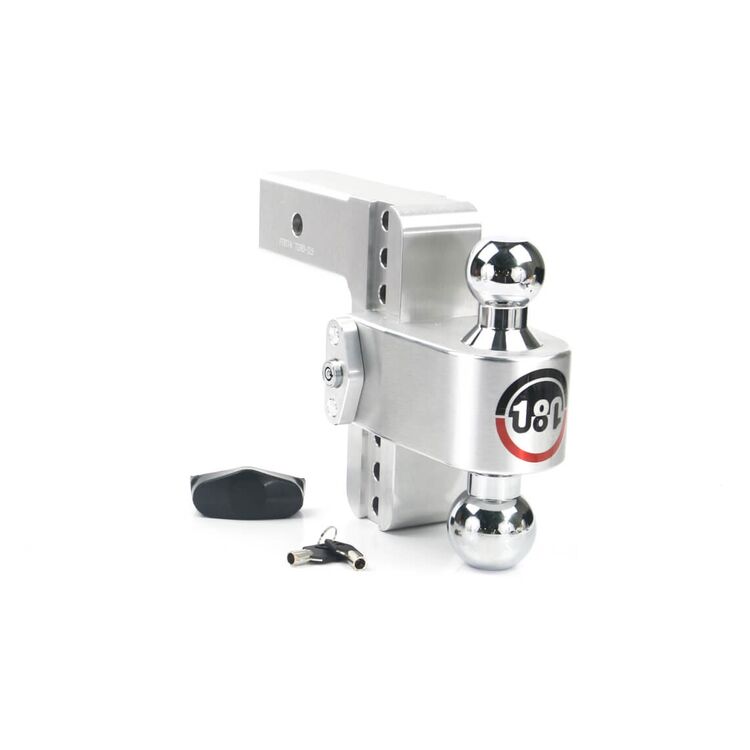

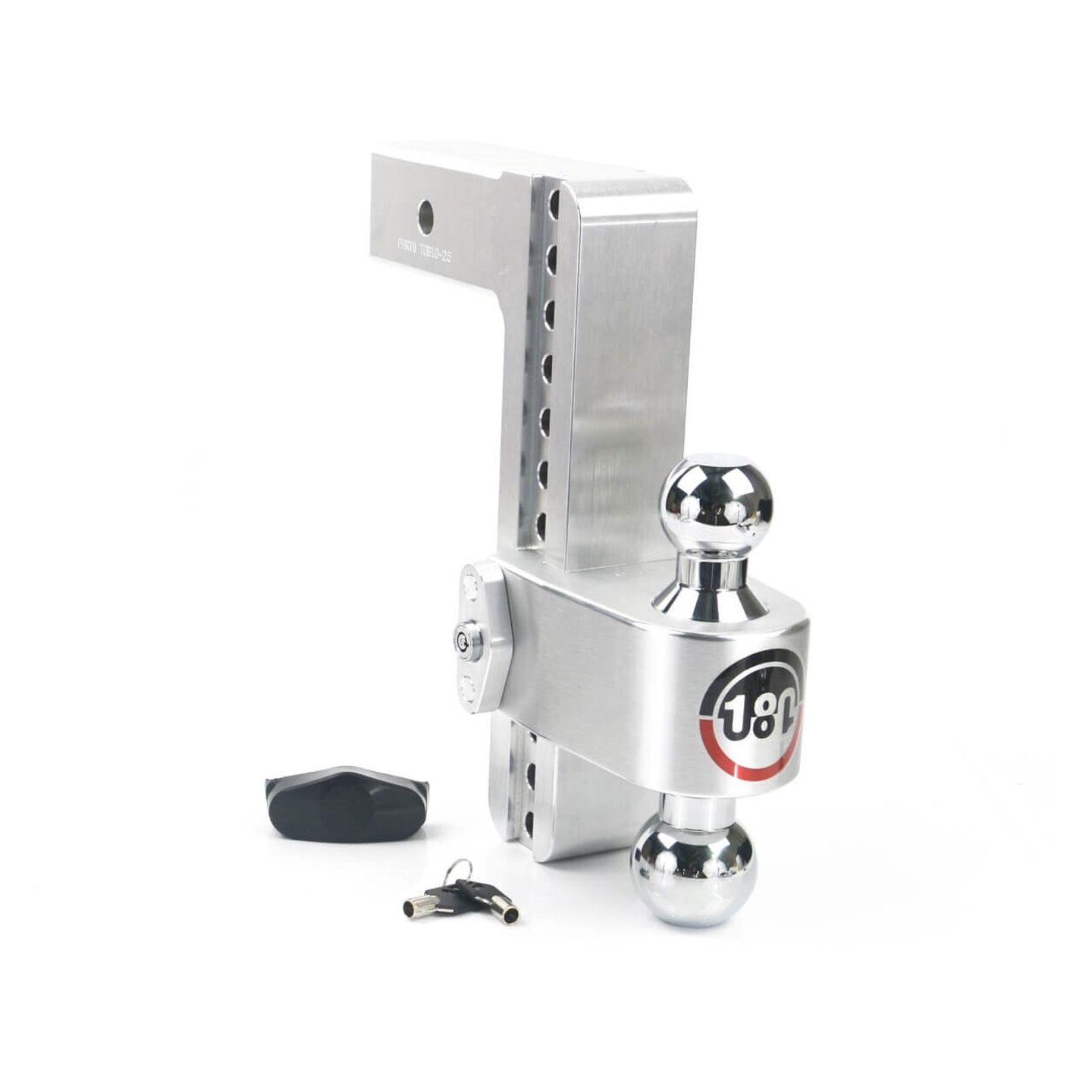

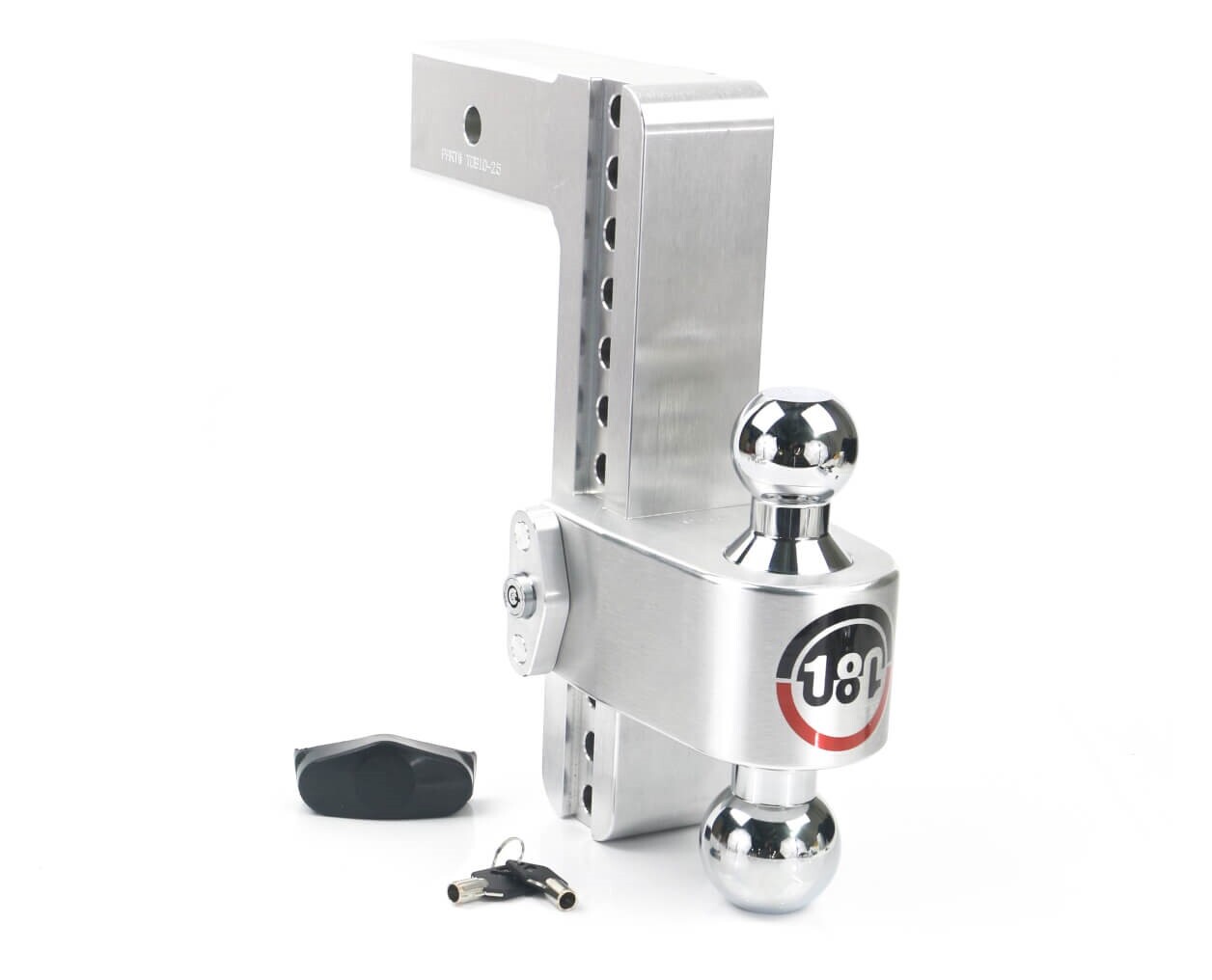

Weigh Safe 180° Chrome Ball Drop Hitch 2.5" Shank

Weigh Safe 180° Chrome Ball Drop Hitch 2.5" Shank

Weigh Safe's line of premium 180° Drop Hitches features a unique "combination" hitch ball that can be flipped for 2" or 2-5/16" applications. This reversible, chrome-plated steel combo ball means an end to being stuck with the wrong size ball for your receiver. These V5- and J684-certified hitches rely on nothing but the highest grade aluminum and stainless steel construction to deliver a drop hitch (or rise) that is tough, durable and corrosion-resistant - all while saving weight.

Specifications:

• 2.5" Receiver size (shank)
• Max gross trailer weight (all models):
• • 8000 lbs with 2” ball
  • 18,500 lbs with 2-5/16” ball
• Max tongue weight (all models):
  • 2200 lbs
• V5 & J684 certified
• Drop hitch adjustment: 1" increments
• Ball material: chrome-plated steel
• Pin: Dual pin with key lock assembly (included)
• Rise: All hitches may be used in rise position
  • Gain 1 inch (e.g., 4” drops are 5” rises)
• Total Height: Add 3 inches (e.g., 4” drops measure 7" from the top of the receiver to the hitch base)

Includes:

• Drawbar
• 180° Slider
• Combo 2" and 2-5/16" ball (chrome-plated steel)
• Ball retaining pin (1)
• Lock plate key assembly
• Dust lock cover
• Barrel style keys (2)
• Optional locking hitch pin Part # WS05 (keyed to match locking plate; select models)

Features:

• Premium drop hitch with 2" and 2-5/16" "combo" hitch ball
• 6061 T6 billet aluminum shank and mounting platform provide superior strength and durability
• Solid block construction provides greater strength than hollow steel competitors
• Rustproof
• Lighter than steel
