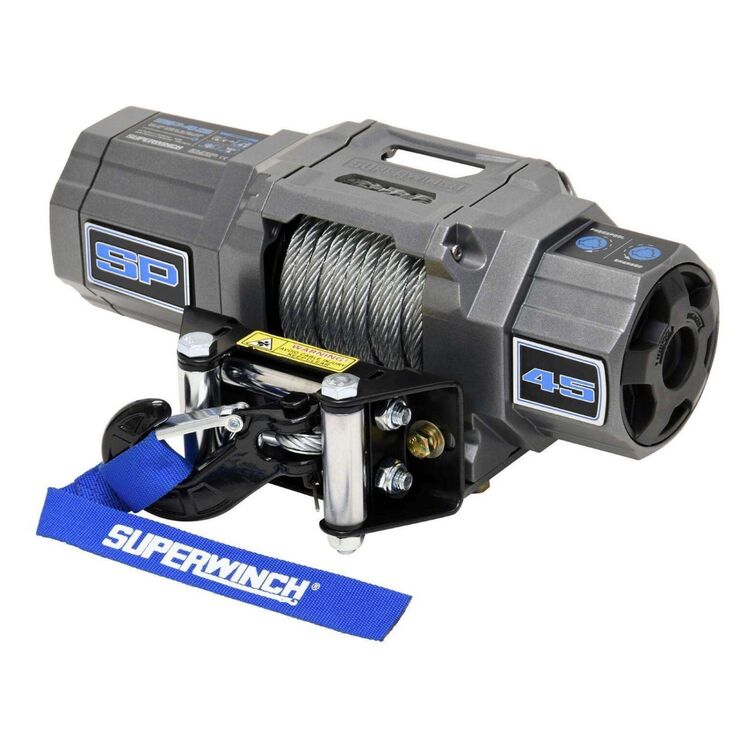

Superwinch SP45 Powersports 4500lb Winch

Superwinch SP45 Powersports 4500lb Winch

The SP 45 winch brings reliable performance to ATV and UTV riders, boasting a capacity to handle an impressive 4,500-pound pull. Tailored for challenging terrains like sand and mud, as well as for robust work tasks, the SP45's 40-foot steel wire rope is driven by a powerful 12-volt, 1.8 HP permanent magnet motor. The integrated 3-stage planetary gearing with a 198:1 gear ratio is managed with an ergonomic twist-lock clutch. Included in the package are convenient dash-mount control switches, a wired remote for easy operation, and a patented drum light for increased visibility during night use.

Specifications:

• Horsepower: 1.8hp, permanent magnet motor 12V DC
• Fairlead: Stainless steel 4-way roller
• Rated Single Line Pull: 4500lbs
• Rope Length: 15/64" x 40 ft (6.0mm x 12.2m)
• Rope Material: Steel wire
• Patented LED lighted drum
• Brake System: Full load holding automatic brake
• Clutch: Ergonomic twistlock
• Color: Graphite
• Dimensions: 19.29in L × 11.02in D × 9.44in H (490mm L × 280mm D × 240mm H)
• Finish: Powder coated graphite
• Gear Ratio: 198:1
• Gear System: 3-stage planetary
• Frame Material: Steel
• Mounting Bolt Pattern: 4.88in × 3.0in (124mm × 76mm)
• Net. Weight: 33 lbs
• Remote Control: Dash-mounted control switches and handheld remote control
• Warranty: Limited lifetime mechanical / 3 year limited electrical
• Winch Hook: 1/4in, clevis pinned, latched
• Includes all pictured hardware
