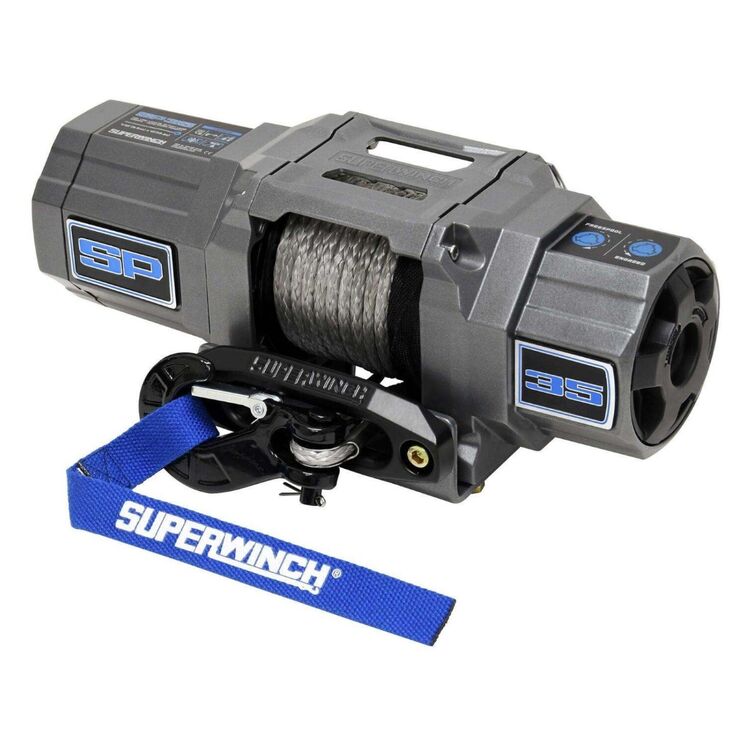

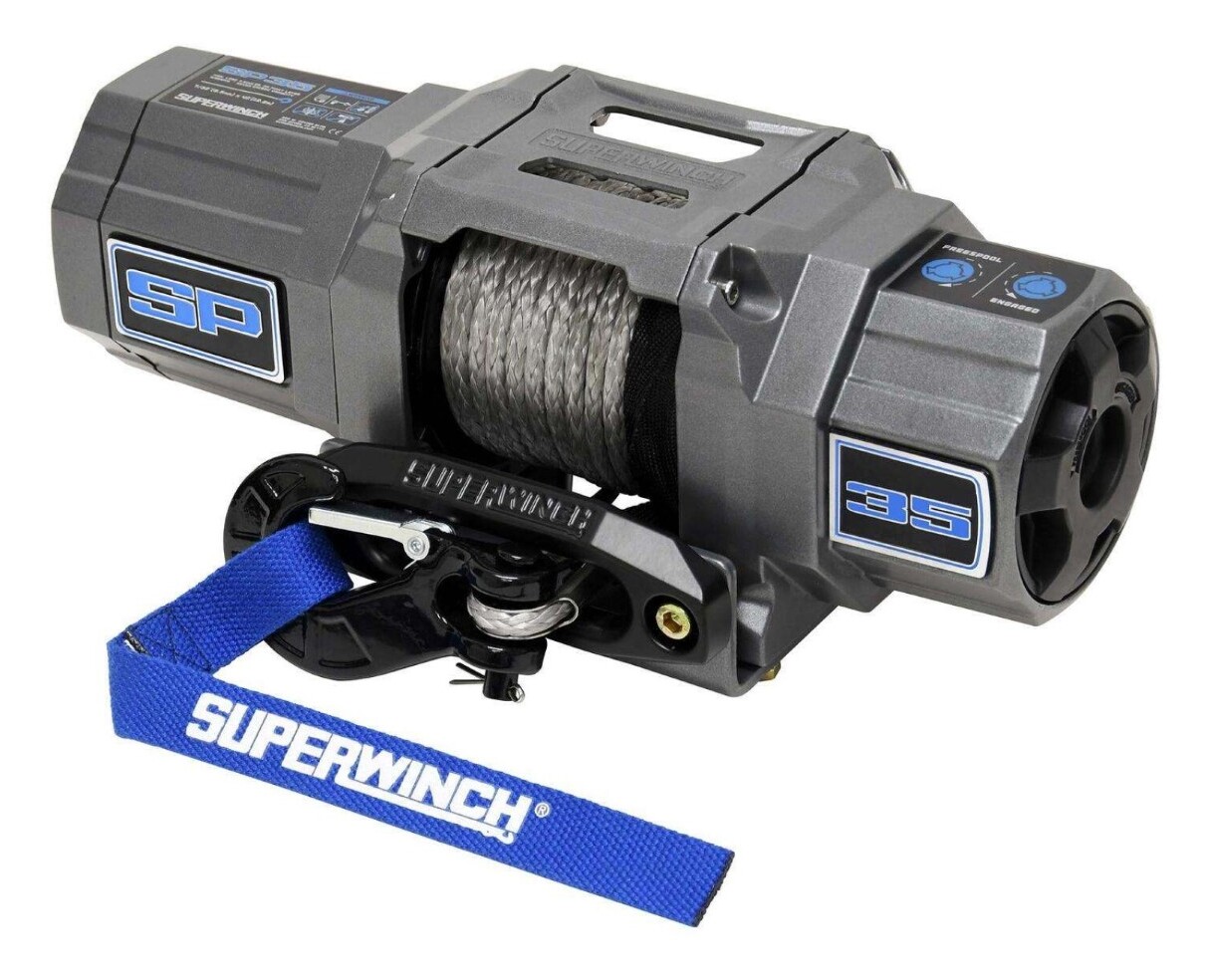

Superwinch SP35 SR Powersports 3500lb Winch

Superwinch SP35 Powersports 3500lb Winch

The SP 35 Synthetic Rope Winch stands as a reliable choice for ATV and UTV enthusiasts who demand strength and durability. This winch features a formidable 3,500-pound pull rating, making it suitable for challenging terrains such as sand and mud, as well as for demanding work scenarios. Its 40-foot synthetic rope is driven by a dynamic 12-volt, 1.6 HP permanent magnet motor, ensuring efficient power delivery through 3-Stage planetary gearing with a 198:1 gear ratio. The winch also provides dynamic braking for enhanced control. Users benefit from the convenience of an ergonomic twist-lock clutch for secure load handling. Additional functionality includes dash-mount control switches, a wired remote for easy operation, and a patented drum light for increased visibility during use.

Specifications:

• Horsepower: 1.6hp, permanent magnet motor 12V DC
• Rated Single Line Pull: 3500lbs
• Rope Length: 7/32" x 40 ft (5.5.0mm x 12.2m)
• Rope Material: Synthetic rope
• Patented LED lighted drum
• Brake System: Full load holding automatic brake
• Clutch: Ergonomic twistlock
• Color: Graphite
• Dimensions: 19.29in L × 11.02in D × 9.44in H (490mm L × 280mm D × 240mm H)
• Finish: Powder coated graphite
• Gear Ratio: 198:1
• Drum: 1.96" x 3.74"
• Gear System: 3-stage planetary
• Frame Material: Steel
• Mounting Bolt Pattern: 4.88in × 3.0in (124mm × 76mm)
• Remote Control: Dash-mounted control switches and handheld remote control
• Warranty: Limited lifetime mechanical / 3 year limited electrical
• Winch Hook: 1/4in, clevis pinned, latched
• Includes all pictured hardware
