S&S Cycle Oil Pump Passage Drill Jig
Item: P360680
Current price is
$70.95
Fast Lane
Ships Free to Cycle Gear Stores!
The Cycle Gear Difference
- Free Shipping Over $49.99
- 30-Day Best Price Guaranteed
- No-Hassle Returns View Detailsof our return and refund policies

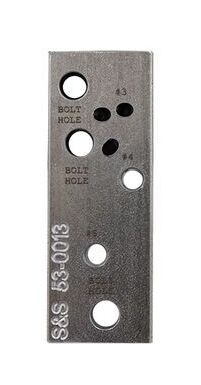

S&S Cycle Oil Pump Passage Drill Jig
The S&S Crankcase Oil Passage Drilling Jig is a specialized tool designed for precision when modifying early big twin crankcases to install an S&S oil pump assembly. It ensures accurate drilling of the oil passage, essential for the proper function of the upgraded oil pump. With this jig, mechanics and enthusiasts can confidently execute modifications, knowing that alignment and spacing will be correct for optimal performance.
Features:
- For 1953-1980 Big Twin
- Made of hardened steel for durability
-
Fixture enables the builder to do four modifications
- Primary chain oil supply passage from the breather valve gear cavity to the back side of the oil pump body on late generator and early alternator crankcases
- Pressure relief passage from behind the main oil pressure valve to the gear cavity on alternator crankcases
- Crankshaft and main bearings supply passage on generator crankcases
- Crankshaft and main bearings supply passage on early alternator crankcases
- Made in the USA
Read More
| Product Style | Item # | Store SKU | Manufacturer Product # | Availability |
|---|---|---|---|---|
| Product Style S&S Cycle Oil Pump Passage Drill Jig | Item # 1181802 | Store SKU 340517 | Manufacturer Product # 53-0013 | Availability In Stock: Ships within 24 hours |
