RAM Mounts Cradle Adapter

The RAM-B-202 consists of a 1" diameter rubber ball connected to a flat 2.5" diameter round base. This mount has pre-drilled holes, including the universal AMPS hole pattern.

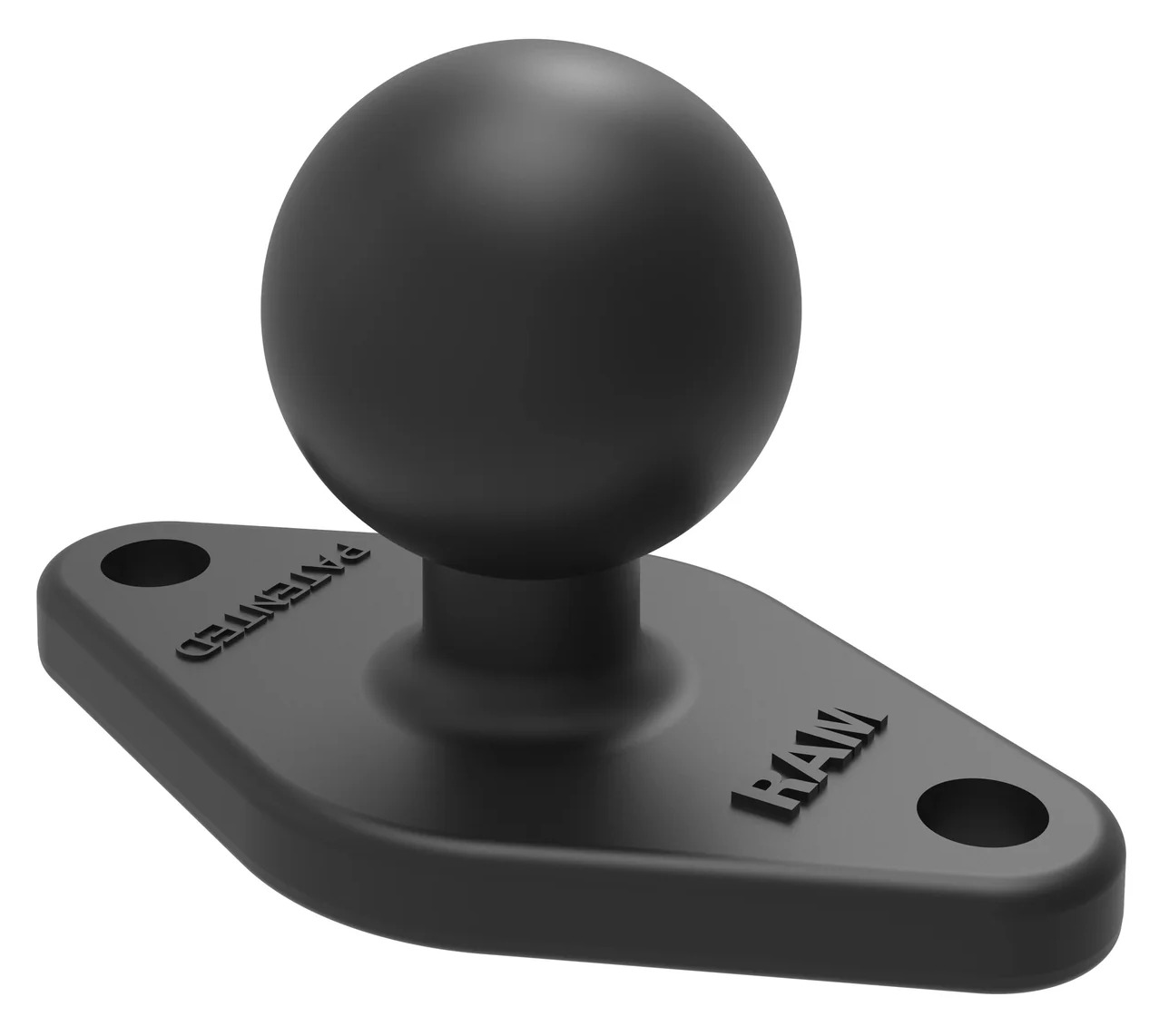

The RAM-B-238 consists of a 1" diameter rubber ball connected at right angles to a 2.43" x 1.31" diamond base. The base has two holes 1.912" from center to center, matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles.

The RAM-B-202U-152 consists of a 1" diameter rubber ball connected to a rectangular plate with a 4-hole pattern of 1" x 1.5" center to center. Overall plate dimensions are 1.5" x 2".

The RAM-B-347U consists of a 1" diameter rubber ball connected at right angles to a 2" x 1.7" square base. The base has four pre-drilled holes at each corner, making the universal 1.5 x 1.188 (hole spacing) AMPS hole pattern. This base is designed to hold the following devices:

• Garmin zumo 400
• Garmin zumo 450
• Garmin zumo 500
• Garmin zumo 550
• Garmin zumo 660
• TomTom Rider 2
• TomTom Urban Rider

Material:

• Powder Coated Marine Grade Aluminum

Ball Size:

• 1" Rubber Ball "B" Size
