RAM Mounts ATV / UTV Strap And U-Bolt Mount Base

Designed for a clean installation, the RAM-B-231Z-2U accommodates most common tubing, frame rail and bar sizes on UTVs, ATVs and side-by-sides. Included are two mounting methods: an adjustable strap-mounted system and two, differently sized U-bolts with adjustable spacers. This variety of mounting options allows for the convenient placement of the RAM 1" (Type B) rubber ball base (included). No matter what you choose to do with it, you’ll wonder why your UTV or ATV didn’t come from the factory with this must-have product.

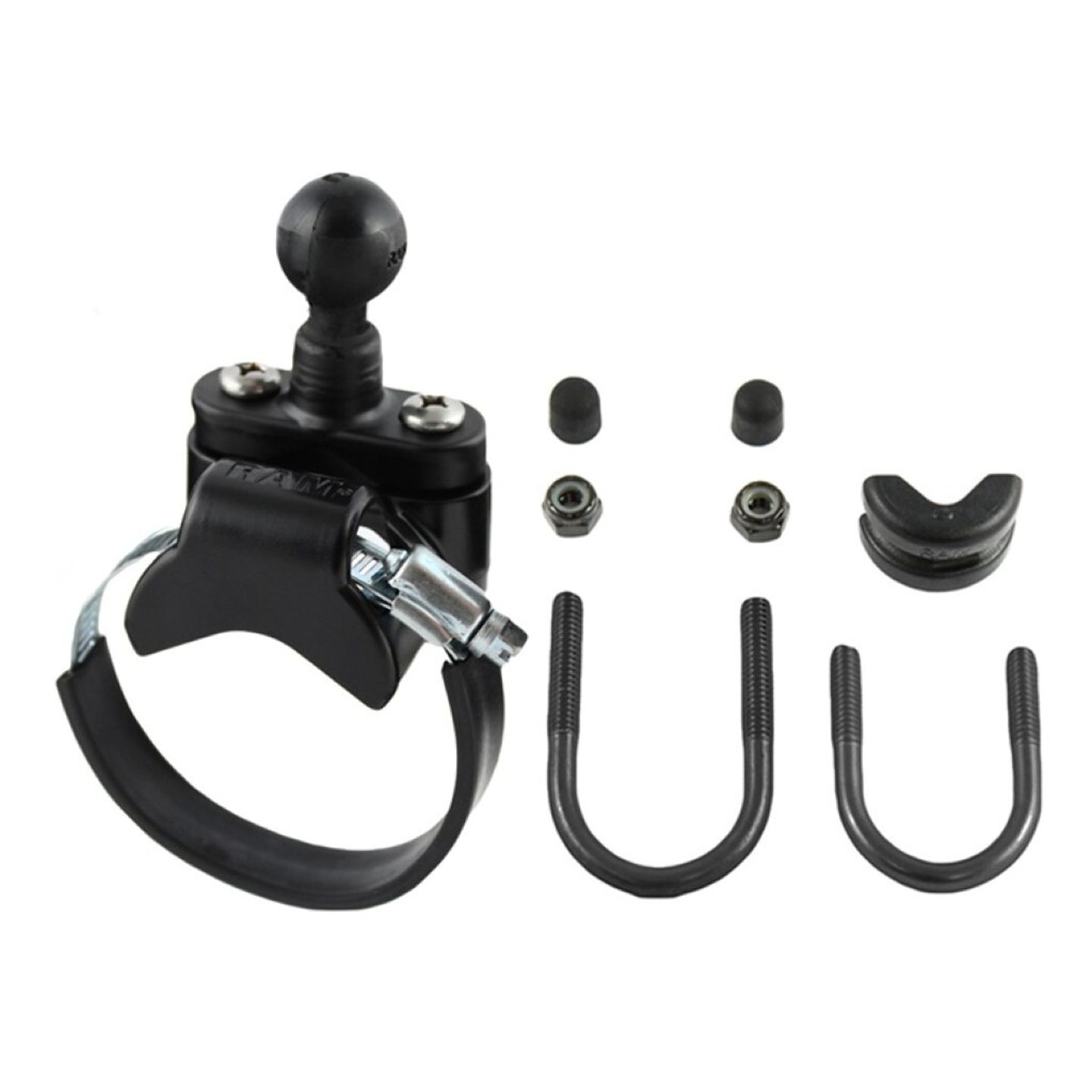

Includes:

• Strap clamp adapter
• Zinc worm drive strap clamp
• 6" protective rubber clamp sleeve
• 1/4"-20 U-bolt for 0.5" to 1" rails
• 1/4"-20 U-Bolt for 1" to 1.25" rails
• Rubber caps
• U-bolt spacers (2)

Clamp Dimensions:

• Mounts on tubing 1.57" to 3.15" diameter with strap
• Or mounts to tubing 0.5" to 1.25" using U-bolt mounts

Ball Size:

• 1" rubber ball "B" size

Materials:

• Marine-grade aluminum
• Powder coated aluminum
• High strength composite

Device Weight Capacity:

• Standard use: 2 pound
• Heavy-duty/extreme use: 1 pound
