$80.99
$89.99
Save $9.00 (10%)

Qty

Resources

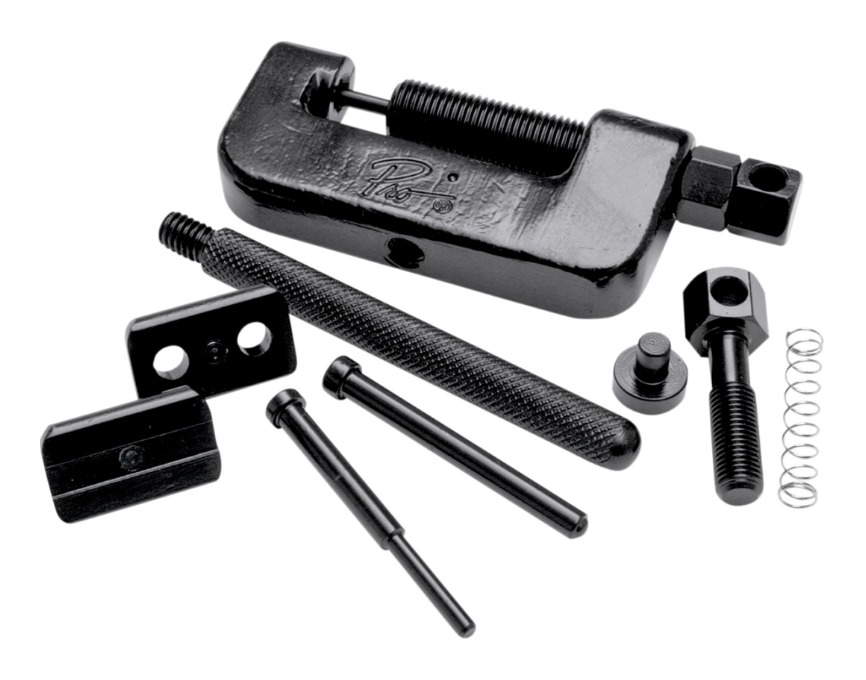

Motion Pro Chain Breaker & Riveting Tool

Features:

  • Designed to rivet chain links to form an endless chain such as cam and drive chains
  • May also be used to push pins out for breaking chains
  • Will break chains from #35 to #530
  • Each kit includes 3 pin sizes to fit most chains (2mm, 3mm, 4mm)
  • Investment-cast, hardened body and redesigned body bolt
  • Recommended for light to medium-duty use
  • For riveting hollow nose master links only
  • Kit includes press plates
3.4 / 5.0
5 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
2
1
0
1
1
Bang for the Buck
2.0 / 5
Would Purchase Again
2.0 / 5
Durability
3.0 / 5
Ease of Use
3.0 / 5
Quality of Material
2.5 / 5
Would you recommend?
Yes (2)
Pricey but worth every penny!
Motion Pro puts out a great chain breaker / riveter. I was never concerned that the tool would break on me it is made so well. It was a pleasure to work with this tool. It may be pricey but you do get what you pay for.

PROS: Very Robust, QUALITY PRODUCT, Ease of Use

CONS: Pricey

May 13, 2009
Good product
I've had this tool for a few years now, and we've installed new chains on my and several friends' bikes. I actually find it easier to grind the heads off the old master link, put a cold chisel between the plates, and tap. The plate will pop right off, and you can just tap the old link out with a punch. It's just more convenient if you're going to grind the heads off anyway.

Where this tool seriously shines in in riveting the new masterlink in place. If someone stole it, I'd buy another in a heartbeat.

I do recommend it to my friends, but they just keep borrowing mine ;)
December 23, 2015
Bang for the Buck
1 / 5
Would Purchase Again
1 / 5
Durability
1 / 5
Ease of Use
1 / 5
Quality of Material
1 / 5
Would you recommend?
Yes
Not worth the "trap of a return policy."
I purchased because I was tired of going to my old man for the tool. Don't bother, the drift pins aren't hardened steel and bend without effort. The fact that the heads aren't tapered to a point allows it to slip off the rivit easily no matter how tight you have the set screw, the set screw isn't properly machined parallel to the backing portion of the tool which causes slippage.

Grabbed my dads 30+ year old chain breaker "MADE IN USA" and had it out in seconds.

And before the moto world blabs user error, I read your special instructions on page four and diagrams on page seven I believe it was and your product is simply poor at best.

Being a journeyman millwright who works on precise machinery I doubt this was a case of user error or disgruntled purchaser.
December 26, 2017
Bang for the Buck
3 / 5
Would Purchase Again
3 / 5
Durability
5 / 5
Ease of Use
5 / 5
Quality of Material
4 / 5
Would you recommend?
Yes
Watch You tube videos for instructions
I have use this tool several times and it works AWESOME !!

Make sure you put GREASE on the threads and it will be smooth and easy to push the pins out .

Dont try to go all at once go 1/2 turn then back off and go again .

The key to breaking large chains is to GRIND the heads off the master link before trying to push the pins out .....

When riveting measure the pin first then only go as large as the other pins on the chain are flared out .

TAKE your time just like when pushing the pins out and go only a 1/2 turn and then back off a bit ,

GREASE is your friend when doing chains , USE IT !!!
January 1, 2017
Happy at first then dissapointed.
I ordered the chain breaker about 2 months ago and due to an injury I couldn't use it until now. I have a 530 chain and as recommended I grinded the rivets down flush with the link. To my dissapointment the rivet is half way out of the link and the biggest pin break off. Stopped my whole job now I cant' ride until I find a cutter. I am satifised with the product but dissapointed with the pin quality.

PROS: Sturdy, Strong

CONS: Brittle pins

March 8, 2011
Start typing your question and we'll check if it was already asked and answered. Learn More
No questions have been asked about this item. Be the first!
Product Style Item # Manufacturer Product # Availability
Motion Pro Chain Breaker & Riveting Tool 173794 08-0058 In Stock: Ships within 24 hours
