High Lifter Alignment Kit Tool with Casters

High Lifter Alignment Kit Tool with Casters

The High Lifter Alignment Kit is an essential solution for addressing issues like uneven tire wear, off-center steering wheels, and steering pull. This kit, crafted from long-lasting steel with a protective black powder coating, facilitates precise camber and toe adjustments for accurate alignment. It is designed to be compatible with aftermarket adjustable control arms, enabling your vehicle to achieve peak performance with proper alignment. The included plates adapt seamlessly to most ATV/UTV hubs and bolt patterns, offering straightforward attachment to the hub and secure lug nut fastening. High Lifter additionally provides an adjustable camber alignment bushing kit specifically for Polaris models equipped with non-adjustable arms, simplifying toe adjustments without the need for extra components. It is recommended to perform an alignment on your vehicle after replacing any suspension parts. The High Lifter Alignment Kit stands as a crucial instrument in the upkeep of ATVs and UTVs.

Features:

• Nylon casters allow for accurate measurements at normal ride height
• Camber and toe alignment issues can be solved with High Lifter’s wheel alignment kit
• Allows for easy and accurate measurements to adjust the vehicles camber and toe

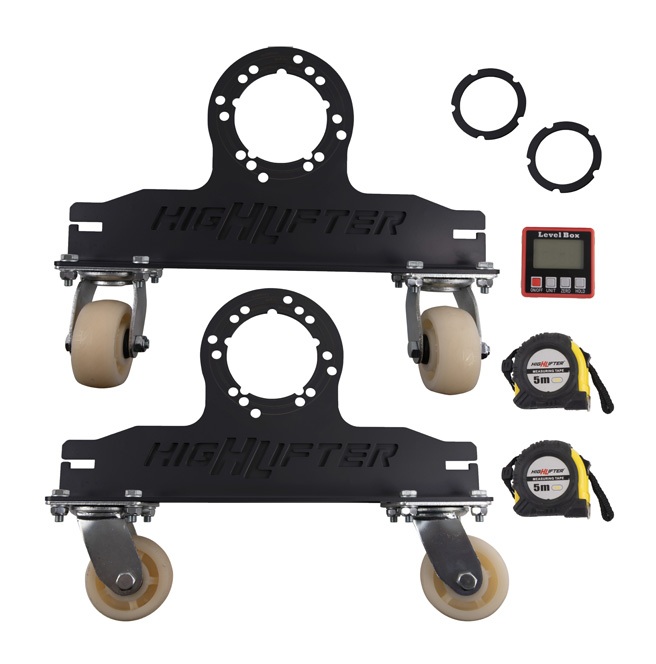

• Includes: 2 alignment plates, 2 tape measures and a digital angle finder, Heavy-duty nylon casters
• Using both tape measures and the High Lifter wheel alignment plate gives the precision to adjust tie rods and move the tires in or out for perfect toe alignment
• High Lifter plates bolt on and measure from the hub, enabling more accurate measurements for toe adjustment
• Alignment plates are made from sturdy steel and are powder-coated to give a durable with an easy clean finish

Camber Measurement:

• Camber measurement is easy using the magnetic, digital angle finder
• The gauge is accurate to 0.1° and can be calibrated for non-level surfaces in seconds
• Has a large LCD for easy reading
• Tool produces a more accurate result than cheap bubble levels
• The angle finder comes with a complete set of instructions, detailing the features and how to use them

Easy to Use:

• 1 - Bolt plates to the hubs on each side, front or rear
• 2 - Measure toe directly using the 2 tape measures included in the kit
• 3 - Measure camber using the magnetic, digital angle finder that is provided in the kit

Benefits:

• Allows for camber/toe alignment changes in a garage or on the trail
• Adjust alignment to suit desired specifications
• Prevents uneven wear pattern on tires
• Corrects offset steering wheel
• Corrects steering pull while driving

Bolt Pattern & Stud Size/Thread Pitch applications:

• Fits all current UTV and most ATV bolt patterns, including 5 and 6 lug
