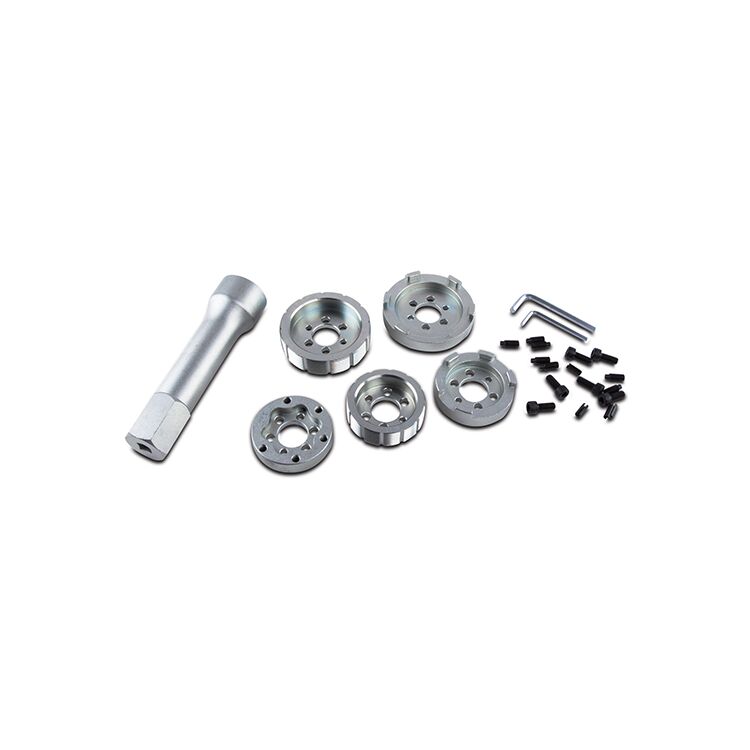

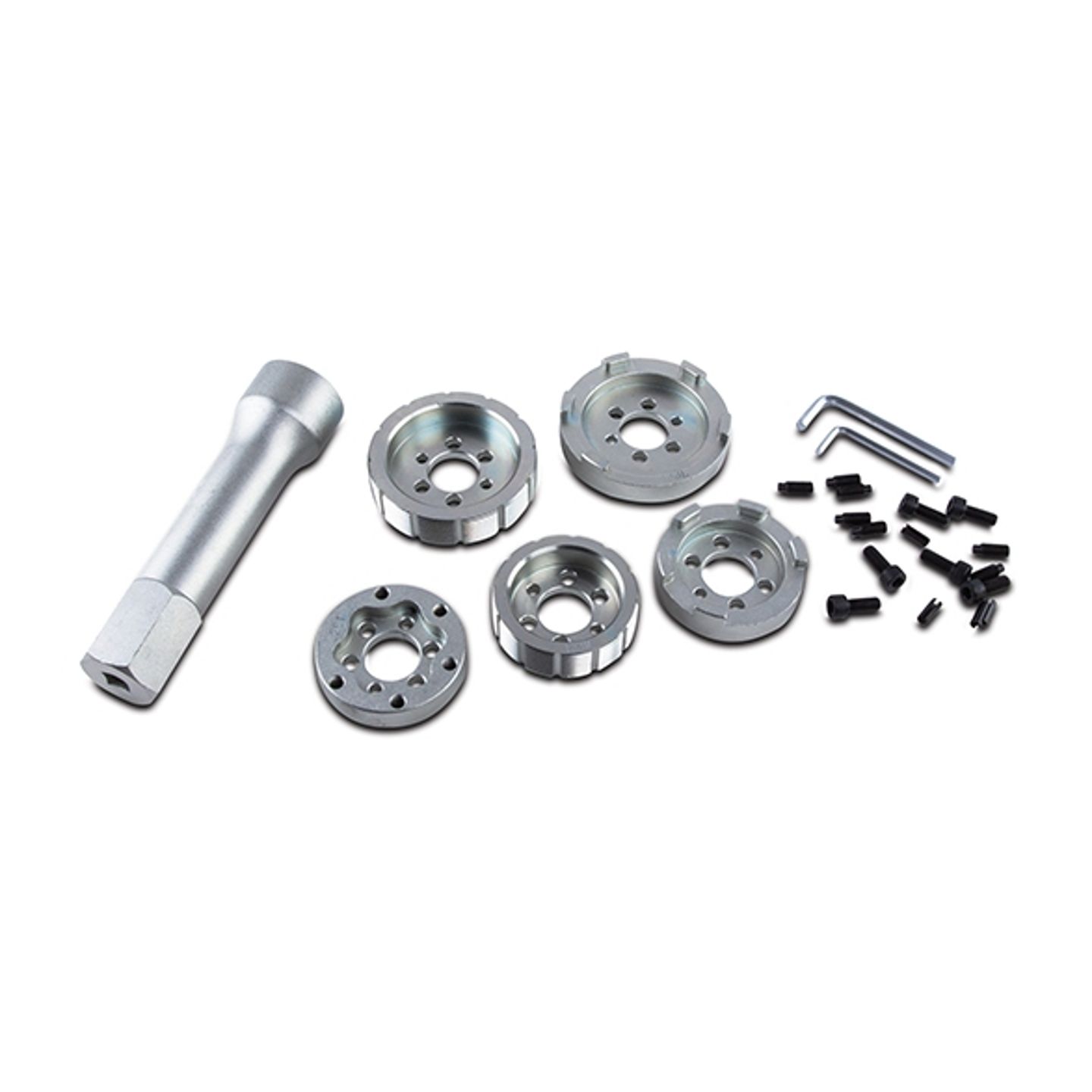

High Lifter Snorkel Gear Transmission Tool For Polaris Transmissions

This tool significantly simplifies the process of loosening the snorkel tube nut, especially when it becomes jammed or adhesive due to debris or metal fragments originating from the transmission. Its design aims to assist users in correctly detaching or securing the snorkel gear tube when undertaking replacements or enhancements to the front output/snorkel shaft and output/snorkel gear within the main gear case. Additionally, it can be utilized to assess the backlash on the output/snorkel gear.

Features:

  • Hardened 5140 alloy steel components with zinc finish.
  • Tool body accepts a 40mm wrench or socket as well as a 1/2in square drive to aid in installation and removal.
  • 3 heads to adapt the tool for different applications. Two heads machined and one with replaceable extended tip set screws.
  • 2 thread cleaning taps to remove chips and burs from transmission case.
  • Components secured with 8mm grade 12.9 bolts.
  • Pins to aid in tool assembly.
  • Installation tools and hardware included with replacement pins and bolts.
  • Main tool has precision pins align the pin slots in the snorkel gear nut
  • Constructed of plain carbon steel, with 5 dowel pins for easy insertion
  • Smooth chrome finish for easy cleaning
  • Additional interchangeable caps that allow the tool to work on multiple transmissions
  • Caps have alignment pins and magnets to lock and secure them to the main tool.  Makes for easy change out!
  • Tool Mates to OEM Part # 3234278, 3236120, 3235947 & 3236423
  • Can be used with a 1/2" square drive ratchet for easy removal or insertion of the snorkel tube

Note: This tool is NOT intended or recommended to be used with an impact wrench

Read More
Product Style Item # Store SKU Manufacturer Product # Availability
Product Style High Lifter Snorkel Gear Transmission Tool For Polaris Transmissions Item # 10341562 Store SKU Manufacturer Product # 54-60872 Availability Available: Ships in 3-5 business days
